DSC-H50_L2
HELP
CK-199 Flexible
Board
Hinge Assy (470)
CK-199 Flexible Board
Adhesive Part
Dowel
Screws
Boss
Cabinet (Rear)
Pass it through this point
of Cabinet (Rear)
Pass it through this point
of Cabinet (Rear)

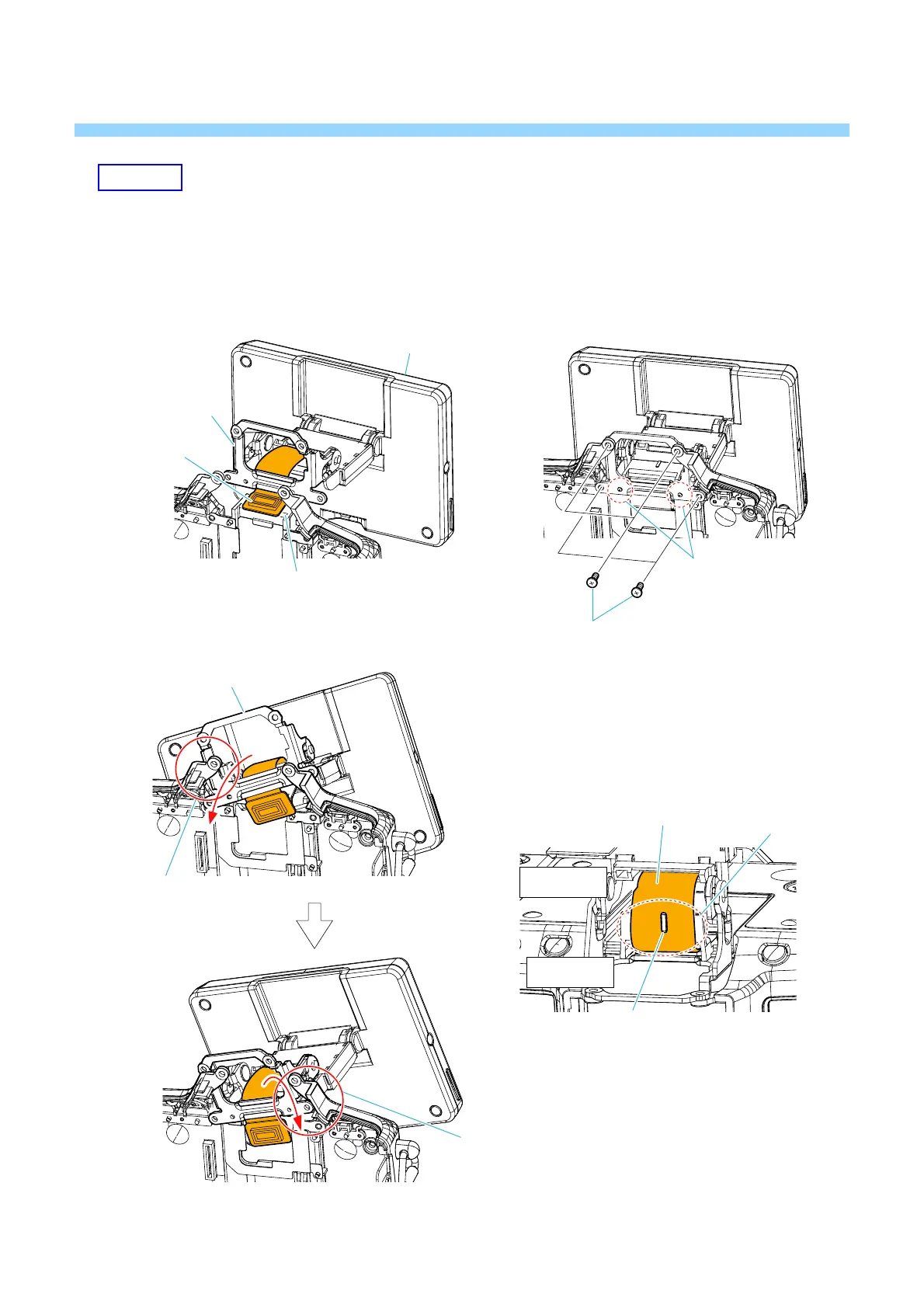

THE METHOD OF INSTALLATION OF LCD BLOCK
HELP10
1
2
3
4
Hinge Assy (470)
LCD Block
Panel Side
Front Side
Pull out CK-199 flexible board from the underneath
of hinge assy (470) and put it on the cabinet (rear).
Insert hinge assy (470) to cabinet (rear) as shown
in the figure.
Position hinge assy to two bosses and secure
it with four screws.
Position CK-199 flexible board to the dowel
and attach it to adhesive portion.
At this time, make the free space to the panel
side and no space to the front side.
To Next Page
