Sony RMT-DSC2 - Overall Section; Hardware List

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-H50_L2
DISASSEMBLY
HARDWARE LIST

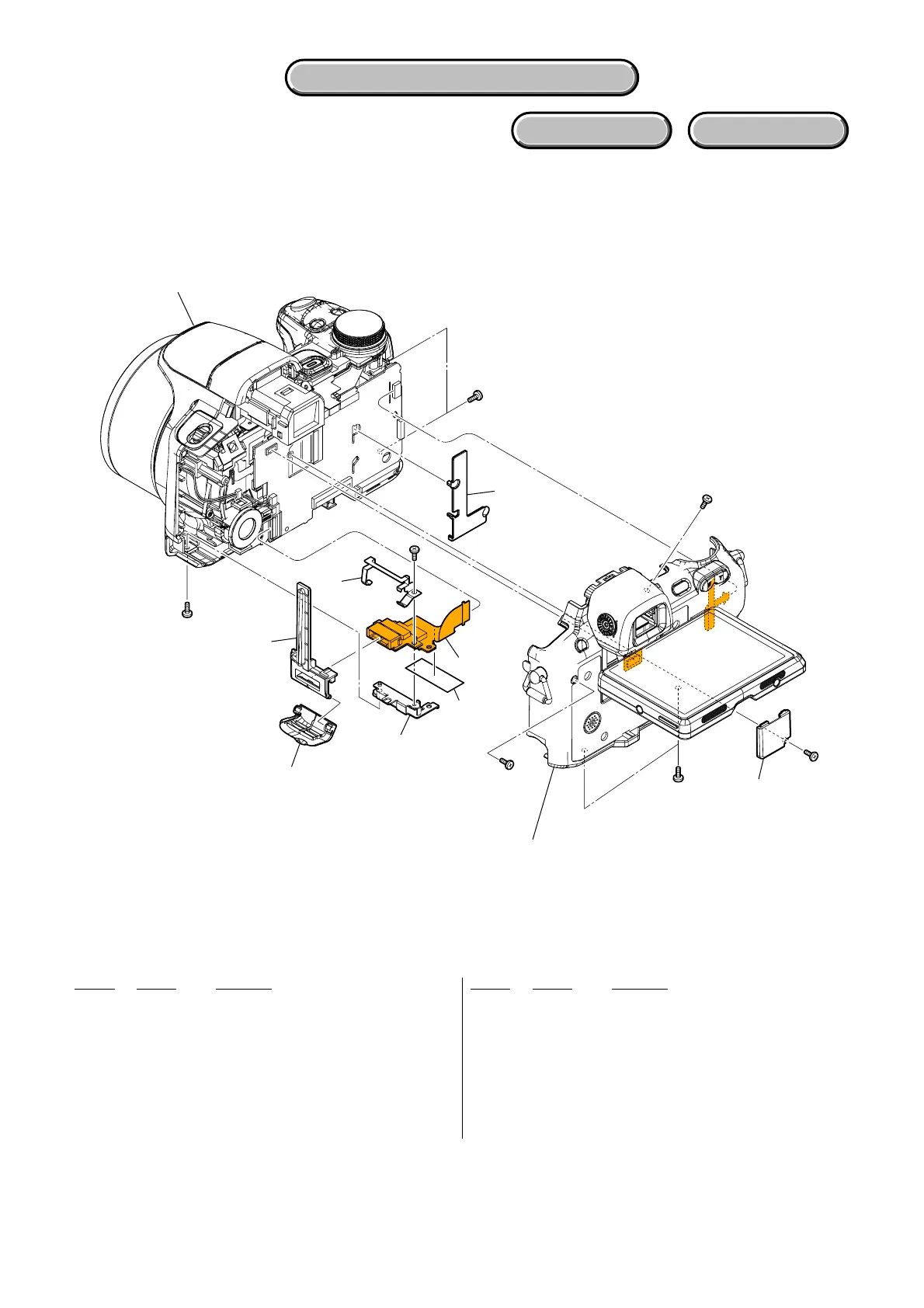

5-1-1. OVERALL SECTION
ns: not supplied
5-1. EXPLODED VIEWS
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-452-720-01 LID, MULTI (BLACK)
1 3-452-720-11 LID, MULTI (SILVER)
2 3-452-721-01 CABINET (R), SIDE (BLACK)
2 3-452-721-11 CABINET (R), SIDE (SILVER)
* 3 3-452-723-01 SPRING, MULTI LID CLICK
4 A-1519-825-A JK-371 FLEXIBLE BOARD, COMPLETE
5 3-080-272-01 TAPE (A)
* 6 3-452-722-01 PLATE, MULTI FIXED
7 3-452-729-01 DRIVING, SY MECHANICAL (BLACK)
7 3-452-729-11 DRIVING, SY MECHANICAL (SILVER)
#2 2-635-562-31 SCREW (M1.7) (Black)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#76 2-666-551-11 SCREW, TAPPING, P2 (Silver)
#10
#2
#2
#2
#10
#10
#10
#10
#2
#2
3
#7
6
#76
ns
#23
Front panel section-1
(See page 5-3)
Cabinet (rear) section
(See page 5-6)
1
6
5
4
2
3
7
