Sony RMT-V259 - SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS; Waveforms - IC260

4-8

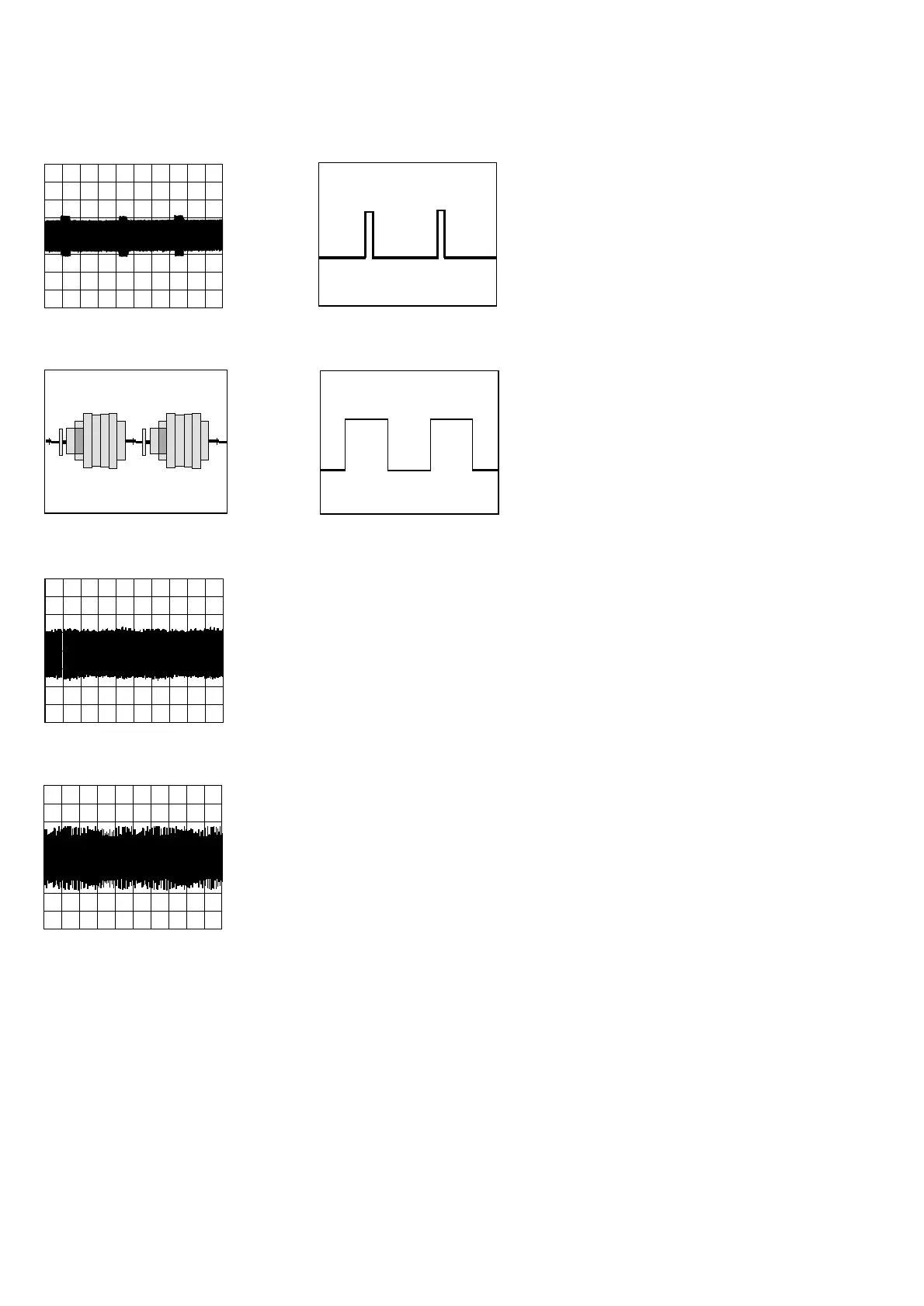

• Waveforms
1 IC260 qj REC
3.8 Vp-p (H)
2 IC260 q; REC
280 mVp-p (H)
3 IC260 9 REC/PB
REC : 170 mVp-p (H)
PB : 120 mVp-p (H)
4 IC260 7 PB
700 mVp-p (H)
5 IC260 5 REC/PB
3.6 Vp-p (H)
6 IC260 4 REC/PB
3.8 Vp-p (2 V)
