Sony SA-CT290 - Section 6: Exploded Views; Overall Section Exploded View

35
HT-CT290/CT291
SECTION 6
EXPLODED VIEWS
1 4-685-626-01 FOOT (CG-BAR)
2 4-591-760-01 TPP + 3X10 (HR) - 3W ZN (for Black model)
2 4-591-760-11 TPP + 3X10 (HR) - 3W ZN (for White model)
3 4-685-627-01 COVER, SCREW (CG-BAR) (for Black model)
3 4-685-627-11 COVER, SCREW (CG-BAR) (for White model)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
EA : Saudi Arabia model
LA9 : Latin-American model
RU : Russian Model
SP : Singapore model
TH : Thai model

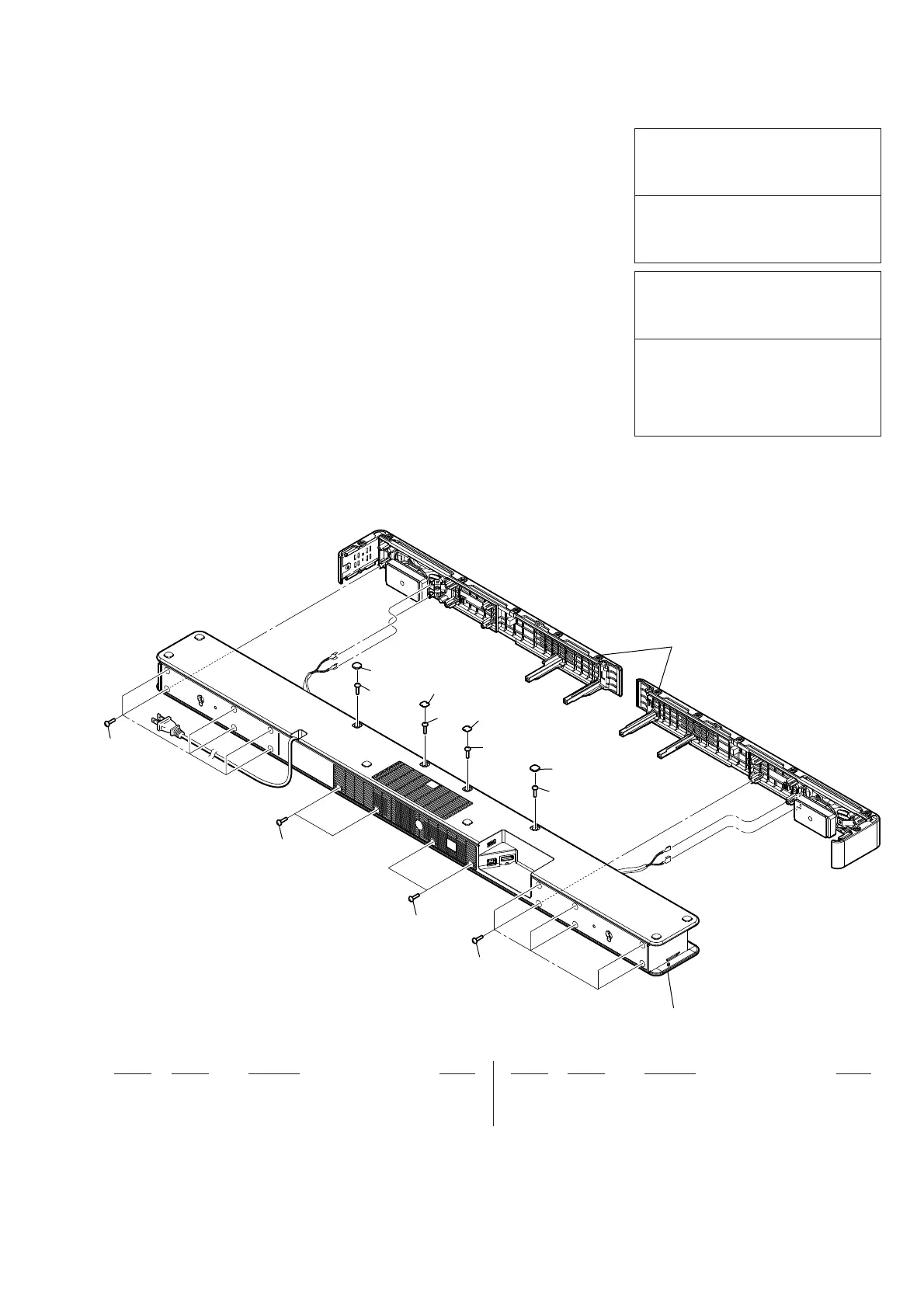

6-1. OVERALL SECTION
• Bottom view
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
panel section
CABINET ASSY section
2
2
2
2
2
2
2
2
1
3
3
1
