HT-CT290/CT291
40
< IC >
IC4001 6-722-496-01 IC CY8CMBR3108-LQXIT
IC4002 6-713-333-01 IC PST8429UL
< JUMPER CHIP >
JC4001 1-216-864-91 SHORT CHIP 0
< RESISTOR >
R4005 1-218-950-11 METAL CHIP 560 5% 1/16W
R4007 1-218-950-11 METAL CHIP 560 5% 1/16W
R4008 1-218-950-11 METAL CHIP 560 5% 1/16W
R4009 1-218-950-11 METAL CHIP 560 5% 1/16W
R4010 1-218-950-11 METAL CHIP 560 5% 1/16W
*************************************************************
A-2143-281-A USB BOARD, COMPLETE
********************
< CONNECTOR >
CN7010 1-785-470-51 CONNECTOR, FFC/FPC 7P
CN7011 1-843-576-11 USB CONNECTOR (
5 V 1 A)
*************************************************************
MISCELLANEOUS
**************
55 1-859-199-11 LOUDSPEAKER (35*93MM)
102 A-2184-029-A DISPLAY ASSY (SERVICE) BLACK
(Including PANEL board) (for Black model)
102 A-2184-030-A DISPLAY ASSY (SERVICE) WHITE
(Including P
ANEL board) (for White model)
103 1-849-565-11 WIRE (FLAT TYPE) (6 CORE)
0
110 1-834-966-42 POWER-SUPPLY CORD (AEP, RU, E3, SP, LA9)
0 110 1-835-068-21 CORD, POWER (AUS)
0 110 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 110 1-839-940-22 POWER-SUPPLY CORD (TH)
0 110 1-839-999-22 POWER-SUPPLY CORD (UK, EA)
0 110 1-848-053-12 POWER-SUPPLY CORD (E12)
111 A-2184-031-A CABINET ASSY (SERVICE) B (V2)
(for Black model) (CT290: US, CND)
111 A-2184-032-A CABINET ASSY (SERVICE) B (HB)
(for Black model) (CT290: EXCEPT US, CND)
111 A-2184-034-A CABINET ASSY (SERVICE) W (HB)
(for White model)
151 1-828-219-61 WIRE (FLAT TYPE) (18 CORE)
152 1-493-097-31 BLUETOOTH MODULE
153 1-829-279-61 WIRE (FLAT TYPE) (7 CORE)
155 1-849-564-11 WIRE (FLAT TYPE) (16 CORE)
0 157 1-474-674-11 SWITCHING REGULATOR 3L411W
(EXCEPT US, CND, E12)
0 157 1-474-674-21 SWITCHING REGULATOR 3L411W-1 (E12)
0 157 1-474-674-31 SWITCHING REGULATOR 3L411L (US, CND)
*************************************************************
ACCESSORIES
************
4-688-252-12 MANUAL, INSTRUCTION
(ENGLISH (US), CANADIAN FRENCH, SPANISH)
(US, CND)
4-688-252-21 MANUAL, INSTRUCTION
(ENGLISH) (UK, E3, SP, AUS, E12)
4-688-252-31 MANUAL, INSTRUCTION
(FRENCH, SPANISH, GERMAN, DUTCH,
ITALIAN, POLISH) (AEP)
4-688-252-41 MANUAL, INSTRUCTION
(TRADITIONAL
CHINESE) (SP)
4-688-252-51 MANUAL, INSTRUCTION
(RUSSIAN, UKRAINIAN) (RU)
4-688-252-61 MANUAL, INSTRUCTION
(FRENCH, ARABIC, PERSIAN) (E3)
4-688-252-71 MANUAL, INSTRUCTION (SPANISH) (LA9)
4-694-092-11 MANUAL, INSTRUCTION
(ENGLISH, ARABIC) (EA)
4-694-092-21 MANUAL, INSTRUCTION (THAI) (TH)
501 1-493-279-11 REMOTE COMMANDER RMT-AH300U
(Remote control)
502 1-848-225-21 CABLE, LIGHT PLUG (Optical digital cable)
503 X-2594-857-1 FOOT (SW) (4 pieces, 1 set)
(Including BAG, POLYETHYLENE) (for SERVICE)
(Speaker pads for the subwoofer horizontally)
0 504 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA9)

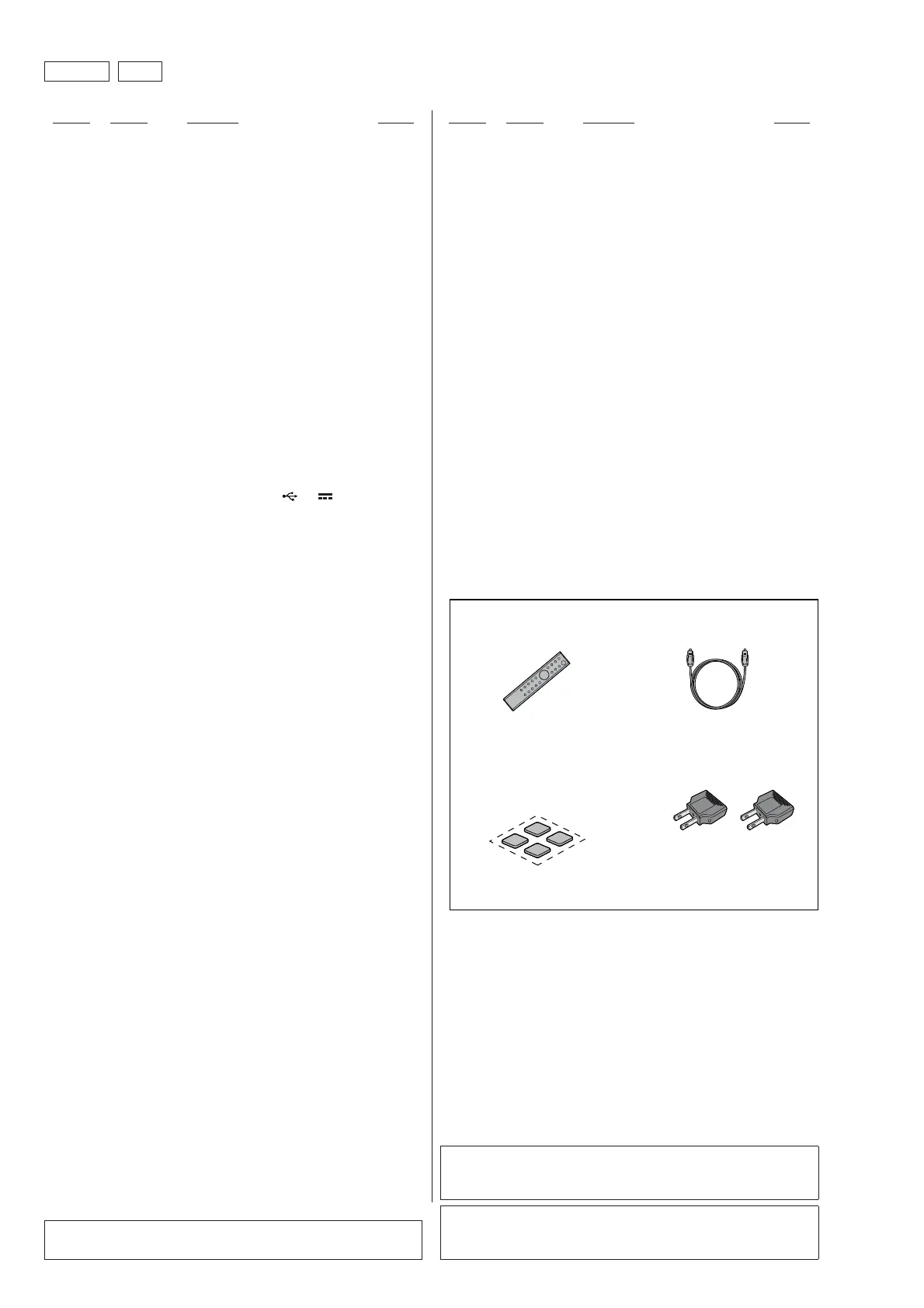

501 Remote control (1)
502 Optical digital cable (1)
503 Speaker pads for the
subwoofer (for horizontally) (4)
504 AC plug adaptor* (2) (LA9)
The adaptor is not use in Chile,
Uruguay and Paraguay. Use the
adaptor in the countries where it
is neccessary.
*
Note 1: If wire (fl at type) is replaced, install it after bending it in
the same form as that before replacement.
Note 3: When the SWITCHING REGULATOR board is replaced,
spread the bond referring to “BOND FIXATION OF
ELECTRIC PARTS” on page 6.
Note 2: When the BLUETOOTH module is replaced, refer to
“NOTES ON THE WIRELESS CONNECTION (LINK)
AFTER REPAIRS ARE COMPLETE” on page 5.
