Sony SA-CT381 - BLUETOOTH MODULE (BT1)

HT-CT380/CT381
19

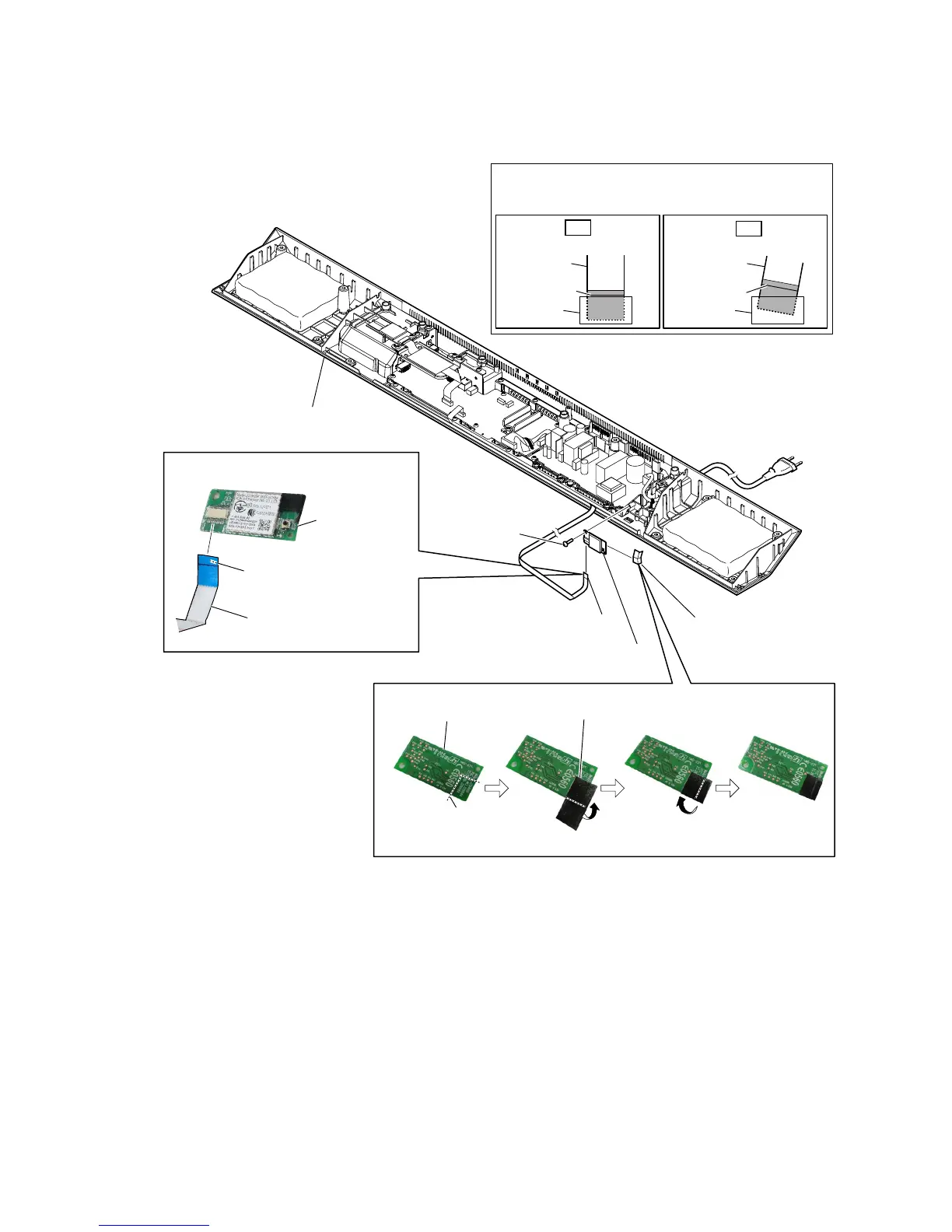

2-13. BLUETOOTH MODULE (BT1)
1 screw
(BVTP2.6)
4 bluetooth module
(BT1)
2 flexible flat cable (14 core)
(FFC1)
3 non woven fabric (T0.3)
bluetooth module
(BT1)
non woven fabric
(T0.3)
guide line
– Bluetooth module rear view –
 ,QVtallatioQ SoVitioQ oI the QoQ woveQ IaEriF 7
 )le[iEle Ilat FaEle ))& VettiQJ
bluetooth module
(BT1)
flexible flat cable
(14 core) (FFC1)
Terminal face is
below side.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
 +ow to iQVtall the Ile[iEle Ilat FaEle
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
cabinet (bottom) block
