Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HT-CT380/CT381
70
0 T901 1-697-327-11 CONVERTER TRANSFORMER (01C313)
(US, CND)
< THERMISTOR >
0 TH901 1-811-315-31 POWER THERMISTOR (See Note 1)
0 TH902 1-812-011-11 THERMISTOR, POSITIVE (Except US, CND)
< VARISTOR >
0 VDR901 1-811-165-31 VARISTOR (TVR10471-D) (See Note 1)
*************************************************************
MISCELLANEOUS
**************
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP, E3, SP, PX)
0 AC1 1-835-068-21 CORD, POWER (AUS)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-839-999-21 POWER-SUPPLY CORD (UK, EA3)
0 ACP1 1-569-008-33 ADAPTOR, CONVERSION (PX)
0 ACP2 1-770-019-72 ADAPTOR, CONVERSION PLUG 3P (SV)
(SP for Hong Kong only) (See Note 2)
BT1 1-490-558-92 BLUETOOTH MODULE
FFC1 1-970-611-11 WIRE KIT (BAR FFC) (14P) (See Note 3)
FFC2 1-970-611-11 WIRE KIT (BAR FFC) (24P) (See Note 3)
FFC3 1-970-611-11 WIRE KIT (BAR FFC) (18P) (See Note 3)
FFC4 1-970-611-11 WIRE KIT (BAR FFC) (6P) (See Note 3)
NFC1 8-989-602-00 RC-S730 (WW) (NFC module)
RF1 1-492-347-11 RF MODULATOR (SWA12-4V TX) (See Note 4)
SP1 1-859-120-11 LOUDSPEAKER (6 cm) (L-ch)
SP2 1-859-120-11 LOUDSPEAKER (6 cm) (R-ch)
SPC1 1-848-866-11 CONNECTION CABLE WITH SPEAKER (L-ch)
SPC2 1-848-866-21 CONNECTION CABLE WITH SPEAKER (R-ch)
*************************************************************
Note 1: When TH901 and VDR901 on the POWER board are
replaced, refer to “BOND FIXATION OF ELECTRIC
PARTS” on page 6.
Note 3: As for WIRE KIT (BAR FFC), all fl at fl exible cables (Ref.
No. FFC1, FFC2, FFC3, FFC4) will be 1 set.

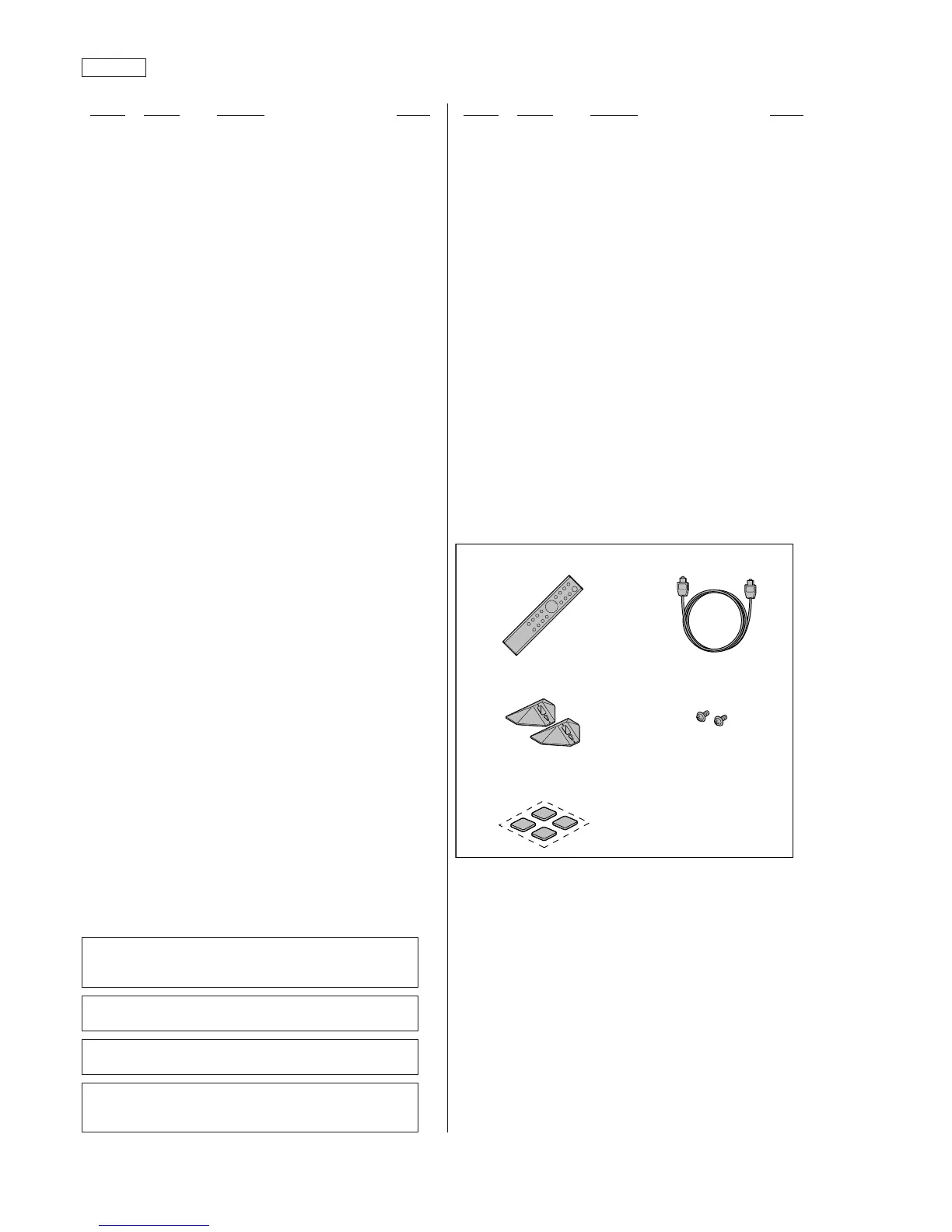

501 Remote control (1) 502 Optical digital cable (1)
503 Wall mounting brackets (2) 504 Screws (2)
505 Speaker pads for the subwoofer
(for horizontally) (4)
ACCESSORIES
************
4-565-123-12 MANUAL, INSTRUCTION
(ENGLISH, SPANISH, FRENCH) (US, CND)
4-565-123-22 MANUAL, INSTRUCTION (ENGLISH) (UK, AUS)
4-565-123-32 MANUAL, INSTRUCTION
(FRENCH, SPANISH, DUTCH) (AEP)
4-565-123-42 MANUAL, INSTRUCTION
(GERMAN, ITALIAN, POLISH) (AEP)
4-565-123-52 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
ARABIC, PERSIAN) (E3, EA3)
4-565-123-62 MANUAL, INSTRUCTION
(ENGLISH, TRADITIONAL CHINESE) (SP)
4-565-123-72 MANUAL, INSTRUCTION (ENGLISH) (PX)
501 1-492-931-12 REMOTE COMMANDER RMT-AH101U
(Remote control)
502 1-837-197-31 CORD, LIGHT PLUG (Optical digital cable)
503 4-549-758-01 HOLDER (WALL-CZ2) (1 piece)
(Wall mounting bracket) (CT380)
503 4-549-758-11 HOLDER (WALL-CZ2) (1 piece)
(Wall mounting bracket) (CT381)
504 2-580-607-01 SCREW, +PSW M5X12 (1 piece)
(for Wall mounting bracket)
505 2-682-469-11 FOOT (SW) (4 pieces, 1 set)
(Speaker pads for the subwoofer horizontally)
Note 4: When the RF modulator (Ref. No. RF1) is replaced, refer
to “NOTES ON THE WIRELESS CONNECTION (LINK)
AFTER REPAIRS ARE COMPLETE” on page 5.
POWER
Ver. 1.1
Note 2: Ref. No. ACP2 is a service part used only for the Singapore
model sold in Hong Kong.
To Next Page
