SA-TS22W
SECTION 3
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND : Canadian model
E41 : 230 V AC Area in E model
HK : Hong Kong model
KR : Korea model
MX : Mexican model
SP : Singapore model
TW : Taiwan model
Ref. No. Part No. Description Remark

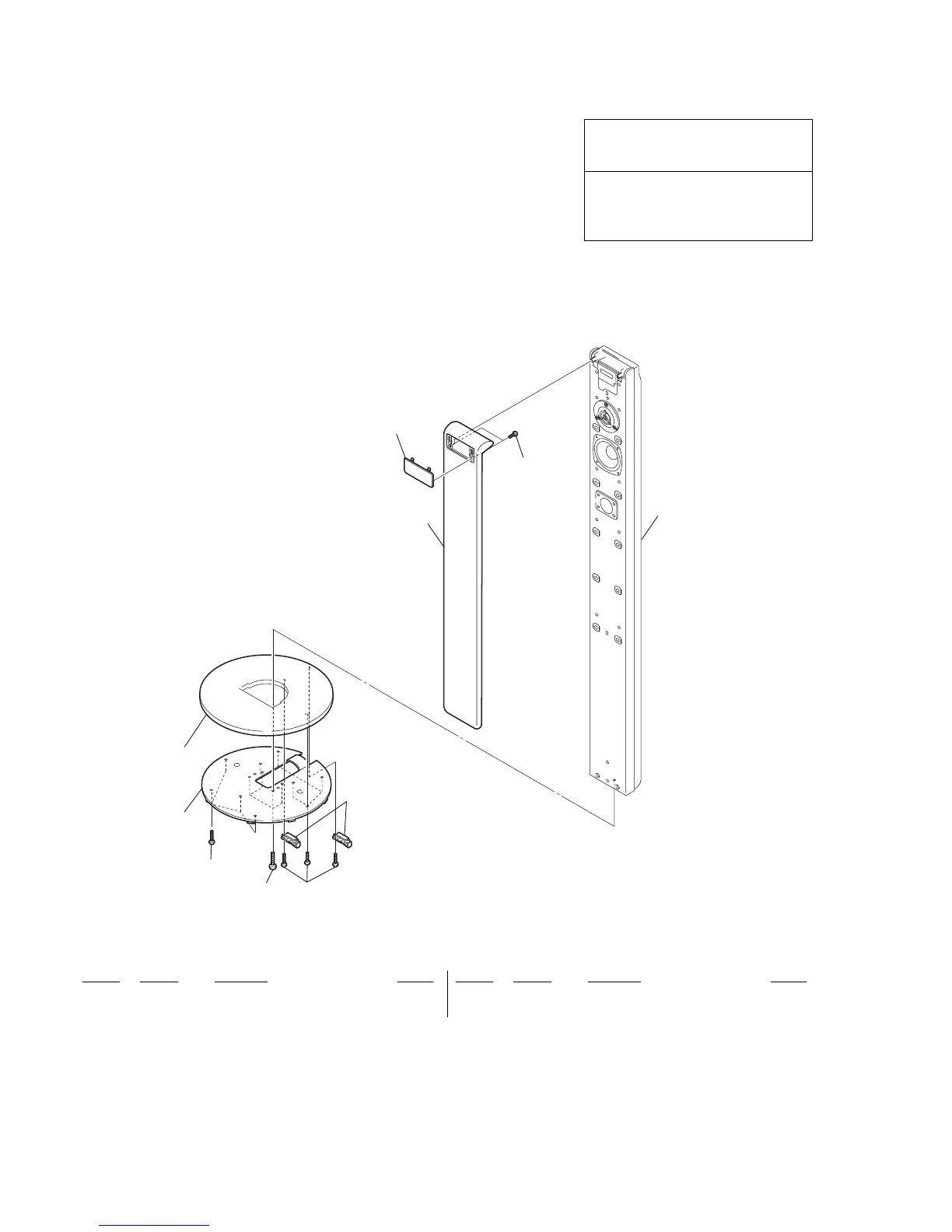

3-1. BASE COVER SECTION
Ref. No. Part No. Description Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
12
1
3
4
not
supplied
not
supplied
not
supplied
Cabinet section
not
supplied
1 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2
2 2-067-934-01 SCREW +BV M4X16
3 2-109-042-01 FRAME (WL), GRILLE
4 4-218-253-62 SCREW (M2.6), +BTTP
