Sony SA-VE812ED - Page 5

SA-VE812ED/VE815ED/WMS815/SS-MS815
55

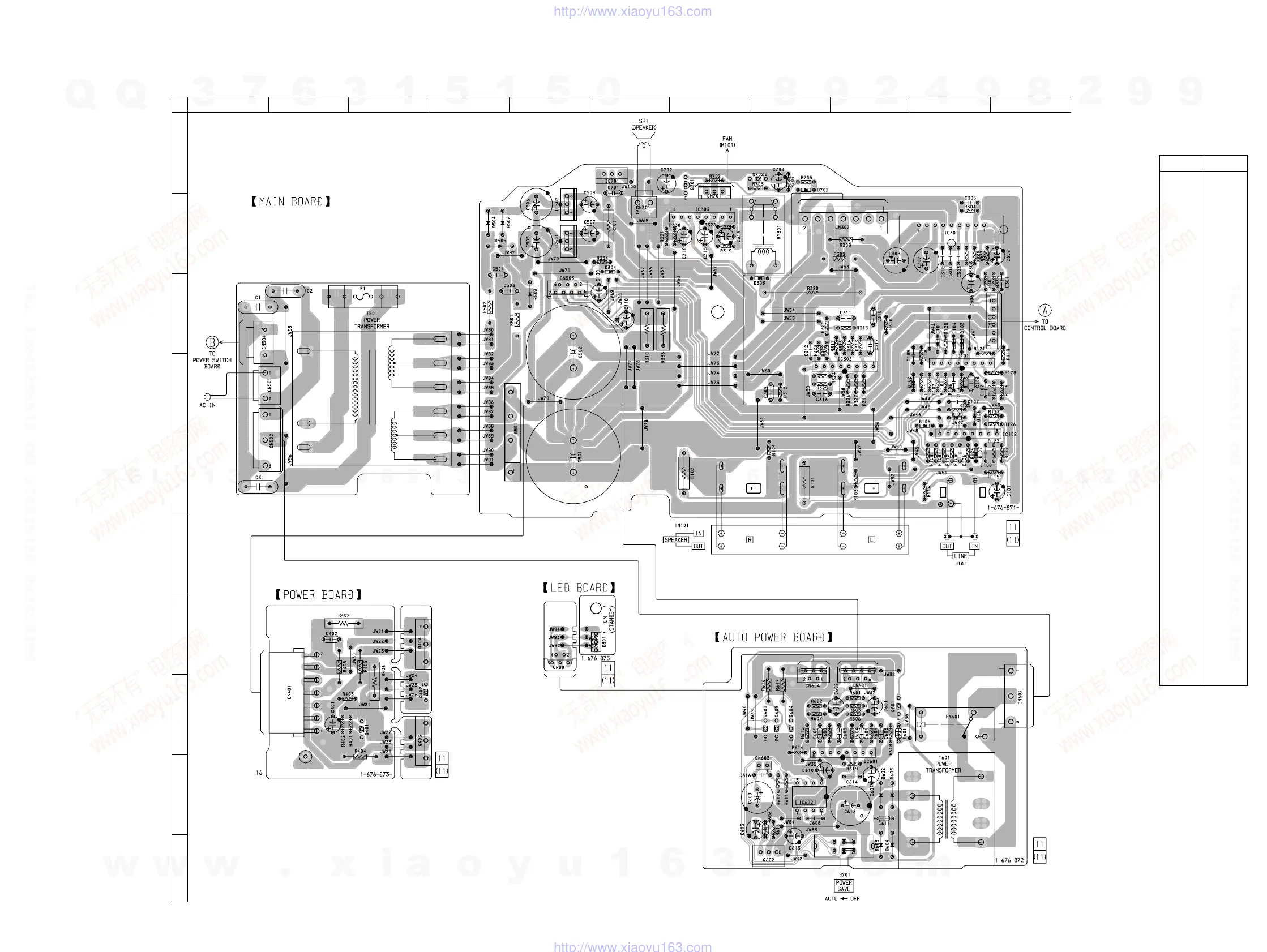

2-3. PRINTED WIRING BOARD MAIN SECTION • See page 3 for Circuit Boards Location.
Ref. No. Location
D101 C-10
D102 D-10
D103 C-10
D104 C-10
D105 D-10
D106 D-10
D107 E-10
D108 D-10
D303 B-8
D304 C-6
D501 E-5
D503 C-5
D504 B-4
D505 B-4
D506 B-4
D601 H-9
D602 I-9
D603 J-9
D604 J-9
D605 I-9
D606 I-8
D702 A-8
D801 G-6
IC101 C-10
IC102 D-11
IC301 B-10
IC302 D-9
IC303 B-7
IC501 B-5
IC502 B-5
IC601 I-9
IC602 I-8
IC701 A-6
Q401 H-3
Q402 H-4
Q403 H-4
Q404 G-4
Q601 H-9
Q602 J-8
Q603 H-8
Q604 H-8
Q605 H-8
Q701 A-7
Q702 A-8
• Semiconductor
Location
12
A
B
C
D
E
F
G
H
I
J
34567891011
