SA-VE812ED/VE815ED/WMS815/SS-MS815
66

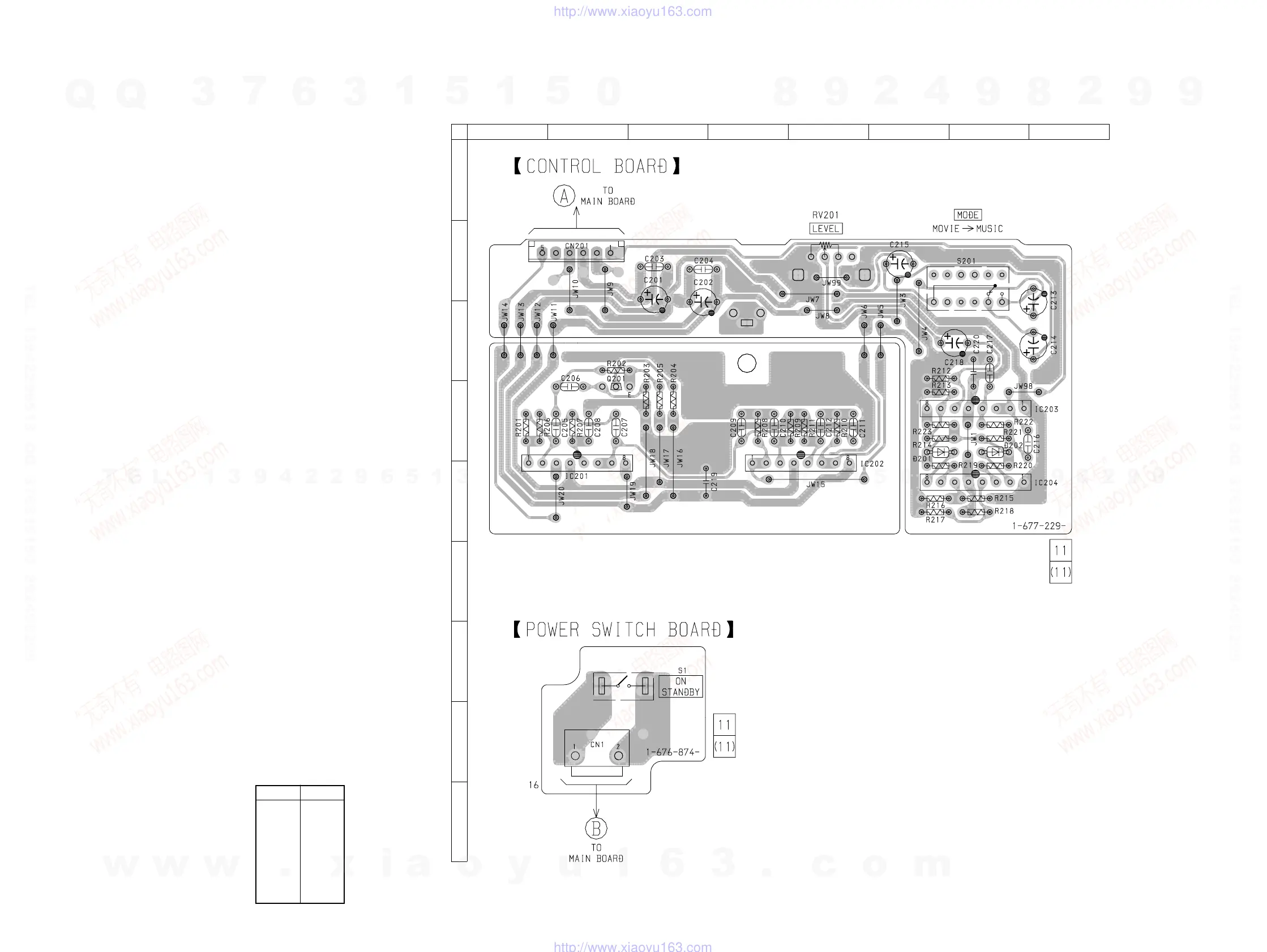

2-4. PRINTED WIRING BOARD CONTROL SECTION • See page 3 for Circuit Boards Location. • See page 4 for Schematic Diagram.
Ref. No. Location
D201 E-6
D202 D-7
IC201 E-2
IC202 E-6
IC203 D-8
IC204 E-8
Q201 D-2
• Semiconductor
Location
12
A
B
C
D
E
F
G
H
I
345678
