Sony SA-WMS315 - PRINTED WIRING BOARD; SA-WMS315

SA-VE312/VE315/WMS315/SS-CN315/V315
55

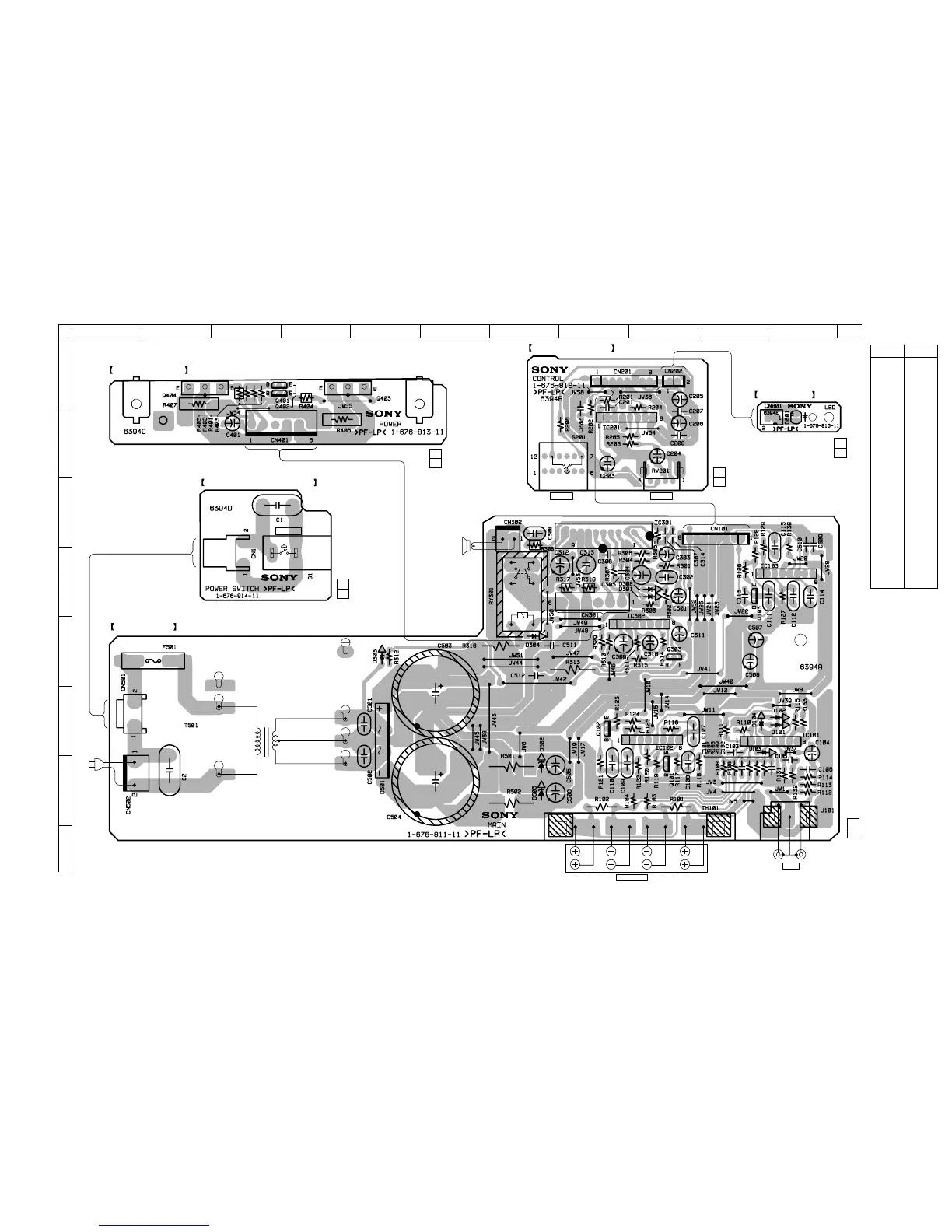

1-3. PRINTED WIRING BOARD (SA-WMS315)
• See page 3 for Circuit Boards Location.
Ref. No. Location
D101 F-11
D102 F-11
D103 F-11
D104 F-11
D301 D-8
D302 D-8
D303 E-5
D304 E-7
D501 G-5
D502 F-7
D503 G-7
D801 B-11
IC101 F-11
IC102 F-9
IC103 D-11
IC201 B-8
IC301 C-9
IC302 D-9
Q101 G-9
Q102 F-8
Q103 D-10
Q303 E-9
Q401 A-3
Q402 A-3
Q403 A-5
Q404 A-2
• Semiconductor
Location
11
(11)
11
(11)
11
(11)
11
(11)
11
(11)
POWER SWITCH BOARD
POWER BOARD
CONTROL BOARD
LED BOARD
MAIN BOARD
POWER
SPEAKER
LEVEL
MODE
LINE
T501
POWER
TRANSFORMER
R
L
OUT IN
ON : MUSYC
OFF: MOVIE
(POWER)
SP1
(SPEAKER)
AC
IN
12
A
B
C
D
E
F
G
H
3456789101112
