Sony SA-WMS5 - Amplifier Section (SA-WMS5)

– 13 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

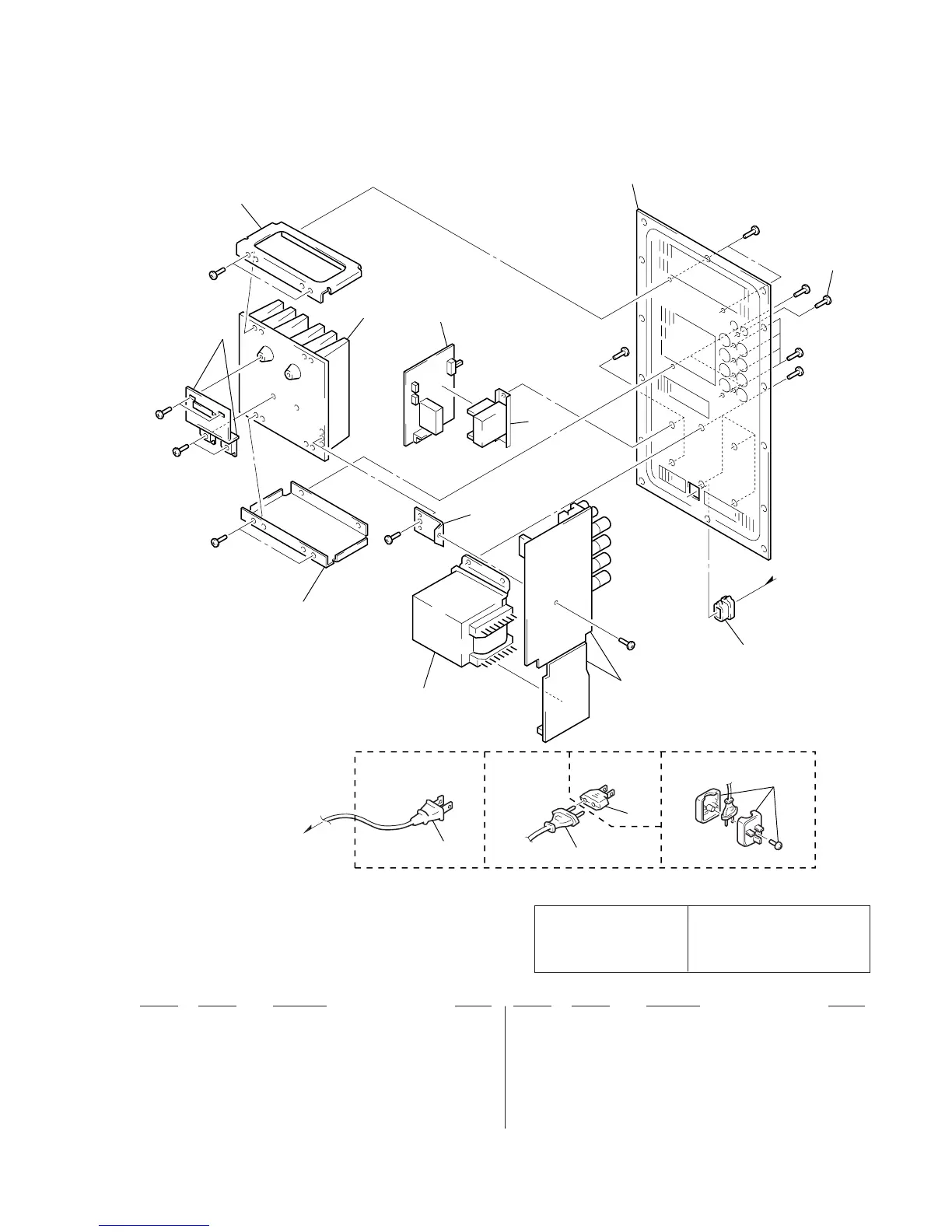

(2) AMPLIFIER SECTION
(SA-WMS5)
51 1-673-147-11 POWER BOARD
52 A-4419-290-A AUTO POWER BOARD, COMPLETE
53 4-217-294-01 PANEL, REAR
54 A-4419-286-A MAIN BOARD, COMPLETE
* 55 3-703-244-00 BUSHING (2104), CORD
! 56 1-769-744-11 CORD, POWER (AEP, UK, G, MY, SP)
! 56 1-783-531-11 CORD, POWER (US, CND)
! 57 1-569-008-21 ADAPTOR, CONVERSION 2P (SP)
! 58 1-770-019-21 ADAPTOR, CONVERSION PLUG 3P (UK)
59 3-710-901-11 SCREW, TAPPING
! T501 1-433-726-11 TRANSFORMER, POWER (US, CND)
! T501 1-433-728-11 TRANSFORMER, POWER (EXCEPT US, CND)
! T601 1-433-731-11 TRANSFORMER, POWER (US, CND)
! T601 1-433-732-11 TRANSFORMER, POWER (EXCEPT US, CND)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
56
US, CND AEP, UK, G,
SP, MY
SP UK
54
55
56
57
58
T501
B
B
#6
#4
#4
#4
#4
#4
#4
#6
#6
#5
#5
T601
53
59
52
51
not
supplied
not supplied
not supplied
not
supplied
