Sony SA-WMS5 - SECTION 3 EXPLODED VIEWS; Front Panel Section (SA-WMS5)

– 12 –

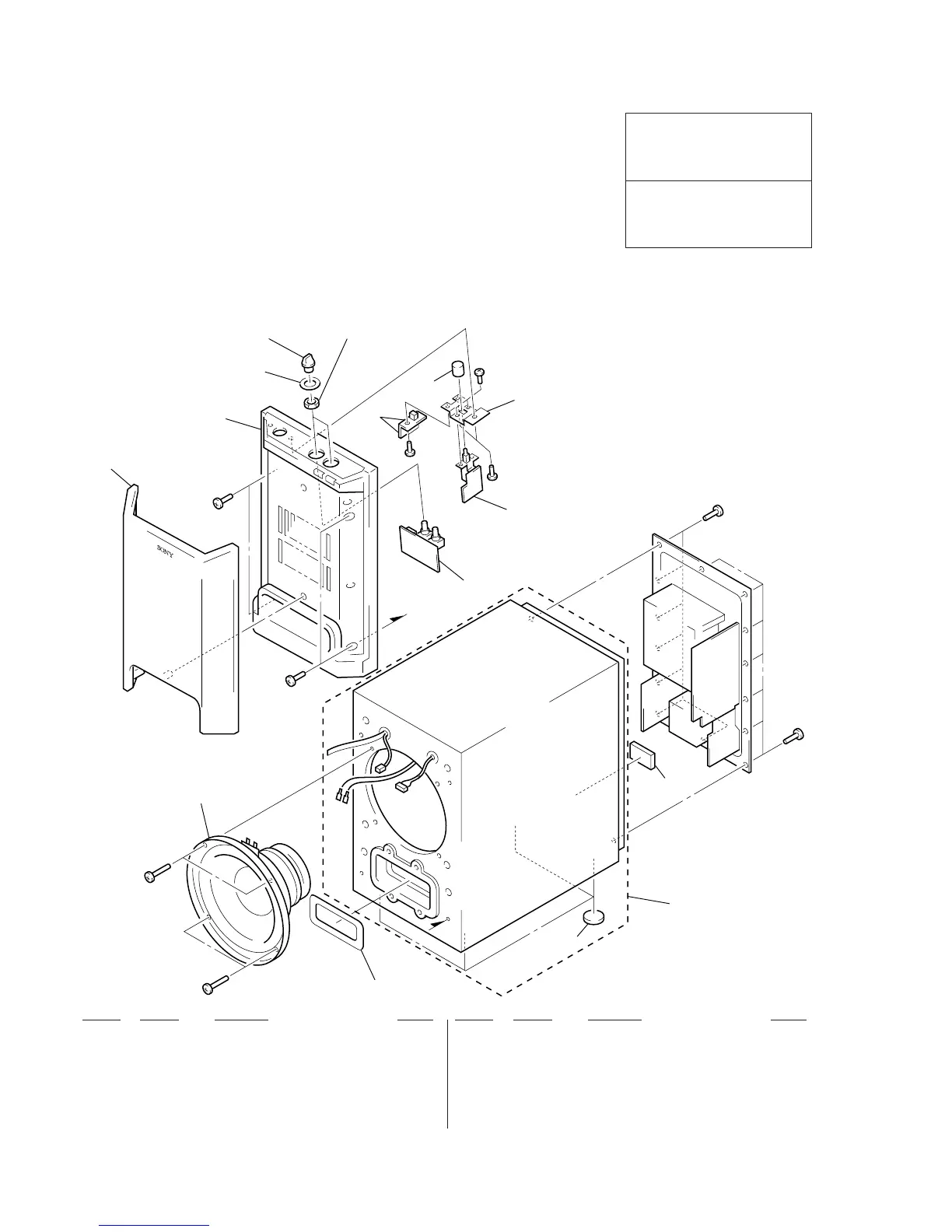

(1) FRONT PANEL SECTION
(SA-WMS5)
SECTION 3
EXPLODED VIEWS
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4951-099-1 FRAME ASSY, GRILLE
2 X-4951-100-1 PANEL ASSY, FRONT
3 1-673-150-11 LED BOARD
4 1-673-149-11 POWER SWITCH BOARD
5 1-673-146-11 CONTROL BOARD
6 4-217-284-01 PACKING
7 A-4411-447-A CABINET ASSY, SPEAKER
8 4-981-864-01 FOOT
9 4-217-642-01 SHEET
10 4-999-482-21 KNOB (VOL)
11 4-973-938-41 KNOB (A), PUSH
SP1 1-529-296-11 SPEAKER (20cm)
• Abbreviation
CND : Canadian model
G : German model
1
2
3
4
9
10
11
supplied with
RV201, S201
not supplied
not supplied
#1
#9
#9
#8
#8
#10
#10
#2
#3
5
SP1
6
8
7
A
A
MY : Malaysia model
SP : Singapore model
