SA-WMSP2/WMSP4

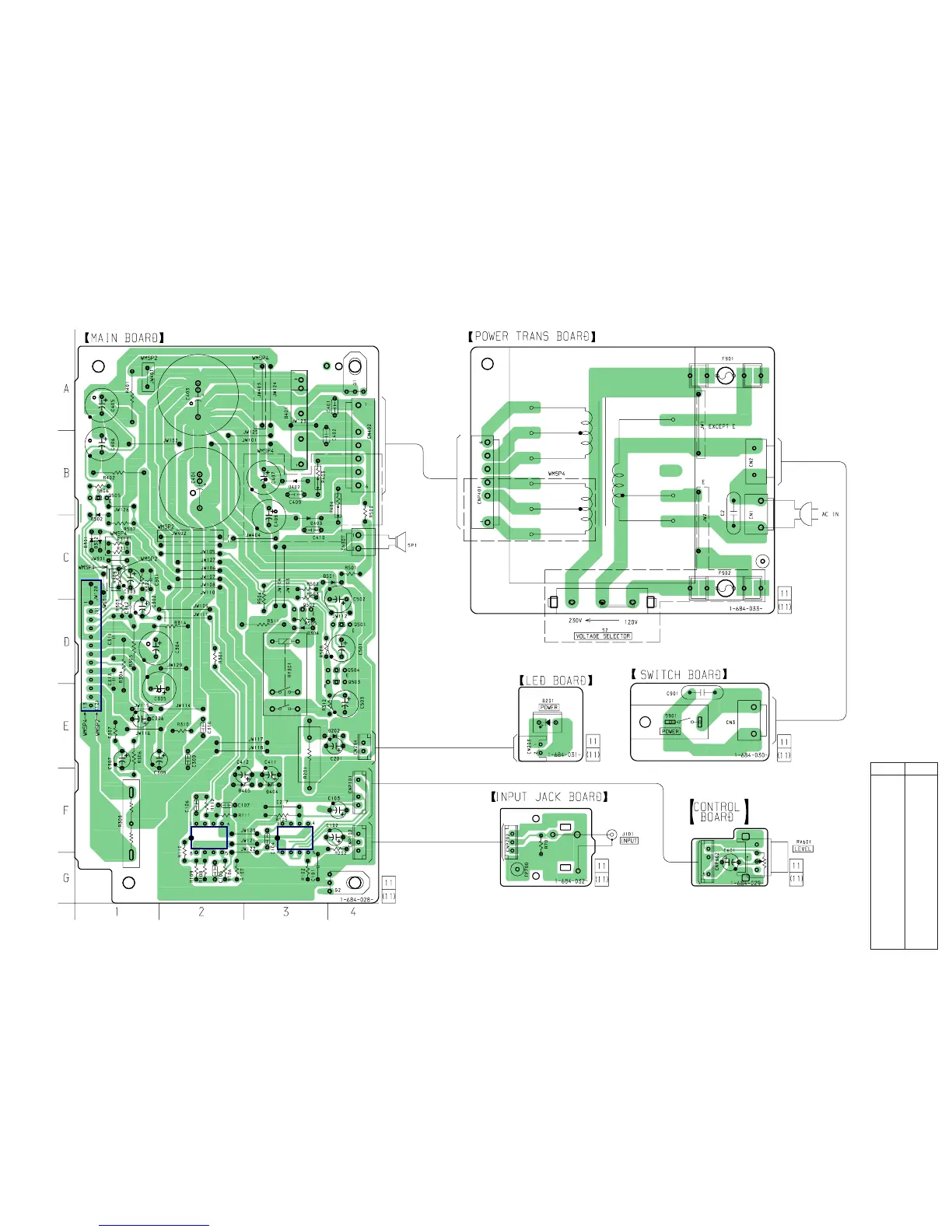

1-1. Printed Wiring Boards
IC301
IC202
IC101
T1
POWER TRANSFORMER
Ref. No. Location
D202 E-4
D301 C-1
D302 C-1
D304 D-3
D401 A-3
D402 B-3
D403 C-3
D404 F-3
D405 F-2
D501 C-4
D502 B-1
IC101 F-3
IC202 F-2
IC301 D-1
Q501 D-4
Q502 D-3
Q503 D-4
Q504 D-4
Q505 B-1
• Semiconductor
Location
• See page 3 for Circuit Boards Location.
