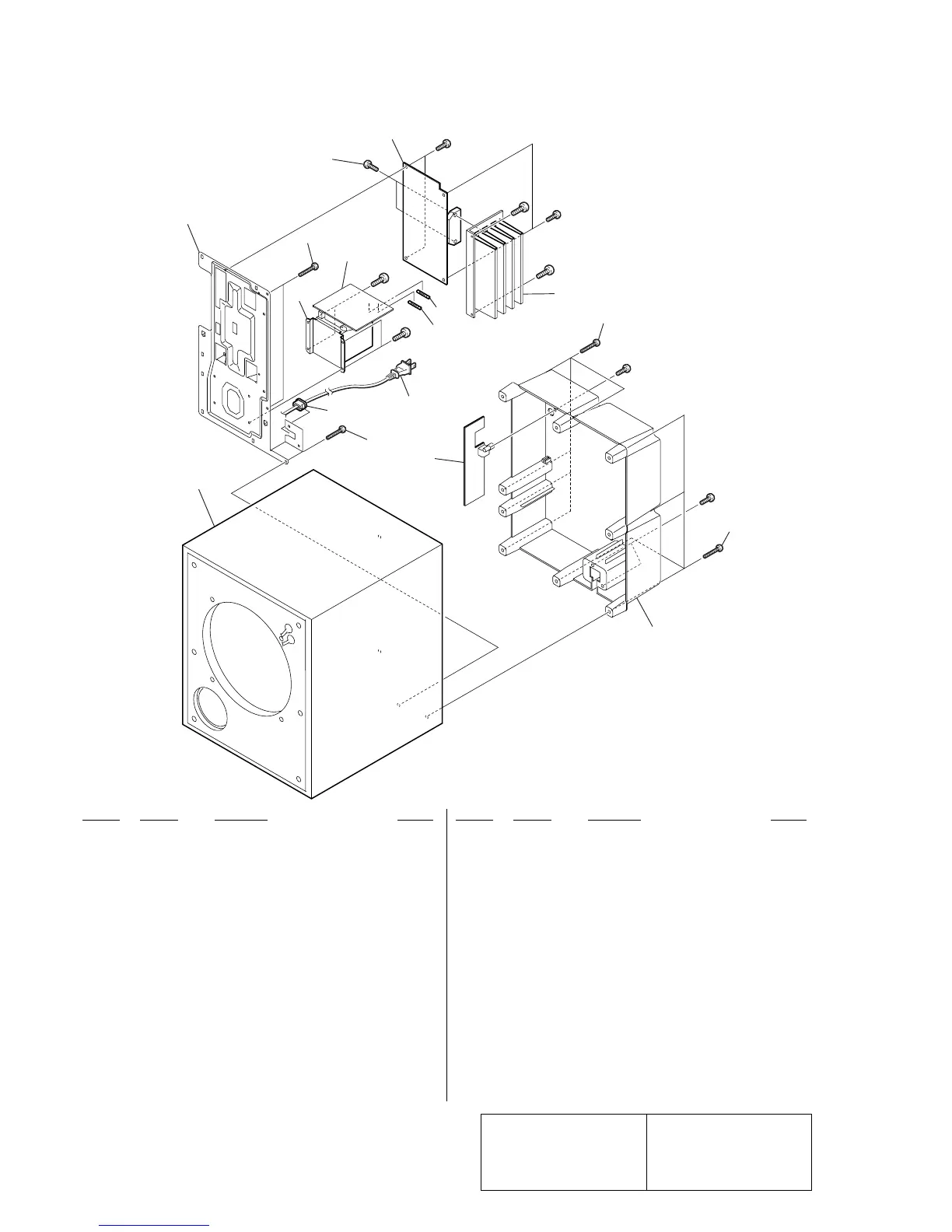

Sony SA-WMSP87 - Amplifier Section Exploded View

8
SA-WMSP87/WMSP87E
not supplied
not supplied
not supplied
F901
T1
#2
#2
#2
#1
#1
#1
#1
#2
51
52
52
52
52
53
54
57
55
56
58
F902
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
2-2. AMP SECTION
51 A-4737-805-A CABINET ASSY, SPEAKER (WMSP87E)
51 A-4723-991-A SPEAKER CABINET ASSY (CND, MX, E51, AUS)
51 A-4723-995-A SPEAKER CABINET ASSY (US)
51 A-4723-998-A SPEAKER CABINET ASSY (SP)
52 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
* 53 3-703-244-00 BUSHING (2104), CORD
0 54 1-777-071-13 CORD, POWER (WMSP87E)
0 54 1-696-847-22 CORD, POWER (AUS)
0 54 1-777-071-53 CORD, POWER (E51)
0 54 1-827-226-11 CORD, POWER (MX)
0 54 1-769-744-11 CORD, POWER (SP)
0 54 1-783-820-11 CORD, POWER (US, CND)
55 3-905-609-31 SCREW (TRANSISTOR) (SP)
56 A-1108-655-A MAIN BOARD, COMPLETE (US, CND)
56 A-1109-270-A MAIN BOARD, COMPLETE (MX, SP, E51, AUS)
56 A-4734-911-A MAIN BOARD, COMPLETE (WMSP87E)
57 1-688-813-11 INPUT BOARD (WMSP87E)
57 (Not Supplied) INPUT BOARD (WMSP87)
58 1-688-814-11 POWER TRANS BOARD (WMSP87E)
58 (Not Supplied) POWER TRANS BOARD (WMSP87)
0 T1 1-439-624-12 TANSFORMER, POWER (WMSP87E)
0 T1 1-443-630-11 TRANSFORMER, POWER (US, CND)
0 T1 1-443-634-11 POWER TRANSFORMER (AUS, SP)
0 T1 1-443-631-11 POWER TRANSFORMER (E51)
0 T1 1-443-633-11 POWER TRANSFORMER (MX)
0 F901 1-532-463-51 FUSE (T1AL/250V) (AEP, UK, E51)
0 F901 1-533-450-11 FUSE, GLASS TUBE (2.5A/125V)
(EXCEPT AEP, UK, E51)
0 F902 1-532-388-51 FUSE (T2AL/250V) (E51)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S) (WMSP87E)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ver. 1.1
