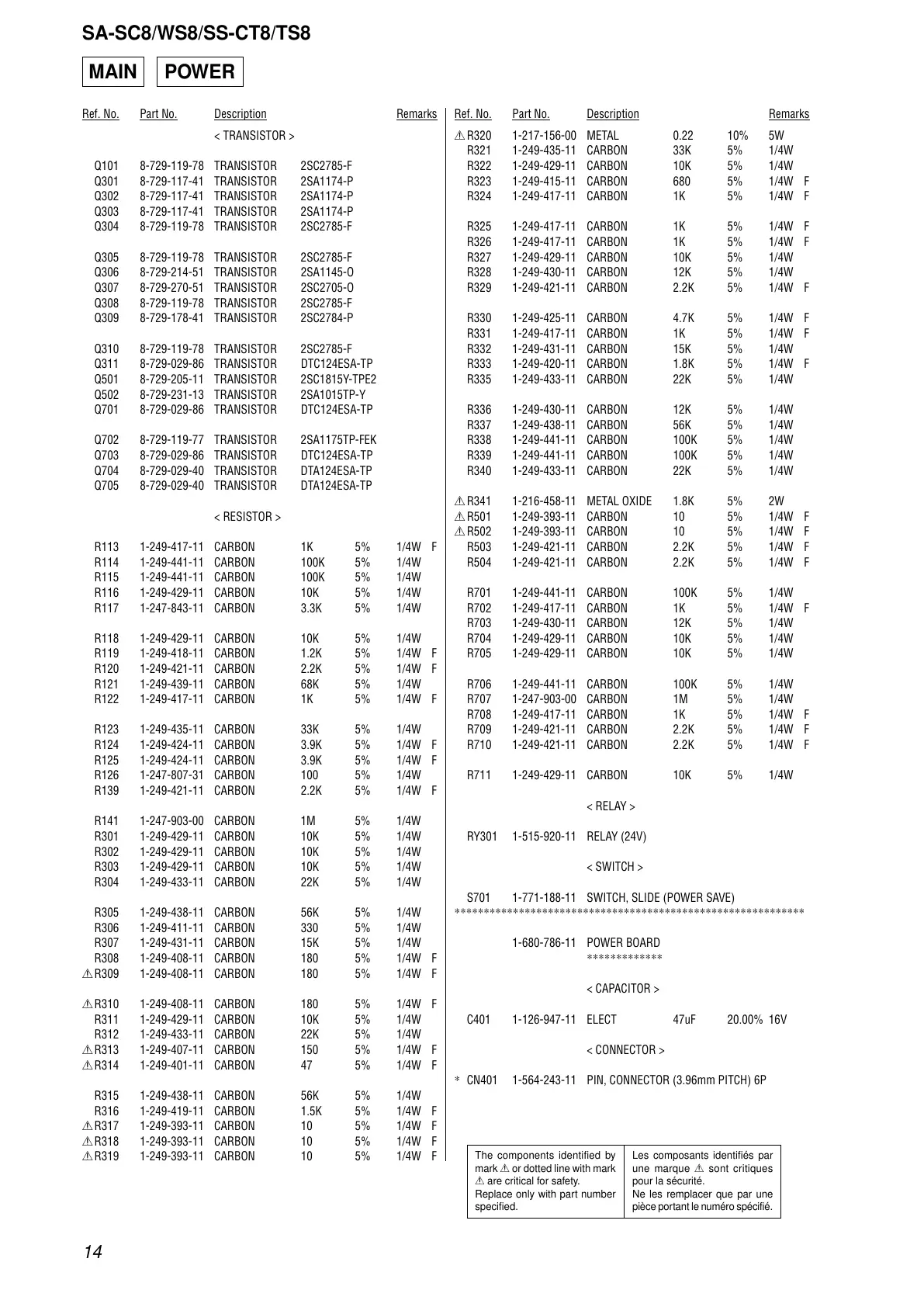

Sony SA-WS8 - Page 14

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
14
SA-SC8/WS8/SS-CT8/TS8
< TRANSISTOR >
Q101 8-729-119-78 TRANSISTOR 2SC2785-F
Q301 8-729-117-41 TRANSISTOR 2SA1174-P
Q302 8-729-117-41 TRANSISTOR 2SA1174-P
Q303 8-729-117-41 TRANSISTOR 2SA1174-P
Q304 8-729-119-78 TRANSISTOR 2SC2785-F
Q305 8-729-119-78 TRANSISTOR 2SC2785-F
Q306 8-729-214-51 TRANSISTOR 2SA1145-O
Q307 8-729-270-51 TRANSISTOR 2SC2705-O
Q308 8-729-119-78 TRANSISTOR 2SC2785-F
Q309 8-729-178-41 TRANSISTOR 2SC2784-P
Q310 8-729-119-78 TRANSISTOR 2SC2785-F
Q311 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q501 8-729-205-11 TRANSISTOR 2SC1815Y-TPE2
Q502 8-729-231-13 TRANSISTOR 2SA1015TP-Y
Q701 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q702 8-729-119-77 TRANSISTOR 2SA1175TP-FEK
Q703 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q704 8-729-029-40 TRANSISTOR DTA124ESA-TP
Q705 8-729-029-40 TRANSISTOR DTA124ESA-TP
< RESISTOR >
R113 1-249-417-11 CARBON 1K 5% 1/4W F
R114 1-249-441-11 CARBON 100K 5% 1/4W
R115 1-249-441-11 CARBON 100K 5% 1/4W
R116 1-249-429-11 CARBON 10K 5% 1/4W
R117 1-247-843-11 CARBON 3.3K 5% 1/4W
R118 1-249-429-11 CARBON 10K 5% 1/4W
R119 1-249-418-11 CARBON 1.2K 5% 1/4W F
R120 1-249-421-11 CARBON 2.2K 5% 1/4W F
R121 1-249-439-11 CARBON 68K 5% 1/4W
R122 1-249-417-11 CARBON 1K 5% 1/4W F
R123 1-249-435-11 CARBON 33K 5% 1/4W
R124 1-249-424-11 CARBON 3.9K 5% 1/4W F
R125 1-249-424-11 CARBON 3.9K 5% 1/4W F
R126 1-247-807-31 CARBON 100 5% 1/4W
R139 1-249-421-11 CARBON 2.2K 5% 1/4W F
R141 1-247-903-00 CARBON 1M 5% 1/4W
R301 1-249-429-11 CARBON 10K 5% 1/4W
R302 1-249-429-11 CARBON 10K 5% 1/4W
R303 1-249-429-11 CARBON 10K 5% 1/4W
R304 1-249-433-11 CARBON 22K 5% 1/4W
R305 1-249-438-11 CARBON 56K 5% 1/4W
R306 1-249-411-11 CARBON 330 5% 1/4W
R307 1-249-431-11 CARBON 15K 5% 1/4W
R308 1-249-408-11 CARBON 180 5% 1/4W F
0 R309 1-249-408-11 CARBON 180 5% 1/4W F
0 R310 1-249-408-11 CARBON 180 5% 1/4W F
R311 1-249-429-11 CARBON 10K 5% 1/4W
R312 1-249-433-11 CARBON 22K 5% 1/4W
0 R313 1-249-407-11 CARBON 150 5% 1/4W F
0 R314 1-249-401-11 CARBON 47 5% 1/4W F
R315 1-249-438-11 CARBON 56K 5% 1/4W
R316 1-249-419-11 CARBON 1.5K 5% 1/4W F
0 R317 1-249-393-11 CARBON 10 5% 1/4W F
0 R318 1-249-393-11 CARBON 10 5% 1/4W F
0 R319 1-249-393-11 CARBON 10 5% 1/4W F
0 R320 1-217-156-00 METAL 0.22 10% 5W
R321 1-249-435-11 CARBON 33K 5% 1/4W
R322 1-249-429-11 CARBON 10K 5% 1/4W
R323 1-249-415-11 CARBON 680 5% 1/4W F
R324 1-249-417-11 CARBON 1K 5% 1/4W F
R325 1-249-417-11 CARBON 1K 5% 1/4W F
R326 1-249-417-11 CARBON 1K 5% 1/4W F
R327 1-249-429-11 CARBON 10K 5% 1/4W
R328 1-249-430-11 CARBON 12K 5% 1/4W
R329 1-249-421-11 CARBON 2.2K 5% 1/4W F
R330 1-249-425-11 CARBON 4.7K 5% 1/4W F
R331 1-249-417-11 CARBON 1K 5% 1/4W F
R332 1-249-431-11 CARBON 15K 5% 1/4W
R333 1-249-420-11 CARBON 1.8K 5% 1/4W F
R335 1-249-433-11 CARBON 22K 5% 1/4W
R336 1-249-430-11 CARBON 12K 5% 1/4W
R337 1-249-438-11 CARBON 56K 5% 1/4W
R338 1-249-441-11 CARBON 100K 5% 1/4W
R339 1-249-441-11 CARBON 100K 5% 1/4W
R340 1-249-433-11 CARBON 22K 5% 1/4W
0 R341 1-216-458-11 METAL OXIDE 1.8K 5% 2W
0 R501 1-249-393-11 CARBON 10 5% 1/4W F
0 R502 1-249-393-11 CARBON 10 5% 1/4W F
R503 1-249-421-11 CARBON 2.2K 5% 1/4W F
R504 1-249-421-11 CARBON 2.2K 5% 1/4W F
R701 1-249-441-11 CARBON 100K 5% 1/4W
R702 1-249-417-11 CARBON 1K 5% 1/4W F
R703 1-249-430-11 CARBON 12K 5% 1/4W
R704 1-249-429-11 CARBON 10K 5% 1/4W
R705 1-249-429-11 CARBON 10K 5% 1/4W
R706 1-249-441-11 CARBON 100K 5% 1/4W
R707 1-247-903-00 CARBON 1M 5% 1/4W
R708 1-249-417-11 CARBON 1K 5% 1/4W F
R709 1-249-421-11 CARBON 2.2K 5% 1/4W F
R710 1-249-421-11 CARBON 2.2K 5% 1/4W F
R711 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
RY301 1-515-920-11 RELAY (24V)
< SWITCH >
S701 1-771-188-11 SWITCH, SLIDE (POWER SAVE)
************************************************************
1-680-786-11 POWER BOARD
*************
< CAPACITOR >
C401 1-126-947-11 ELECT 47uF 20.00% 16V
< CONNECTOR >
* CN401 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
MAIN POWER
