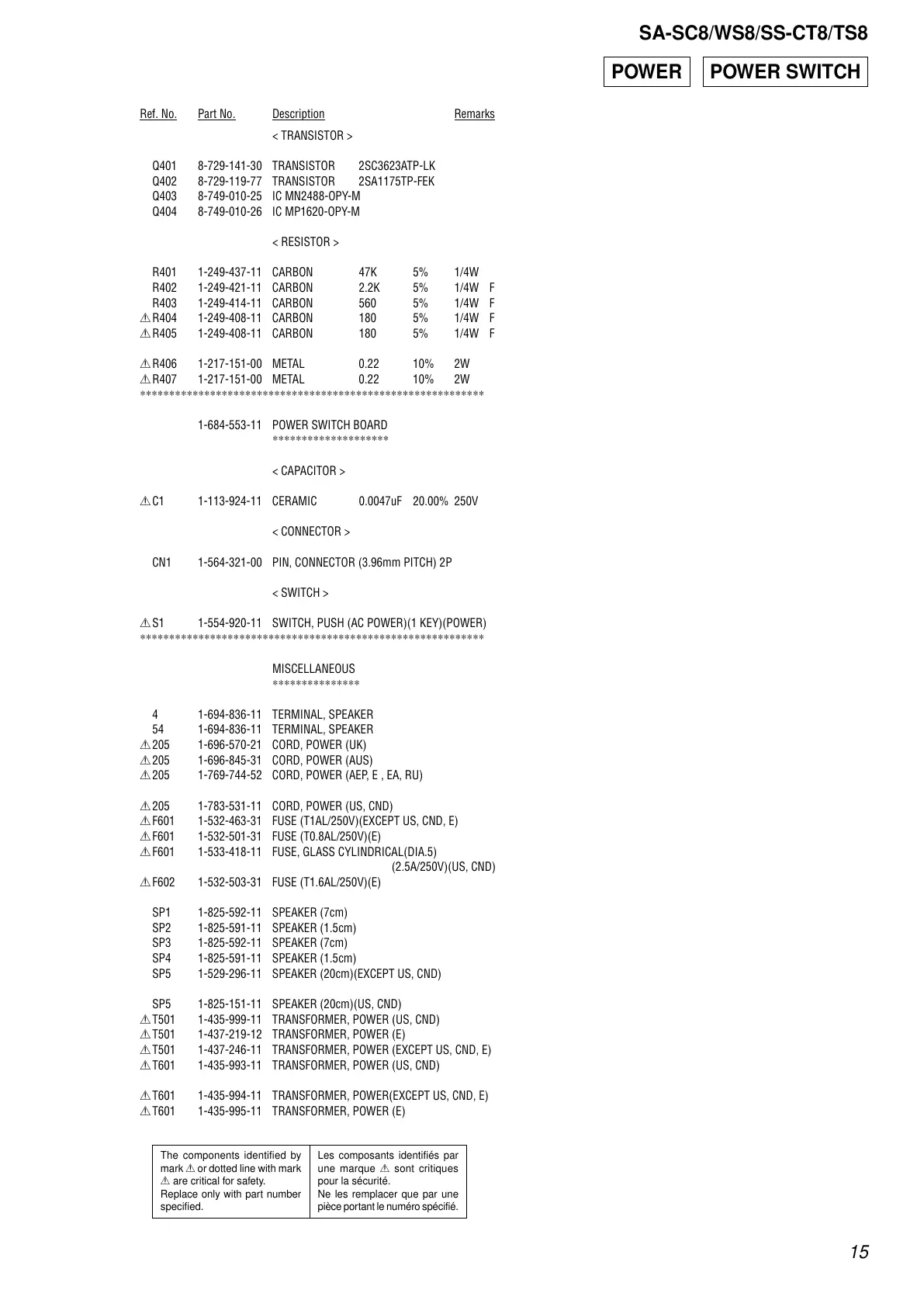

15
SA-SC8/WS8/SS-CT8/TS8
< TRANSISTOR >
Q401 8-729-141-30 TRANSISTOR 2SC3623ATP-LK
Q402 8-729-119-77 TRANSISTOR 2SA1175TP-FEK
Q403 8-749-010-25 IC MN2488-OPY-M
Q404 8-749-010-26 IC MP1620-OPY-M
< RESISTOR >
R401 1-249-437-11 CARBON 47K 5% 1/4W
R402 1-249-421-11 CARBON 2.2K 5% 1/4W F
R403 1-249-414-11 CARBON 560 5% 1/4W F
0 R404 1-249-408-11 CARBON 180 5% 1/4W F
0 R405 1-249-408-11 CARBON 180 5% 1/4W F
0 R406 1-217-151-00 METAL 0.22 10% 2W
0 R407 1-217-151-00 METAL 0.22 10% 2W
***********************************************************
1-684-553-11 POWER SWITCH BOARD
********************
< CAPACITOR >
0 C1 1-113-924-11 CERAMIC 0.0047uF 20.00% 250V
< CONNECTOR >
CN1 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< SWITCH >
0 S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)(POWER)
***********************************************************
MISCELLANEOUS
***************
4 1-694-836-11 TERMINAL, SPEAKER
54 1-694-836-11 TERMINAL, SPEAKER
0 205 1-696-570-21 CORD, POWER (UK)
0 205 1-696-845-31 CORD, POWER (AUS)
0 205 1-769-744-52 CORD, POWER (AEP, E , EA, RU)
0 205 1-783-531-11 CORD, POWER (US, CND)
0 F601 1-532-463-31 FUSE (T1AL/250V)(EXCEPT US, CND, E)
0 F601 1-532-501-31 FUSE (T0.8AL/250V)(E)
0 F601 1-533-418-11 FUSE, GLASS CYLINDRICAL(DIA.5)
(2.5A/250V)(US, CND)
0 F602 1-532-503-31 FUSE (T1.6AL/250V)(E)
SP1 1-825-592-11 SPEAKER (7cm)
SP2 1-825-591-11 SPEAKER (1.5cm)
SP3 1-825-592-11 SPEAKER (7cm)
SP4 1-825-591-11 SPEAKER (1.5cm)
SP5 1-529-296-11 SPEAKER (20cm)(EXCEPT US, CND)
SP5 1-825-151-11 SPEAKER (20cm)(US, CND)
0 T501 1-435-999-11 TRANSFORMER, POWER (US, CND)
0 T501 1-437-219-12 TRANSFORMER, POWER (E)
0 T501 1-437-246-11 TRANSFORMER, POWER (EXCEPT US, CND, E)
0 T601 1-435-993-11 TRANSFORMER, POWER (US, CND)
0 T601 1-435-994-11 TRANSFORMER, POWER(EXCEPT US, CND, E)
0 T601 1-435-995-11 TRANSFORMER, POWER (E)
Ref. No. Part No. Description Remarks
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
POWER POWER SWITCH
