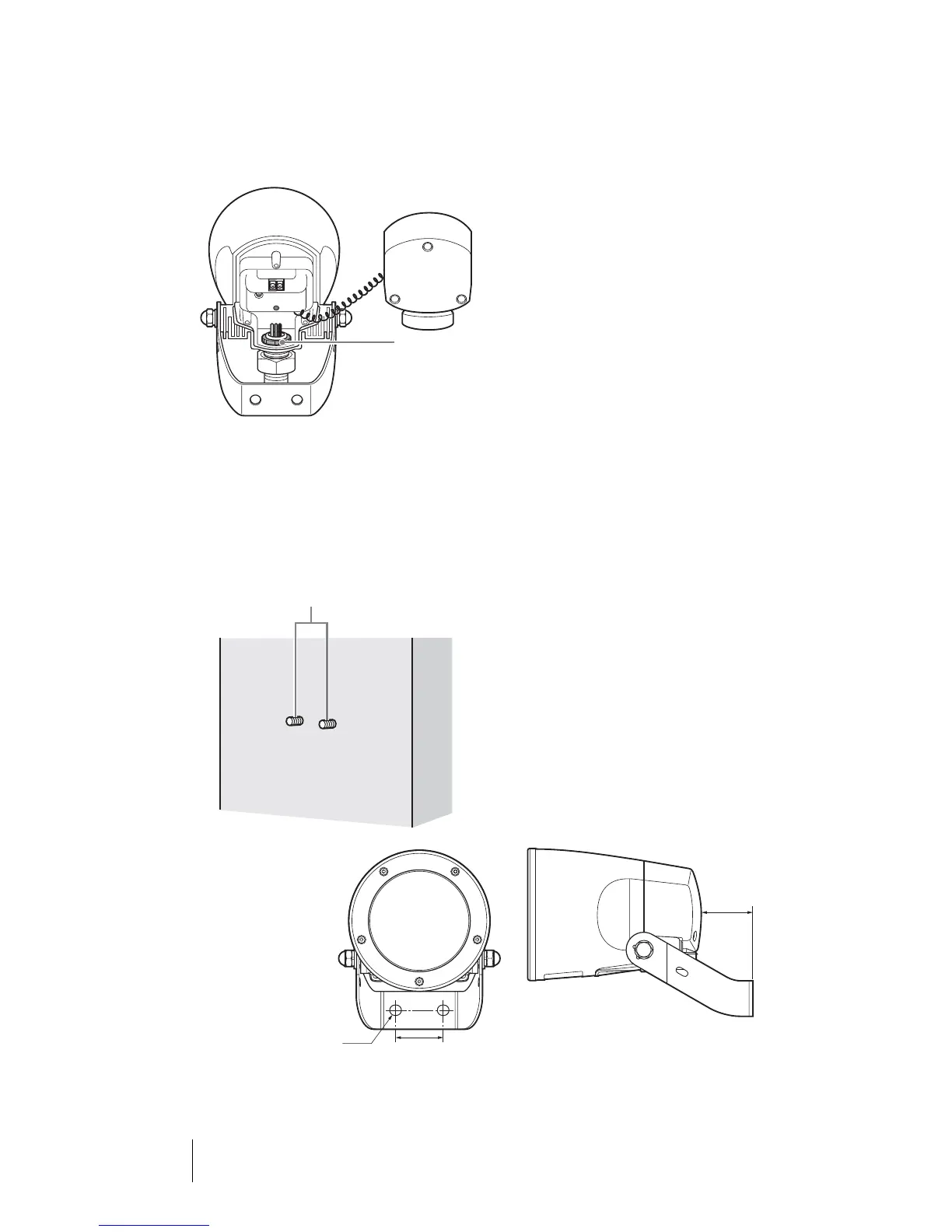

3 Insert the coupling through the connection port on the speaker, and
secure it with the nut supplied with the coupling.
4 Secure the speaker to the wall.
A Secure two mount bolts to the wall.
When installing the mount bolts, be sure to take into account the distance between
the bolt hole centers on the speaker frame and the distance between the speaker cover
and the wall.
Nut
Mount bolts
2 - 12
× 11 mm
(2 -
1
/
2
×
7
/
16
inches) 50.8 mm
(2 inches)
58.4 mm
(2
3
/
8
inches)
To Next Page
