Installation

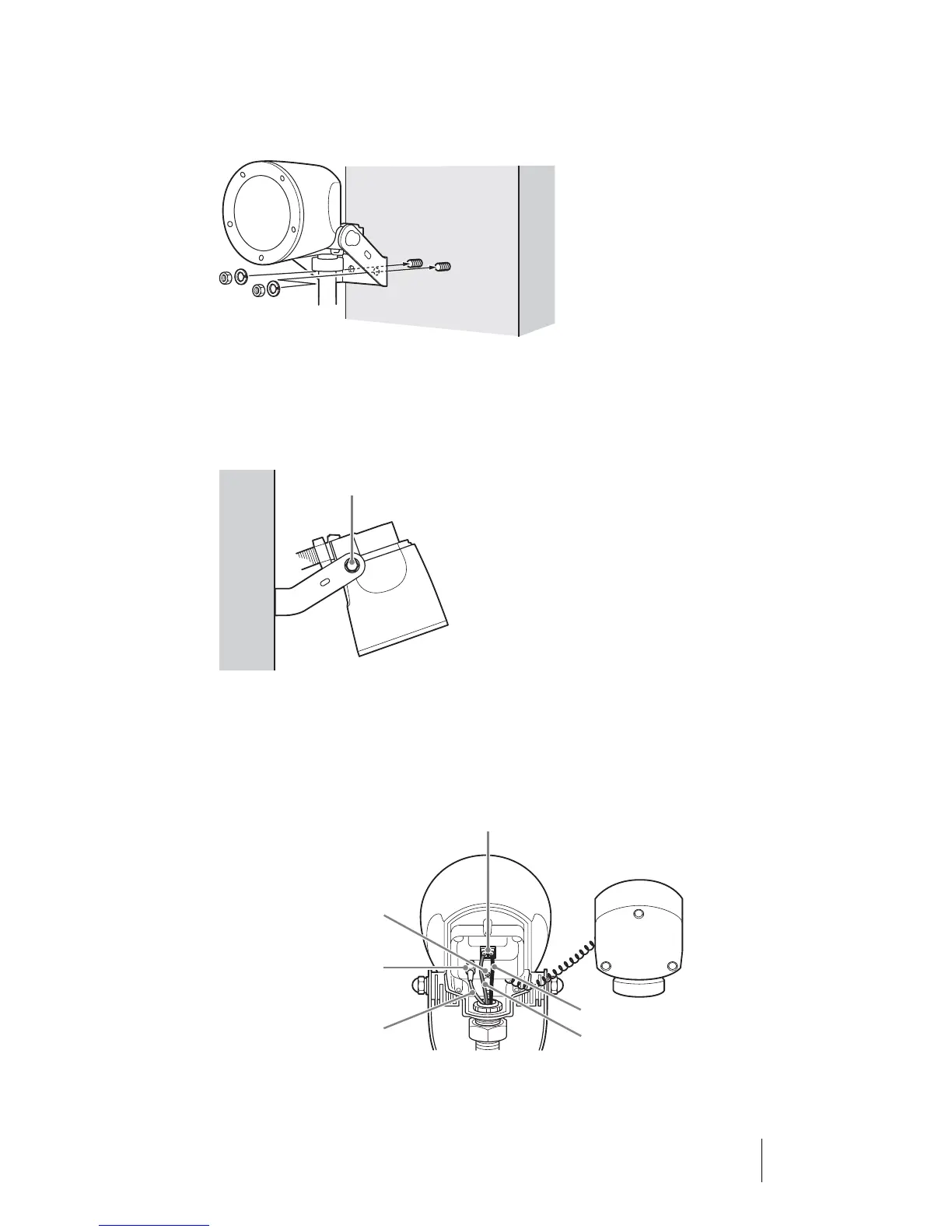

B Use washers and nuts to secure the speaker.
5 Connect the audio signal cable and power cables to the speaker.
A Loosen the adjustment bolts on the left and right sides of the speaker as much as
possible, and adjust the angle of the speaker as shown.
B Connect the audio signal cable to the AUDIO IN connector, the power cables to the
power input connector (24 V AC), and the grounding wire to the U grounding
terminal.
The unit should always be grounded.
Adjustment bolts (left and right)
Power input connector (24 V AC)
AUDIO IN connector
Power cable
Power cable
Audio signal cable
U grounding terminal
