Sony SCPH-30000 - MD Block

— 141 —
SCPH-30002D/30003D/30004D
Reproduction Prohibited

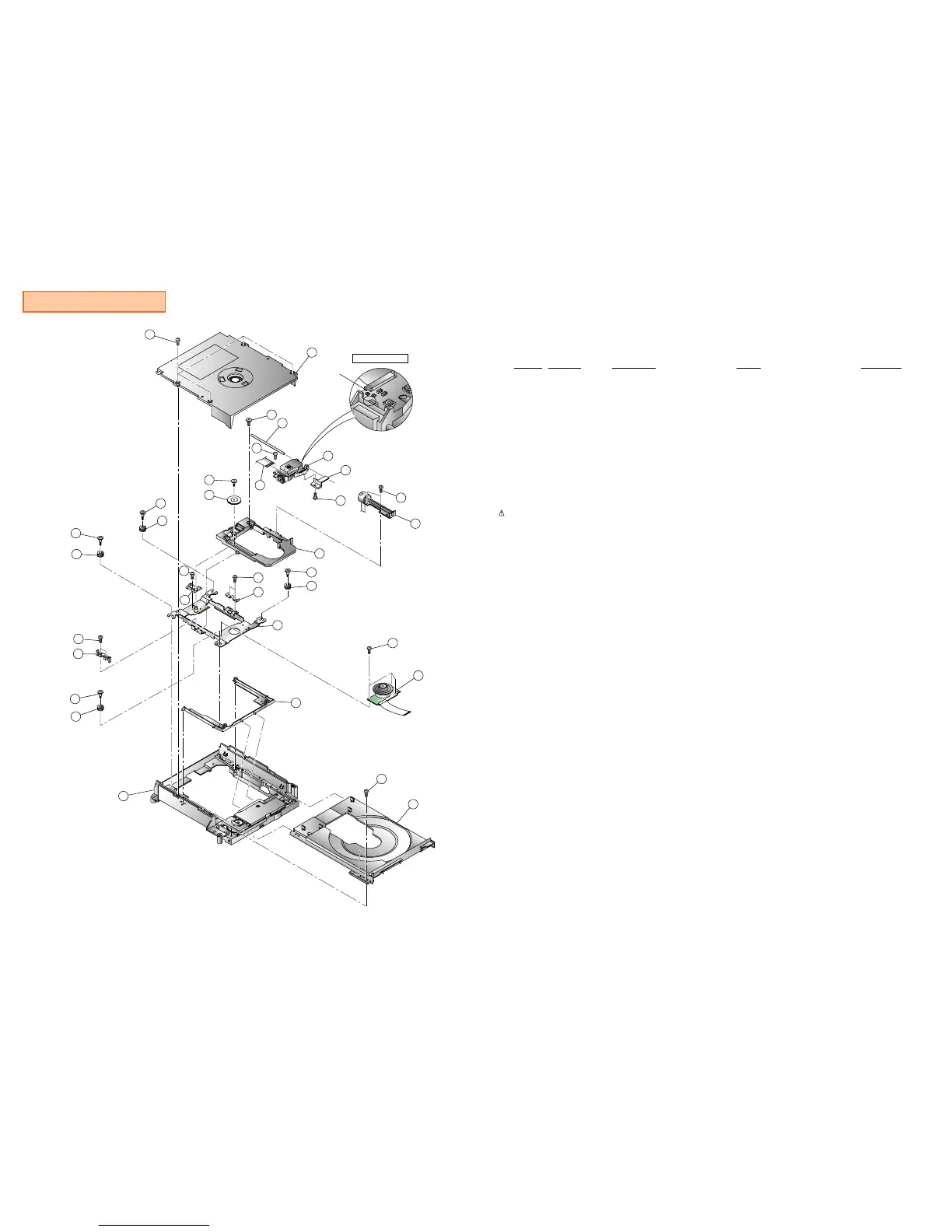

MD Block
--------
MD BLOCK
--------
Ref-No. Part No. Description Remark Place code
2 8-835-733-01 MOTOR, DC SSC28C/C-NP #10SP
2 1-763-700-12 MOTOR, DC (SPINDLE) #10SP
3 1-763-639-21 MOTOR, DC #10
5 3-059-845-01 SCREW (B2X6.5), SHAFT RETAINER #10
7 X-3951-637-1 FRAME ASSY, SUB #10
8 3-065-277-01 INSULATOR #10
9 3-065-276-01 SCREW, STEP #10
10 X-3951-606-1 CHASSIS ASSY, MAIN #10
13 3-059-854-02 SHAFT, MAIN #10
14 3-059-855-02 RACK #10
16 3-060-399-01 SCREW, SKEW #10
17 3-060-400-01 TAPPING (B2X6.5) #10
22 3-062-728-01 0 PLATE 3, MAIN M3X3.2 #10
23 8-820-141-10 DEVICE, OPICAL KHS-400B #10OP
26 X-3951-607-2 CHASSIS ASSY, SUB #10
27 X-3951-609-2 BRACKET ASSY, PULLEY #10
28 X-3951-608-2 TRAY ASSY #10TR
30 X-3951-610-2 FRAME ASSY, MAIN #10
31 1-680-370-12 PWB, FLEXIBLE #10
32 3-068-075-02 SCREW (SUB), STEP #10
33 3-065-278-02 CAM, TILT #10
34 3-068-076-01 SPRING (TILT), LEAF #10
35 3-065-282-01 GUIDE (L) #10
36 3-065-283-01 GUIDE (R) #10
37 3-065-557-01 SCREW (M2X6.0) #10
41 3-065-279-02 SCREW, CAM RETAINER #10
14
22
23
13
16
31
41
33
5
17
27
TAP
9
8
9
8
8
10
32
30
7
26
32
8
34
17
28
22
2
22
22
36
37
35
17
3
BOTTOM VIEW
