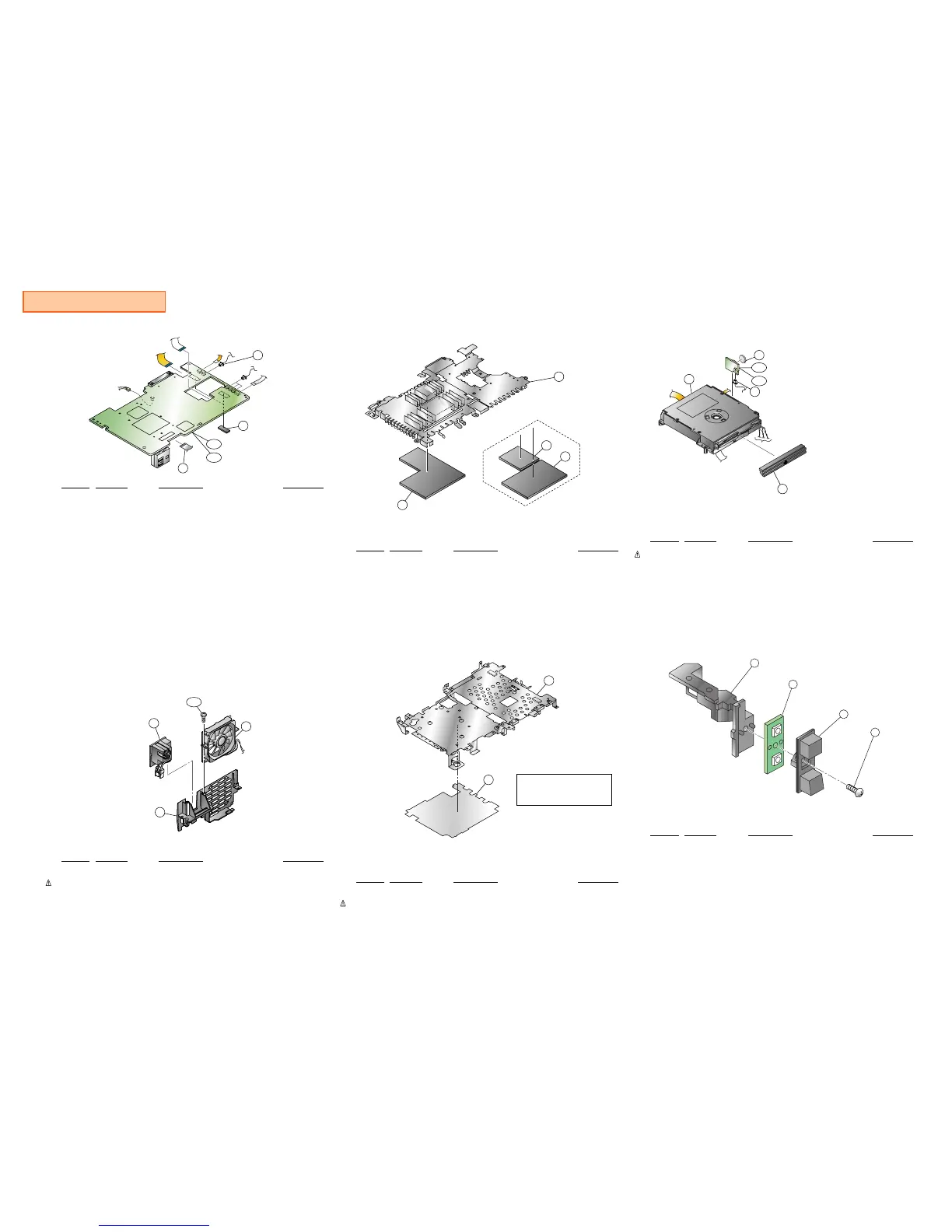

Sony SCPH-30000 - GH-010;GH-012 Block; Shield (A) Assy Block; GB-003;GB-004 and Plate Assy Block; Shield (B) Block

— 142 —
SCPH-30002D/30003D/30004D
Reproduction Prohibited
Switch Block
------------
SWITCH BLOCK
------------
Ref-No. Part No. Description Place code
50 3-059-665-03 BUTTON, SWITCH #25SW
51 3-059-666-05 BRACKET, SWITCH #25SW
52 7-685-105-11 TPG +P 2X8, TYPE 2, NON-SLIT #25SW
53 A-6712-922-A SW-358 MOUNT
for SCPH-30002D/30003D/30004D #25SW
53 A-6712-983-A SW-363 MOUNT
for SCPH-30003D’/30004D’ #25SW
51
53
50
52
------------------------
FAN AND REAR PANEL BLOCK
------------------------
Ref-No. Part No. Description Place code
63 1-763-480-22 DC. FAN #74
64 1-771-995-31 SWITCH, POWER (WITH AC INLET) #00
159 3-068-676-11 PANEL, REAR #87
BV312 3-325-679-21 SCREW, TAPPING +BV 3X12 #87
GH-010/GH-012 Block
87
GH010
153
151
: for SCPH-30002D/30003D/30004D model
GH012 : for SCPH-30003D’/30004D’ model
-------------------
GH-010/GH-012 BLOCK
-------------------
Ref-No. Part No. Description Place code
87 3-068-806-01 SHEET (DRIVER), ELECTRIC HEAT #25GH
151 1-757-934-11 CABLE, FLAT (FFC-011) #12
153 1-961-160-21 HARNESS (HS-059) #12
GH010 A-6712-954-A GH-010 MOUNT (32M M)
for SCPH-30003D/30004D #25GH
GH010 A-6712-957-A GH-010 MOUNT (64M M)
for SCPH-30002D #25GH
GH010 A-6712-955-A GH-010 MOUNT (64M M)
for SCPH-30003D/30004D #25GH
GH010 A-6712-958-A GH-010 MOUNT (64M R)
for SCPH-30002D #25GH
GH010 A-6712-956-A GH-010 MOUNT (64M R)
for SCPH-30003D/30004D #25GH
GH012 A-6712-985-A GH-012 MOUNT (32M R)
for SCPH-30003D’/30004D’ #25GH
GH012 A-6712-986-A GH-012 MOUNT (64M R)
for SCPH-30003D’/30004D’ #25GH
Shield (A) Assy Block
---------------------
SHIELD (A) ASSY BLOCK
---------------------
Ref-No. Part No. Description Place code
97 X-3951-707-2 SHIELD (A) ASSY #87
120 3-059-652-01 SHEET (A), ELECTRIC HEAT
for SCPH-30002D/30003D/30004D #16
143 3-066-277-01 SHEET (P), ELECTRIC HEAT
for SCPH-30003D’/30004D’ #16
144 3-066-278-01 SHEET (Q), ELECTRIC HEAT
for SCPH-30003D’/30004D’ #16
97
120
144
143
for SCPH-30003D’/30004D’ model
Shield (B) Block
----------------
SHIELD (B) BLOCK
----------------
Ref-No. Part No. Description Place code
156 3-068-669-02 SHIELD B #16
157 3-068-674-01 SHEET, INSULATING #16
156
157
Fan and Rear Panel Block
64
63
159
BV312
CAUTION
Don't lose the insulating sheet
when assemble the console.
GB-003/GB-004 and Plate Assy Block
95
61
GB003
153
91
: for SCPH-30002D/30003D/30004D model
GB004 : for SCPH-30003D’/30004D’ model
----------------------------------
GB-003/GB-004 AND PLATE ASSY BLOCK
----------------------------------
Ref-No. Part No. Description Place code
61 1-528-174-41 BATTERY, LITHIUM (CR2032 TYPE) #25GB
91 A-6705-342-A MD BLOCK ASSY #10
95 X-3951-099-1 PLATE ASSY, ORNAMENTAL #87
153 1-961-160-21 HARNESS (HS-059) #12
GB003 A-6712-923-A GB-003 MOUNT
for SCPH-30002D/30003D/30004D #25GB
GB004 A-6712-984-A GB-004 MOUNT
for SCPH-30003D’/30004D’ #25GB
