SECTION 6
EXPLODED VIEWS

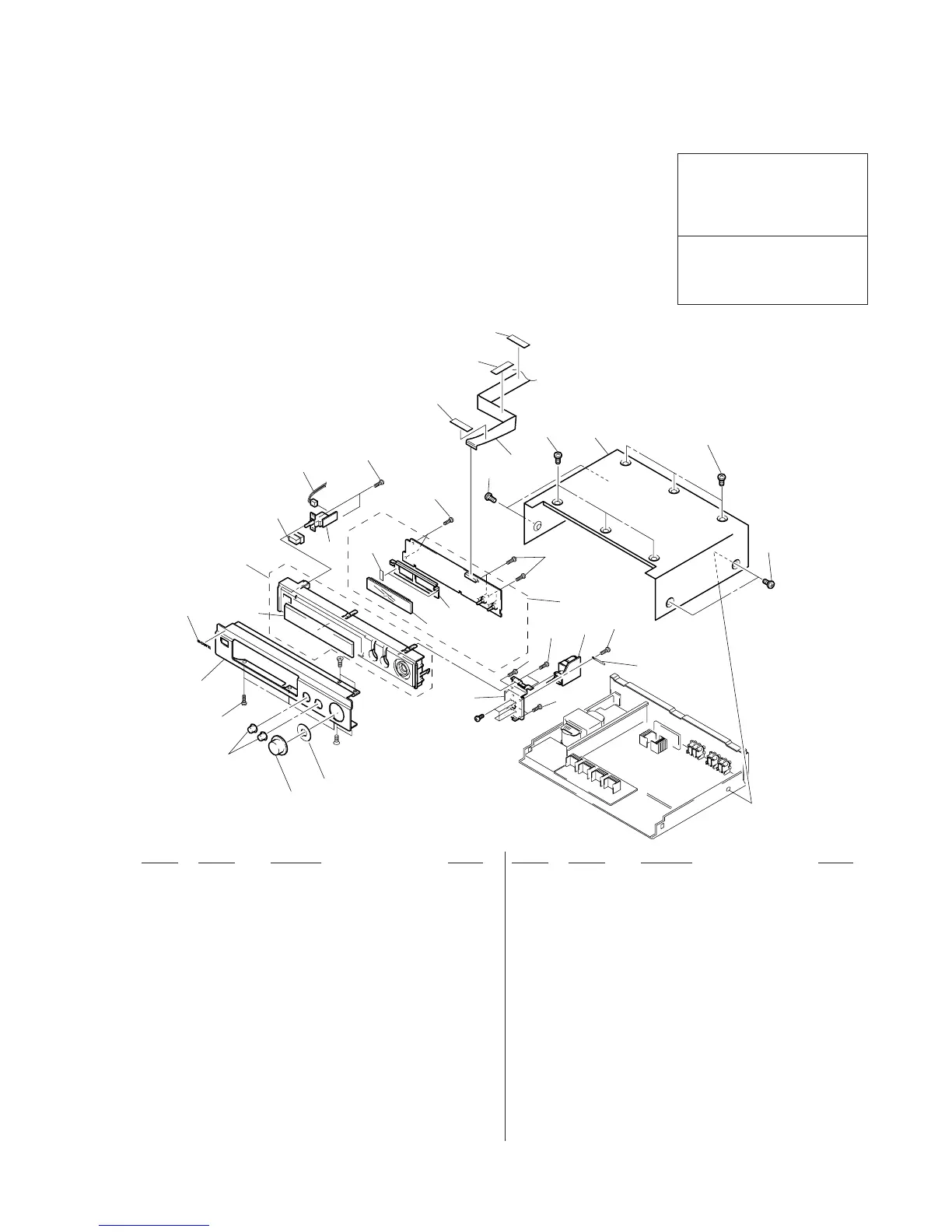

6-1. FRONT PANEL SECTION
3
2
1
18
#1
#1
not
supplied
#4
9
9
not supplied
20
17
14
13
14
15
9
9
19
7
5
6
9
9
10
16
9
14
14
17
17
FL251
12
11
8
4
1 X-4947-140-1 KNOB (R48V) ASSY (BLACK)
1 X-4947-140-2 KNOB (R48V) ASSY (GOLD)
2 4-987-860-02 KNOB (19)(BLACK)
2 4-987-860-12 KNOB (19)(GOLD)
3 4-987-858-03 PANEL, FRONT (BLACK)(EXCEPT US)
3 4-987-858-13 PANEL, FRONT (GOLD)(EXCEPT US)
3 4-987-858-23 PANEL, FRONT (BLACK) (US)
4 4-942-568-01 EMBLEM (NO.5), SONY (BLACK)
4 4-942-568-21 EMBLEM (NO.5), SONY (GOLD)
5 X-4947-897-5 BASE ASSY (B), PANEL (BLACK)
5 X-4947-898-5 BASE ASSY (G), PANEL (GOLD)
6 4-987-859-02 WINDOW, INDICATION
7 4-917-460-01 KNOB, POWER (BLACK)
7 4-917-460-51 KNOB, POWER (GOLD)
* 8 1-664-279-11 SW BOARD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
9 4-974-510-01 SCREW (+BV 3X8 B)
* 10 A-4392-303-A DISPLAY BOARD, COMPLETE
* 11 4-921-941-71 CUSHION (FL)
* 12 4-987-862-01 HOLDER (FL TUBE)
13 1-773-232-11 WIRE (FLAT TYPE)(25 CORE)
14 3-704-366-01 SCREW (CASE)(M3X8)(BLACK)
14 3-704-366-71 SCREW (CASE)(M3X8)(GOLD)
* 15 4-974-321-51 CASE (GOLD)
15 4-974-321-61 CASE (BLACK)
* 16 1-664-280-61 VOL BOARD
17 4-961-535-01 SPACER (COVER)
* 18 4-990-677-01 COVER (GOLD)
19 1-769-077-31 LEAD (WITH CONNECTOR)(2 CORE)
19 1-769-078-51 LEAD (WITH CONNECTOR)(2 CORE)
20 3-704-515-21 SCREW (BU/RING)
FL251 1-517-645-11 INDICATOR TUBE, FLUORESCENT
