Sony SDP-EP9ES - Chassis Section

— 68 —
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Les composants identifiés par
une marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.

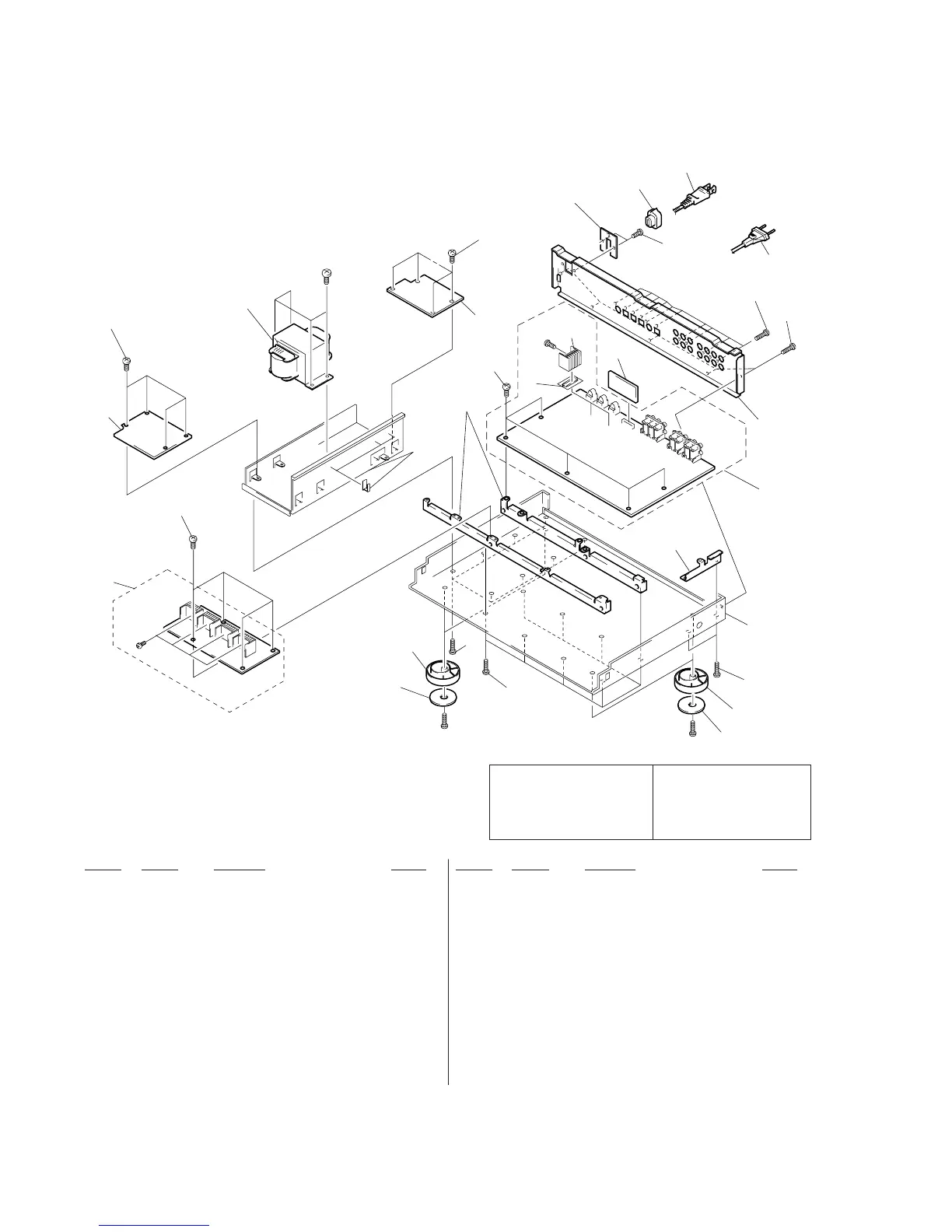

6-2. CHASSIS SECTION
51
57
52
57
T1
#2
57
53
not
supplied
not
supplied
57
#4
64
63
54
55
56
57
58
59
60
61
57
not supplied
not supplied
#4
60
61
#3
#3
57
57
62
not
supplied
(US,CND)
(AEP,E,SP,MY,CH)
57
62
* 51 1-664-278-11 AC2 BOARD
* 52 A-4398-191-A PS BOARD, COMPLETE (US,CND)
* 52 A-4398-192-A PS BOARD, COMPLETE (AEP,E,MY,SP,CH)
* 53 1-664-277-11 AC1 BOARD
* 54 4-923-873-01 BRACKET, CORD STOPPER
* 55 3-703-244-00 BUSHING (2104), CORD (AEP,E,MY,SP,CH)
55 4-916-783-01 BUSHING, CORD (US,CND)
56 3-704-515-41 SCREW (BV/RING)
57 4-974-510-01 SCREW (+BV 3X8 B)
* 58 4-987-861-13 PANEL, BACK (US)
* 58 4-987-861-23 PANEL, BACK (CND)
* 58 4-987-861-33 PANEL, BACK (AEP)
* 58 4-987-861-43 PANEL, BACK (E,MY,SP,CH)
* 59 A-4392-301-A MAIN BOARD, COMPLETE
60 4-970-123-01 FOOT (F50180S)
61 4-970-124-01 CUSHION (F50180S)
! 62 1-559-479-11 CORD, POWER (US,CND)
! 62 1-776-095-11 CORD, POWER (AEP,E,MY,SP,CH)
* 63 A-4398-190-A TR BOARD
64 4-989-736-01 SPACER
! T1 1-431-188-11 TRANSFORMER, POWER (US,CND)
! T1 1-431-189-11 TRANSFORMER, POWER (E,MY,SP,CH)
! T1 1-431-190-11 TRANSFORMER, POWER (AEP)
