Sony SE350K - Mechanism Chassis Assembly (1)

8-5
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

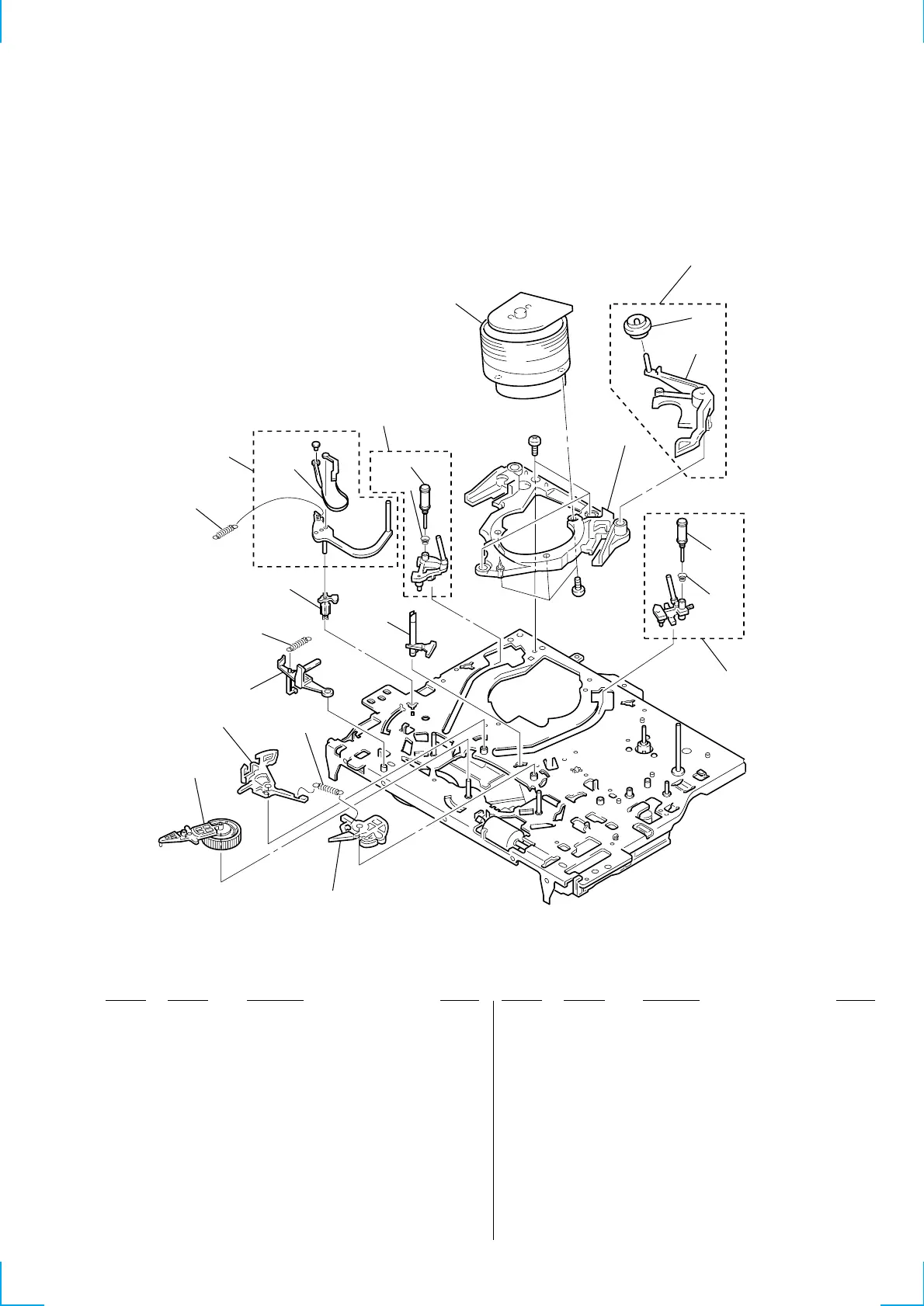

8-1-4. MECHANISM CHASSIS ASSEMBLY (2)
#4
#2
768
771
772
773
764
762
763
765
751
753
754
752
755
756
757
766
762
763
761
759
758
760
751 X-3949-363-1 BRAKE ASSY, MAIN (T)
752 3-053-882-01 SPRING, TENS (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3949-362-1 BRAKE ASSY, MAIN (S)
755 3-977-513-02 LEVER, REC. PROOF
756 3-976-767-01 SPRING, TENS. (REC. PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3950-427-1 TG1 ASSY (SD)
759 X-3950-373-1 BAND ASSY, TG1 (SD)
760 3-977-488-01 SPRING (POWER TENSION)
761 A-6750-324-A SHUTTLE (S) BLOCK ASSY
762 X-3948-050-1 ROLLER ASSY, GUIDE
763 3-965-178-01 SPRING
764 3-969-632-04 BASE, DRUM
765 A-6750-328-E SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
768 1-772-361-11 DRUM ASSY, DZH-92D (SE350)
768 1-772-362-11 DRUM ASSY, DZH-93D (SE500)
768 1-772-364-11 DRUM ASSY, DZH-0B5A (EXCEPT SE350/
SE500/SE600B/SE700B/SE800B/SX700B)
768 1-772-365-11 DRUM ASSY, DZH-0B6A
(SE600B/SE700B/SE800B/SX700B)
771 A-6746-074-G ROLLER BLOCK ASSY, HC
772 X-3947-255-1 ROLLER ASSY, HC
773 3-975-724-07 ARM, HC
