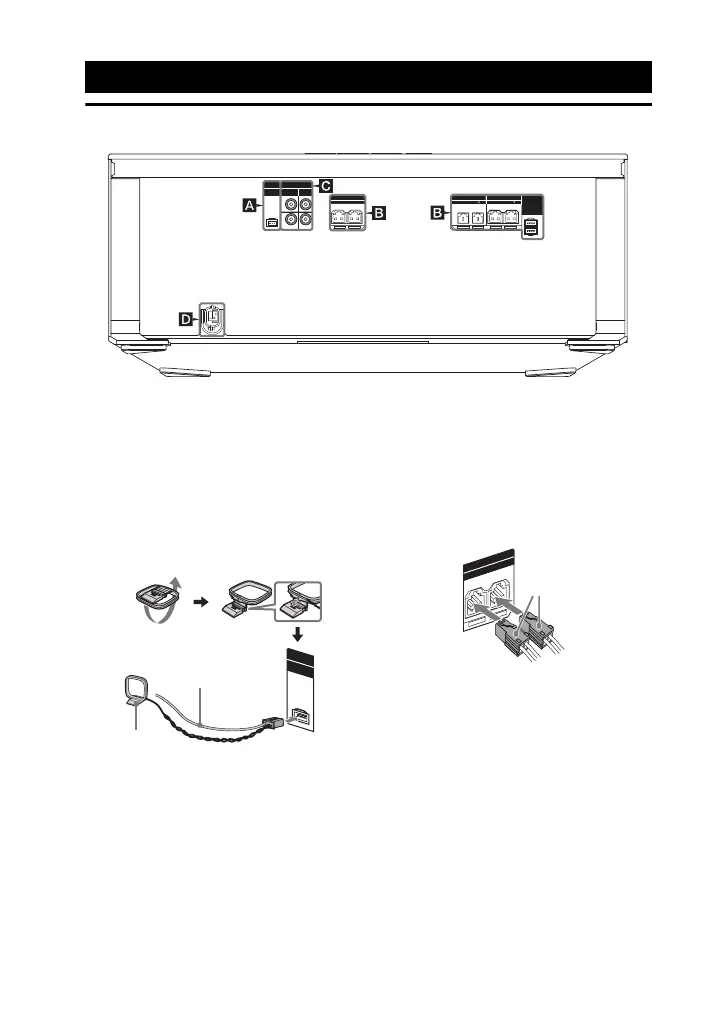

Hooking up the system securely
A Antennas
Find a location and an orientation that
provide good reception when you set up
the antennas.
Keep the antennas away from the speaker
cords, the power cord and the USB cable
to avoid picking up noise.
B Speakers
The speaker connectors are color-coded
with their respective speaker terminals on
the unit.
Example:
Notes
• Be sure to use only the supplied speakers.
• When connecting speaker cords, insert the
connector straight into the terminals.
Getting Started
IMPEDANCE USE 4Ω
TWEETERS/WOOFERS
SUBWOOFERSMID SPEAKERS
LED
SPEAKER
IMPEDANCE USE 4IMPEDANCE USE 5
LR
L
R
RL R L
L
R
ANTENNA
FM/AM
TV/DVD/
SAT
PC/
GAME
AUDIO IN
A
N
TE
N
N
A
FM/AM
AM loop
antenna
Extend the FM lead
antenna horizontally
IM
PED
ANCE U
SE 4
Ω
TW
E
ETERS/WOOFERS
LR
White
