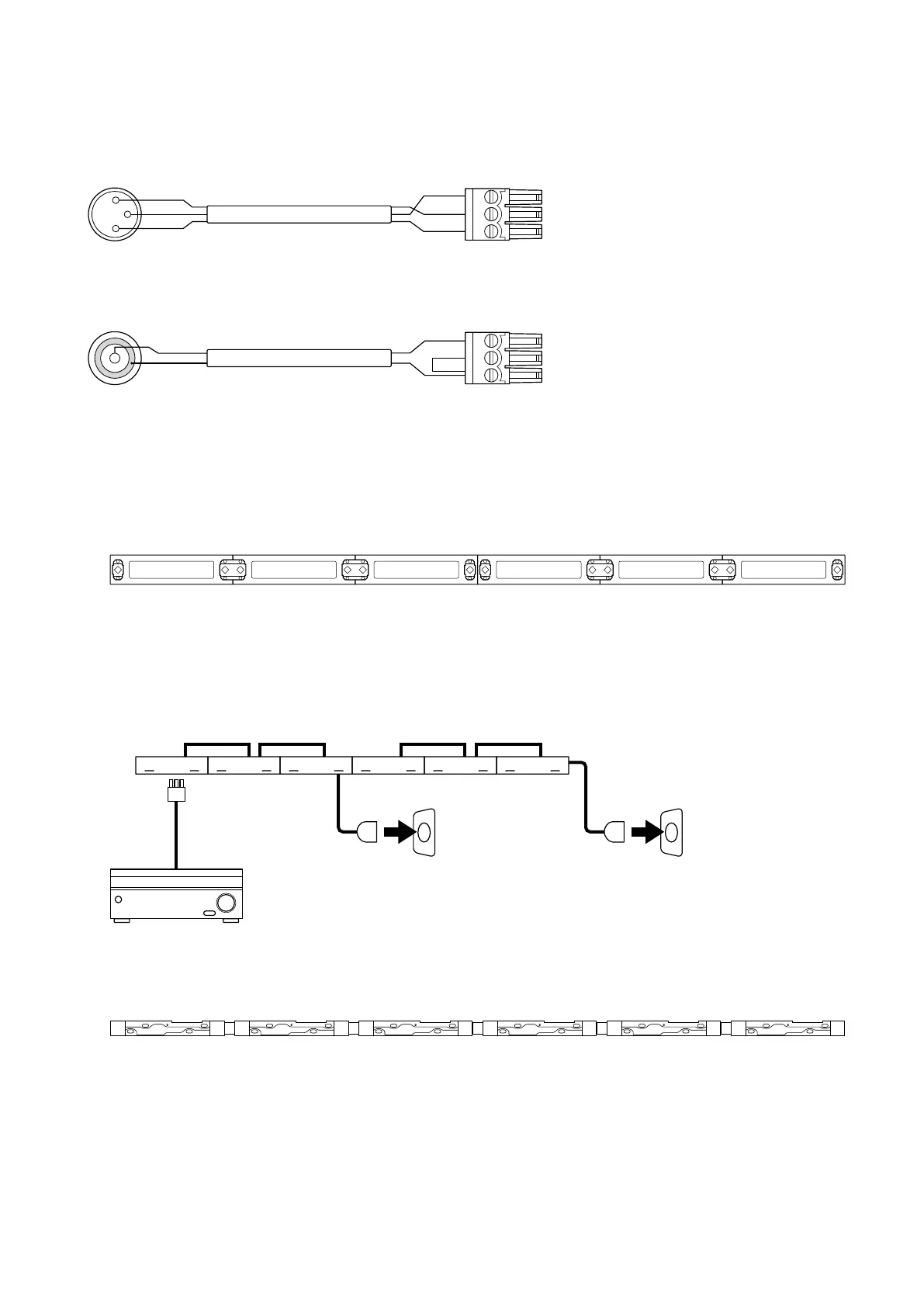

Wiring examples with an analog audio device
For connection with an analog audio device using the 3-pin Euro type terminal block header and an analog audio
cable, see the following examples for wiring:
Balanced wiring (example with the XLR cable*)
GND
Cold (–)
Hot (+)
GND
Cold (–)
Hot (+)
1
2
3
* Assignments to the pins 1, 2, and 3 of the XLR terminal vary depending on the analog audio device.
Unbalanced wiring (example with the RCA cable)
GND
Cold (–)
Hot (+)
GND
Hot (+)
To join 6 speakers together
1
As illustrated below, have 2 sets of 3 speakers, which are joined together by the speaker joint
brackets, ready at hand.
2
Plug the power cord into the AC inlet on the speaker.
Power can be supplied to up to 3 adjoining speakers through a single power cord. Connect the left and right
pairs of the 3 adjoining speakers using 2 power cascade cables and connect all of the 6 speakers together using
Ethernet cables.
OUT OUTININOUT OUTININ
3
Join 6 wall mounting brackets together as illustrated below, and then mount the speakers on a wall.
For details, see “Wall Mounting” (page 17).
