Sony SLT-A58K - GO-1002 BOARD

SLT-A58K/A58M/A58Y_L3
6-24
MCR-2000
FLEXIBLE
LN7352
(PAGE 6-31)
Note: C6308 and SE6301 are not supplied,
but they are included in GO-1002 COMPLETE BOARD.
12345 6 7 8 9
A
B
C
D
E
F
A
B
C
D
E
F
08

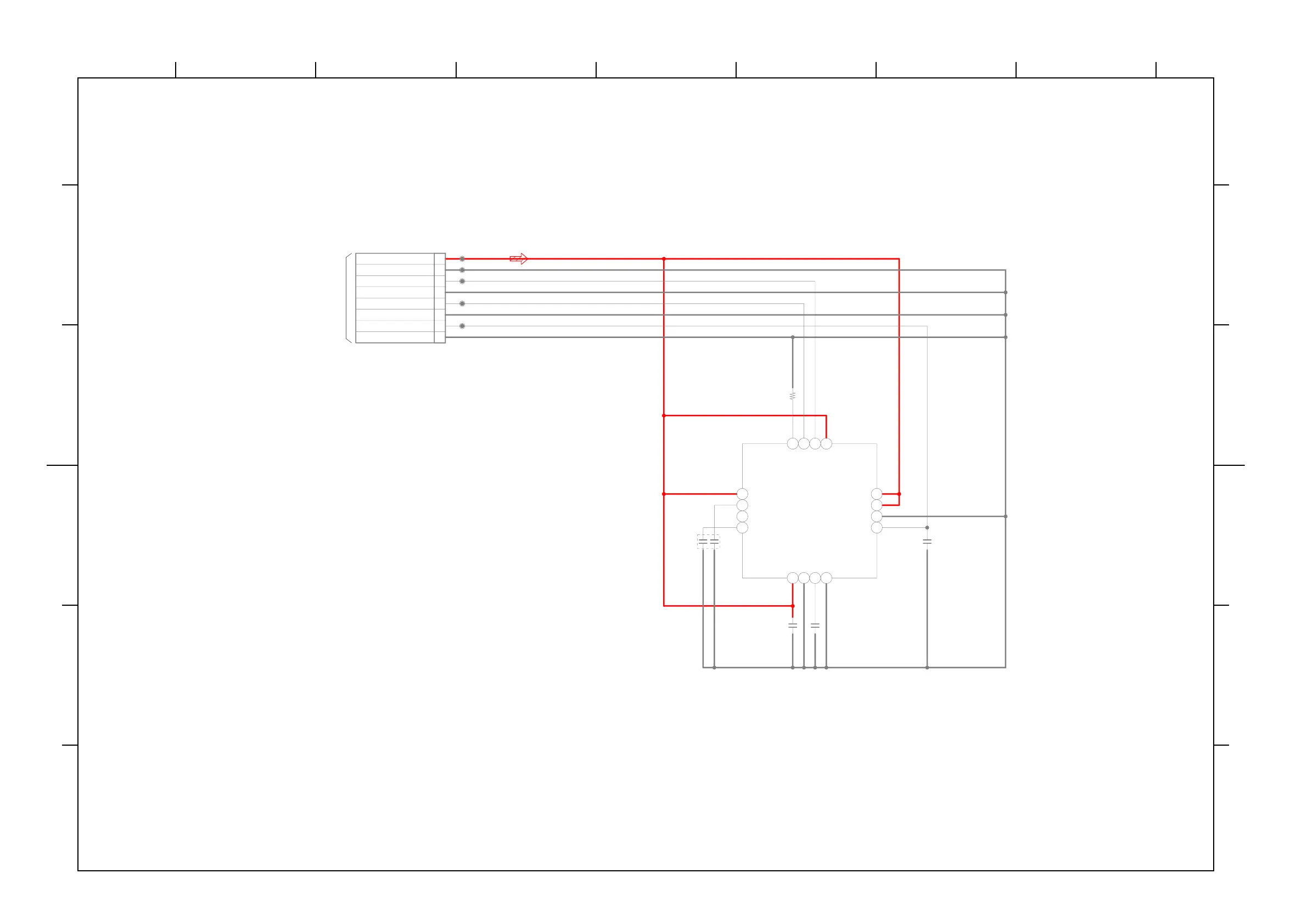

GO-1002 BOARD
PITCH/YAW SENSOR
C6302
10u
C6303
1u
C6308
0.1u
R6301
XX
CL6302
CL6301
CL6303
CL6305
CL6304
C6309
0.1u
1
2
3
4
SE6301
PITCH/YAW
SENSOR
1
VCC
2
AGND1
3
V1
4
AGND2
5
Vref/COSR
6
DGND
7
Vdd
8
CSB
9
SCLK
10
MISO/OUTA
11
MOSI/OUTB
12
SL
13
OUTMODE
14
VregA
15
(NC)
16
VregD
CN6301 8P
1
GYROREG
2
REG_GND
3
GINA
4
REG_GND
5
GINB
6
REG_GND
7
VREF
8
REG_GND
