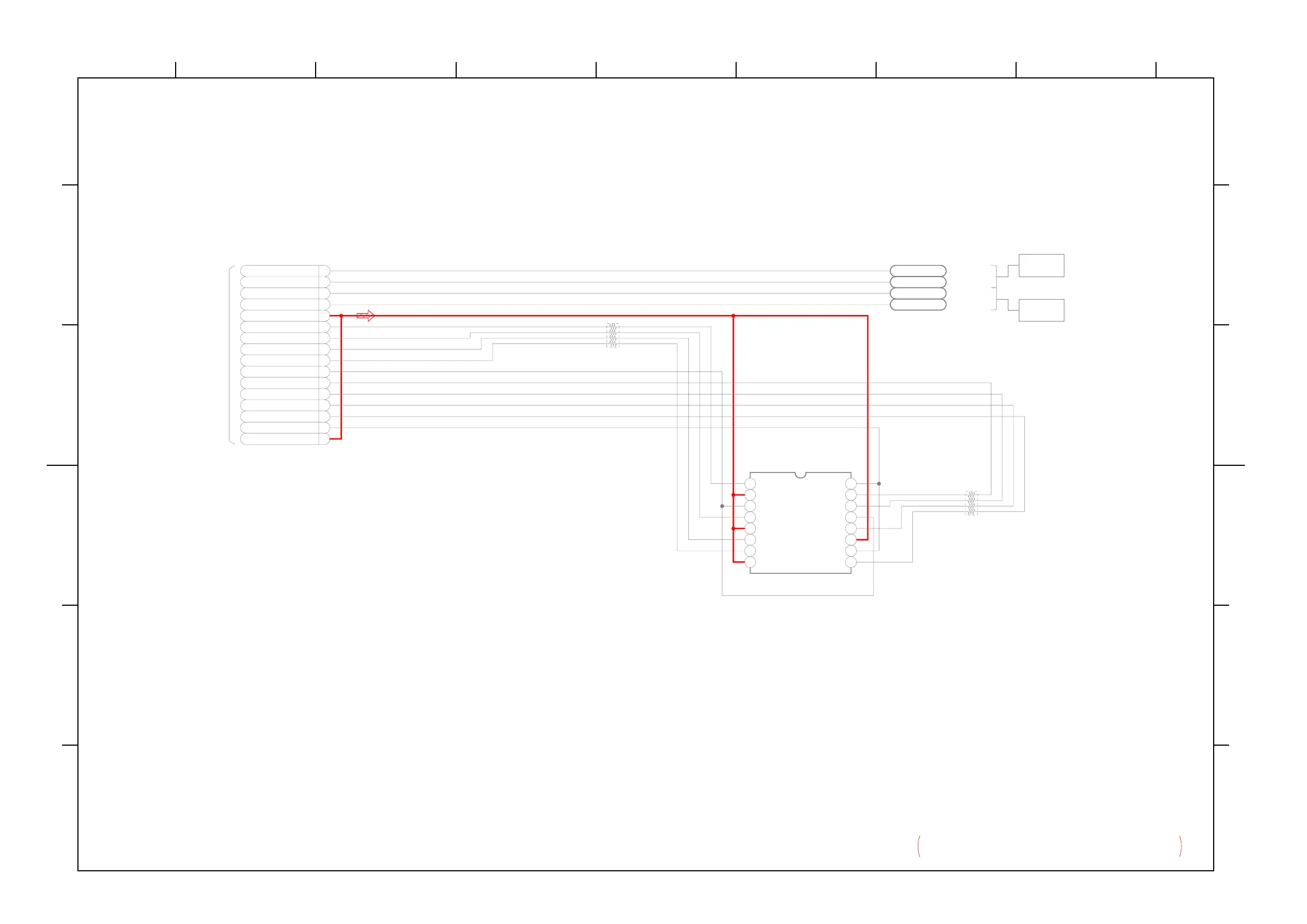

Sony SLT-A58K - HOL-007 FLEXIBLE BOARD

SLT-A58K/A58M/A58Y_L3
6-25
AM-1001
(14/20)
CN3301
(PAGE 6-17)
Note: All mounted parts and HOL-007 FLEXIBLE
COMPLETE BOARD are not supplied, but they
are included in AS SLIDER UNIT (863 SERVICE).
POUT3P
HALLREG
POUT1P
POUT1N
PIN_P
POUT2N
POUT2P
BR_P2
POUT4N
BR_P1
PIN_Y
BR_Y2
POUT4P
POUT3N
BR_Y1
LN700116P
1
HALLREG
2
Pin_Y
3
Pout4p
4
Pout2p
5
Pout2n
6
Pout1p
7
Pin_P
8
Pout4n
9
Pout3p
10
Pout3n
11
Pout1n
12
HALLREG
13
BR_P2
14
BR_P1
15
BR_Y1
16
BR_Y2
RB7001
1k
1
2
3
4
5
6
7
8
IC7001
HALL ELEMENT
1
OUT1N
2
IN1P
3
IN3N
4
OUT3N
5
IN3P
6
OUT3P
7
OUT4N
8
IN4P
9
OUT4P
10
IN4N
11
IN2P
12
OUT2P
13
IN2N
14
OUT2N
15
OUT1P
16
IN1N
LN7002
BR_Y2
LN7005
BR_P2
LN7004
BR_P1
LN7003
BR_Y1
RB7002
1k
1
2
3
4
5
6
7
8
HQ-8220-T5
ACTUATOR
(YAW)
(PITCH)
ACTUATOR
12345 6 7 8 9
A
B
C
D
E
F
A
B
C
D
E
F
08
HOL-007 FLEXIBLE BOARD
HALL ELEMENT, ACTUATOR
HOL-007 FLEXIBLE COMPLETE BOARD is replace as AS SLIDER
UNIT (863 SERVICE), so that PRINTED WIRING BOARD is omitted.
