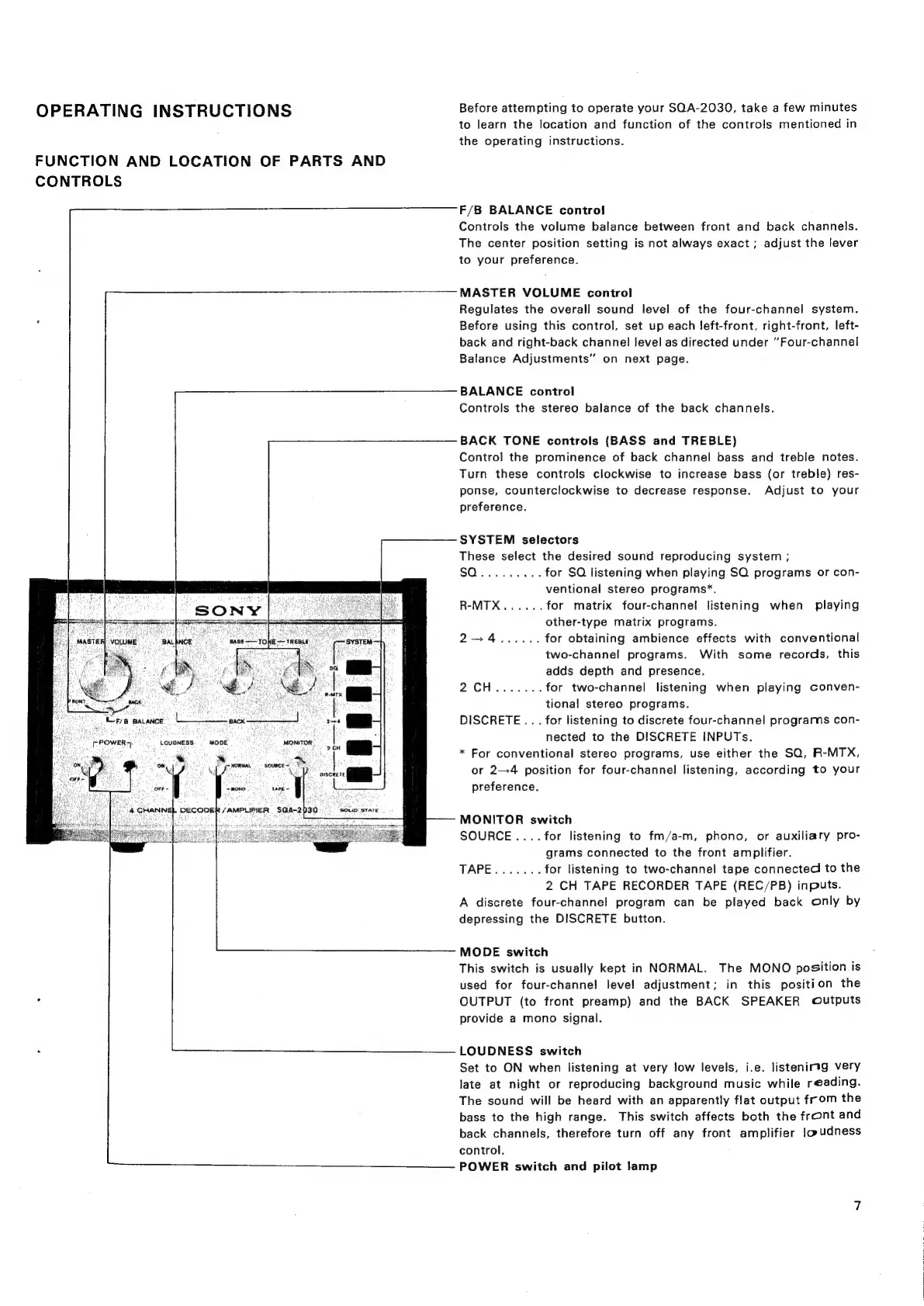

OPERATING INSTRUCTIONS
FUNCTION AND LOCATION OF PARTS AND
CONTROLS
F/B BALANCE emcee asl |
“ POWER: “ LQUONESS MODE MONITOR
~ *
NORMAL,” | SOURCE <
MONO WARE |
A GHANIvEL DECODER /AMPLIFIER SGA-2)30
a ot)
oiscnere Pe
SOUND STATE
Before attempting to operate your SOA-2030, take a few minutes
to learn the location and function of the controls mentioned in
the operating instructions.
F/B BALANCE controf
Controls the volume balance between front and back channels.
The center position setting is not always exact; adjust the lever
to your preference.
MASTER VOLUME control
Regulates the overall sound level of the four-channel system.
Before using this control, set up each left-front, right-front, left-
back and right-back channel level as directed under “Four-channel
Balance Adjustments” on next page.
BALANCE control
Controls the stereo balance of the back channels.
BACK TONE controls (BASS and TREBLE)
Control the prominence of back channel bass and treble notes.
Turn these controls clockwise to increase bass (or treble) res-
ponse, counterclockwise to decrease response, Adjust to your
preference.
SYSTEM selectors
These select the desired sound reproducing system ;
SQiet eden for SQ listening when playing SQ programs or con-
ventional stereo programs*.
R-MTX...... for matrix four-channel listening when playing
other-type matrix programs.
2->4...... for obtaining ambience effects with conventional
two-channel programs. With some records, this
adds depth and presence.
2°CHs Sas a8 for two-channel listening when playing conven-
tional stereo programs.
DISCRETE ... for listening to discrete four-channel programs con-
nected to the DISCRETE INPUTs.
* For conventional stereo programs, use either the SQ, R-MTX,
or 2-4 position for four-channel listening, according to your
preference.
MONITOR switch
SOURCE ....for listening to fm/a-m, phono, or auxiliary pro-
grams connected to the front amplifier.
TAPE sehen for listening to two-channel tape connected to the
2 CH TAPE RECORDER TAPE (REC/PB) inputs.
A discrete four-channel program can be played back only by
depressing the DISCRETE button.
MODE switch
This switch is usually kept in NORMAL. The MONO position is
used for four-channe! level adjustment; in this position the
OUTPUT (to front preamp) and the BACK SPEAKER outputs
provide a mono signal.
LOUDNESS switch
Set to ON when listening at very low levels, i.e. listenimg very
late at night or reproducing background music while reading.
The sound will be heard with an apparently flat output from the
bass to the high range. This switch affects both the front and
back channels, therefore turn off any front amplifier loudness
control.
POWER switch and pilot lamp
