SECTION 5

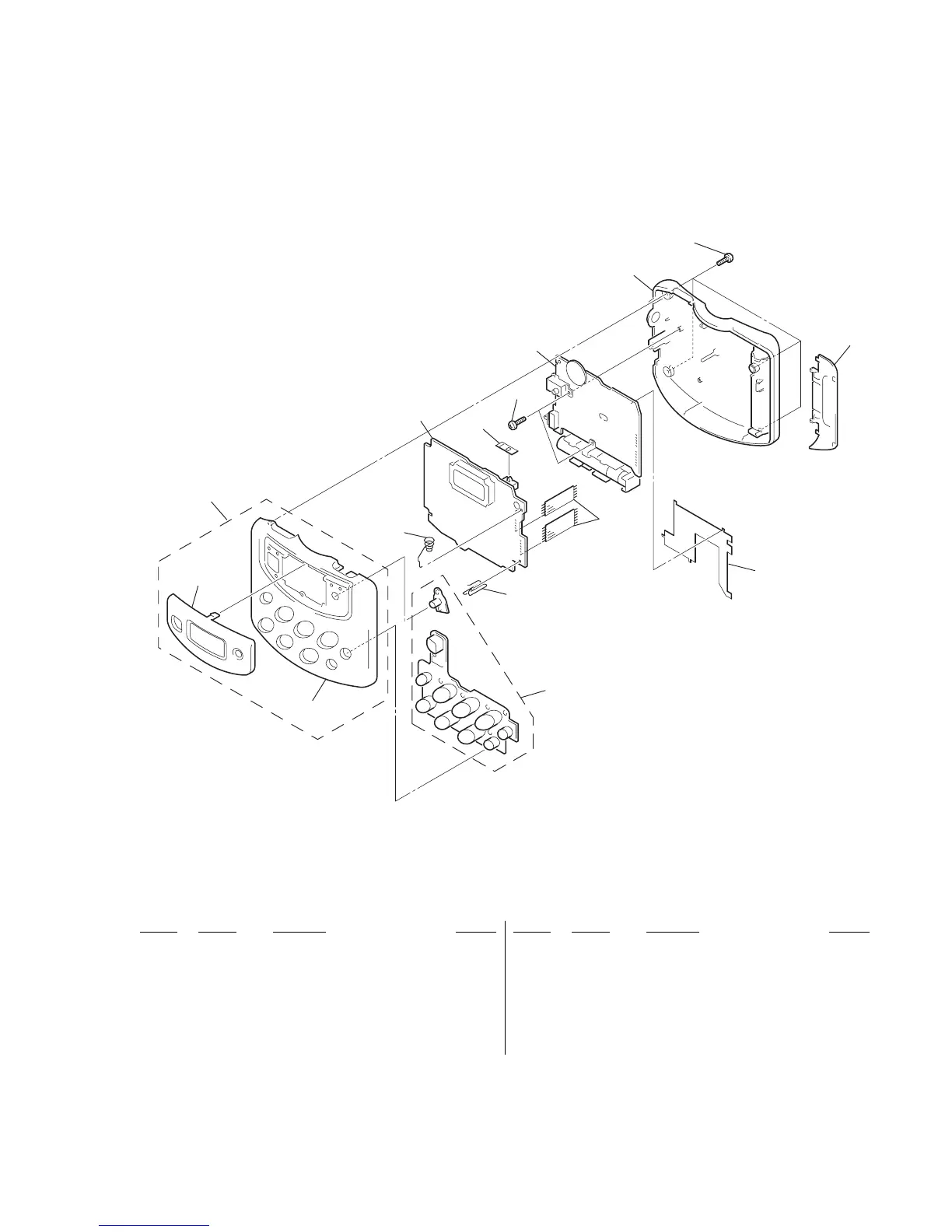

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
11
SRF-M37
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-247-142-11 CABINET (FRONT)
2 3-247-144-01 PANEL (FRONT)
3 X-3383-581-1 CABINET(FRONT) ASSY
4 1-786-468-21 SWITCH, RUBBER KEY (PRESET)
5 3-247-150-01 TERMINAL (-), BATTERY
* 6 A-3347-451-A KEY BOARD, COMPLETE
7 3-247-153-01 SHEET (HOLD)
1
13
7
8
11
7
10
5
3
2
4
6
12
9
not
supplied
8 3-318-203-11 SCREW (B1.7X6), TAPPING
* 9 A-3347-447-A MAIN BOARD, COMPLETE
10 3-247-143-11 CABINET (REAR)
11 3-247-145-01 LID, BATTERY CASE
12 3-250-687-01 SHIELD (B)
13 3-247-149-01 TERMINAL (+), BATTERY
To Next Page
