11

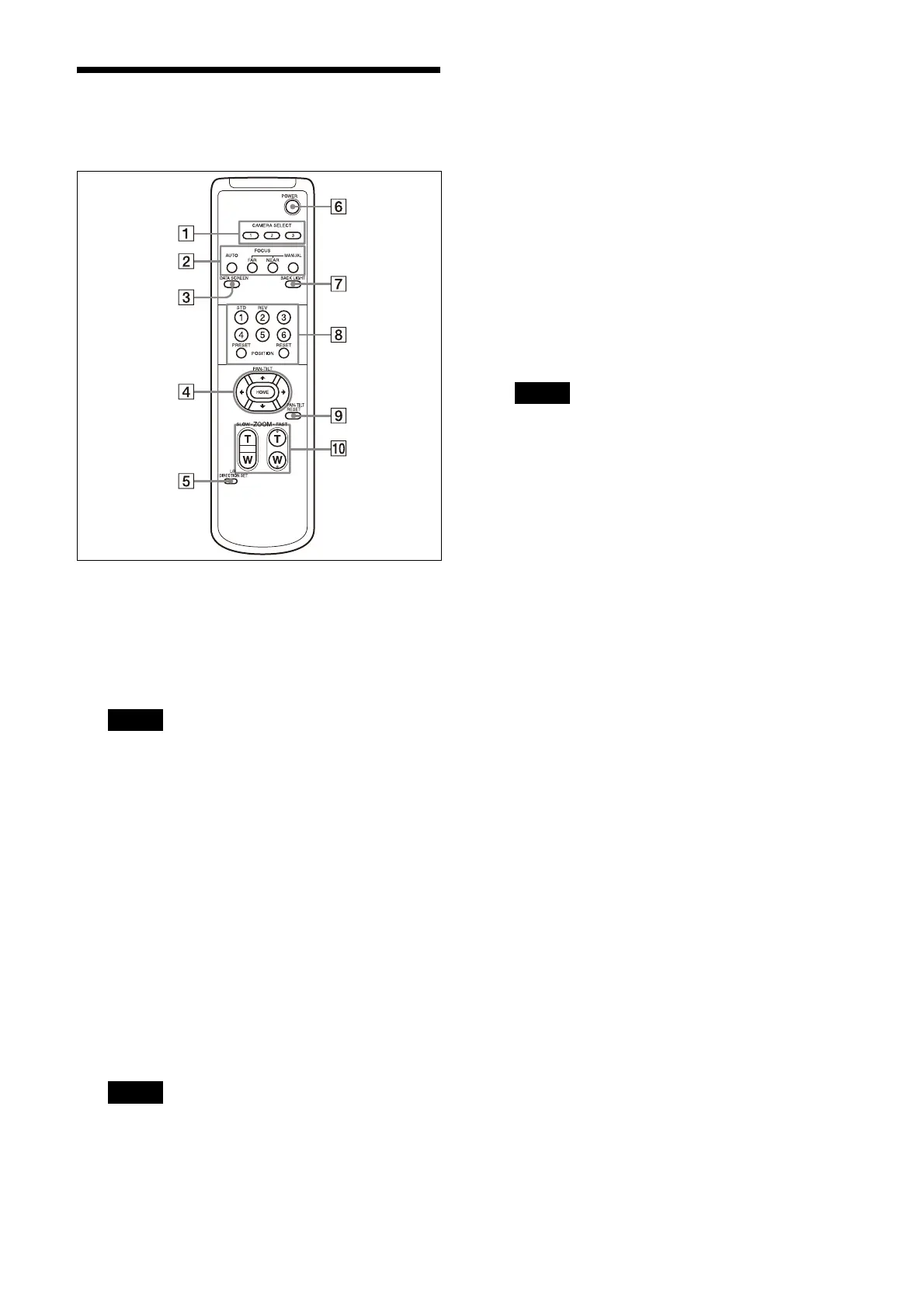

Infrared Remote Commander
(supplied)
CAMERA SELECT buttons
Press the button corresponding to the
camera you want to operate with the remote
commander. The camera number can be set
using the IR SELECT switch on the back of the
camera.
Note
If two or more cameras are adjacent and
have the same camera number, they are
operated simultaneously with the supplied
remote commander. When you install the
cameras close to each other, set different
camera numbers.
For setting of camera number, see
“Operating Multiple Cameras Using the
Infrared Remote Commander” (page 26).
FOCUS buttons
Used for focus adjustment.
Press the AUTO button to adjust the focus
automatically. To adjust the focus manually,
press the MANUAL button, and adjust it with
the FAR and NEAR buttons.
Note
Press the MANUAL button and adjust the
focus manually when shooting the following
objects.
White walls and other objects without
contrast
Objects behind glass
Objects with horizontal stripes
Objects on which bright lights are cast or
reflected
Nightscapes and other dark objects with
blinking lights
Lit objects shot with darkened exposure
adjustment or exposure compensation
settings
DATA SCREEN button
Press this button to display the main menu
PAGE. Press it again to close the menu. If you
press the button when a lower-level menu is
selected, the display goes back to a higher-
level menu.
Notes
You cannot perform pan/tilt/zoom
operations while the menu is displayed.
The menu is not displayed on the SDI
output image when the [Menu overlay
(SDI)] check box on the Administrator
menu is not selected.
The menu is not displayed on the HDMI
output image when the [Menu overlay
(HDMI)] check box on the Administrator
menu is not selected.
PAN-TILT button
Press the arrow buttons to pan or tilt the
camera. Press the HOME button to face the
camera back to the front.
When the menu is displayed, use or to
select the menu items and or to change
the set values.
The selected setting menu is displayed by
pressing the HOME button when the main
menu is displayed.
L/R DIRECTION SET button
Hold down this button and press the REV
button to change the direction of the camera
movement to be opposite the direction of
the arrows on the and buttons. To reset
the direction of the camera movement, press
the STD button while holding down this
button.
POWER button
Press this button to turn on power or to put
the camera in the standby mode.
BACK LIGHT button
Press this button to enable backlight
compensation. Press it again to disable
backlight compensation.
