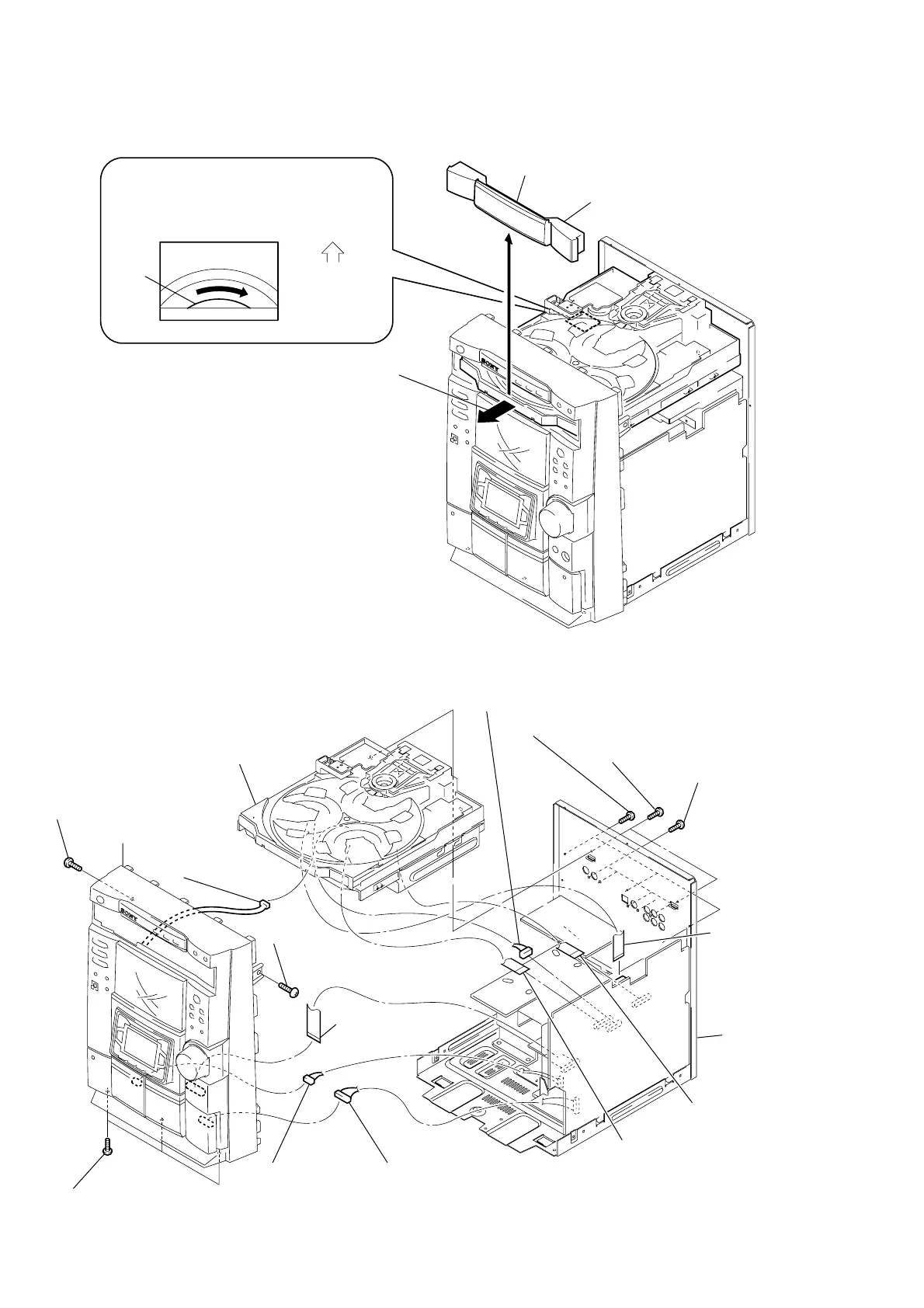

2-2. LOADING PANEL
2-3. FRONT PANEL SECTION, DVD MECHANISM DECK (CDM58D)
2 pull-out the disc tray.
4 pull-out the disc tray.
loading panel
1 turn the pulley to the direction of arrow.
pulley
front panel side
DVD mechanism deck (CDM58D)
3
qf two screws (+BVTP 3 × 8 )
qd five screws
(+BVTP 3
× 8 )
qg three screws (+BVTP 3 × 8 )
qa connector (CN204)
3 screw (+BVTP 3 × 10)
2 screw
(+BVTP 3
× 10)
1 connector (CN601)
8 connector (CN2)
7 connector (CN1)
6 flat type wire (CN1001)
chassis section
4 three screws (+BVTT 3 × 8)
5 front panel section
qh DVD mechanism deck (CDM58D)
9 flat type wire
(CN203)
0 flat type wire
(CN502)
qs flat type wire
(CN501)
