Sony SS-DP1000D - Tape Mechanism Deck Section-2 (TCM-230 AWR41)

69
HCD-DP1000D
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

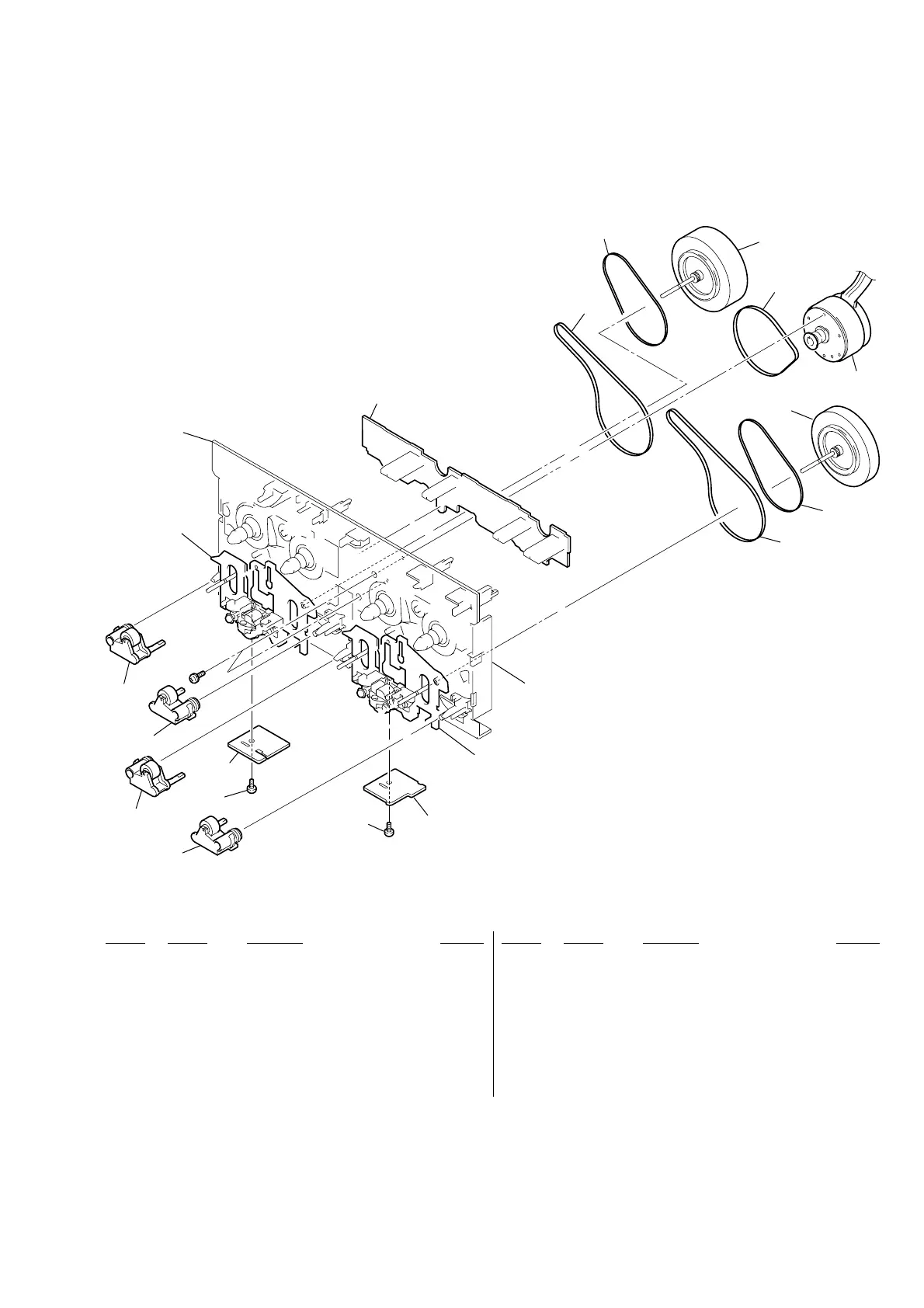

7-5. TAPE MECHANISM DECK SECTION-2
(TCM-230AWR41)
• The thing that a part A doesn’t curve is TCM-230AWR41.
201
207
207
205
210
206
206
208
211
209
201
202
202
214
203
204
212
215
213
214
#8
Note: Two different types of tape mechanism are used depending on models.
They maintain compatibility as an entire mechanism even though
there are some different parts are used.
A
201 X-3374-156-5 PINCH LEVER (REV) ASSY
202 X-3374-155-4 PINCH LEVER (FWD) ASSY
203 A-2007-839-A HEAD (A) MOUNTED PC BOARD
204 A-2007-840-A HEAD (B) MOUNTED PC BOARD
205 A-2007-838-A LEAF SW BOARD, COMPLETE
206 3-041-946-01 BELT (CAPSTAN B)
207 3-041-947-01 BELT (FR)
208 4-227-239-01 BELT (CAPSTAN C)
209 X-3378-241-1 MOTOR ASSY
210 X-3378-040-1 FLYWHEEL (A-FWD) ASSY
211 X-3378-042-1 FLYWHEEL (B-FWD) ASSY
212 A-2004-755-A BASE (B) ASSY, HEAD
213 A-2004-754-A BASE (A) ASSY, HEAD
214 4-227-872-11 SCREW (+PTT 2X4), GROUND POINT
215 A-2004-792-A CHASSIS ASSY, MAIN
