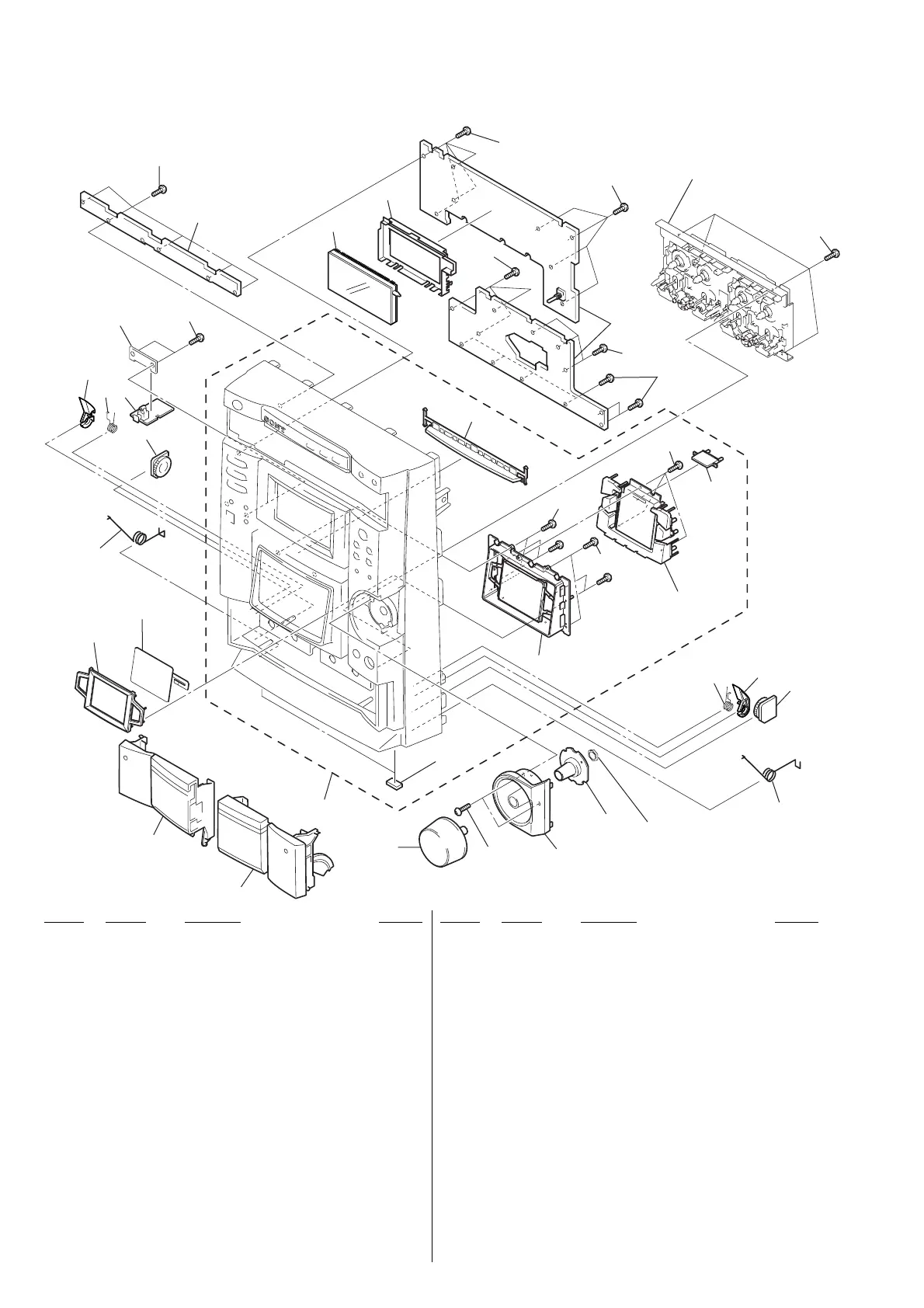

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
Tape mechanism deck
#3
#3
51
FL1101
not supplied
not
supplied
not supplied
52
70
71
53
54
55
56
69
68
59
60
61
58
66
70
67
66
64
63
73
60
62
70
70
70
70
70
70
70
70
72
70
70
74
Supplied with S1101
51 4-231-804-01 KNOB (VOL)
52 4-231-803-01 RING (VOL)
53 X-4953-340-1 LID (B) ASSY, CASSETTE
54 X-4953-339-1 LID (A) ASSY, CASSETTE
55 X-4954-177-1 PANEL ASSY, FRONT (US)
55 X-4954-178-1 PANEL ASSY, FRONT (AEP,UK)
55 X-4954-179-1 PANEL ASSY, FRONT
(AUS,E,E91,EA,MX,SP,MY,TH)
55 X-4954-195-1 PANEL ASSY, FRONT (CND)
56 4-225-252-01 CUSHION (FOOT)
58 4-231-814-01 ESCUTCHEON (PAD)
59 4-231-838-01 SPRING (TC-B)
60 4-224-104-11 DAMPER
61 4-231-841-01 SPRING (HEART CAM-B)
62 4-231-837-01 SPRING (TC-A)
63 4-231-836-01 SPRING (HEART CAM-A)
64 1-680-279-11 OPT IN BOARD
66 A-4727-117-A PANEL BOARD, COMPLETE (including CD
PANEL BOARD) (US)
66 A-4727-133-A PANEL BOARD, COMPLETE (including CD
PANEL BOARD) (CND)
66 A-4727-141-A PANEL BOARD, COMPLETE (including CD
PANEL BOARD) (AEP,UK)
66 A-4727-155-A PANEL BOARD, COMPLETE (including CD
PANEL BOARD) (AUS,E,E91,EA,MX,SP,MY)
66 A-4727-219-A PANEL BOARD, COMPLETE (including CD
PANEL BOARD) (TH)
67 4-224-584-01 HOLDER FL
68 1-796-001-11 TOUCH PAD
69 4-231-815-01 HOLDER (PAD)
70 4-951-620-01 SCREW (2.6X8), +BVTP
71 4-234-763-01 COVER (VOL)
72 4-231-818-01 INDICATOR (BLUE)
73 4-231-824-01 HEART CAM (A)
74 4-231-825-01 HEART CAM (B)
FL1101 1-518-722-11 INDICATOR TUBE, FLUORESCENT
