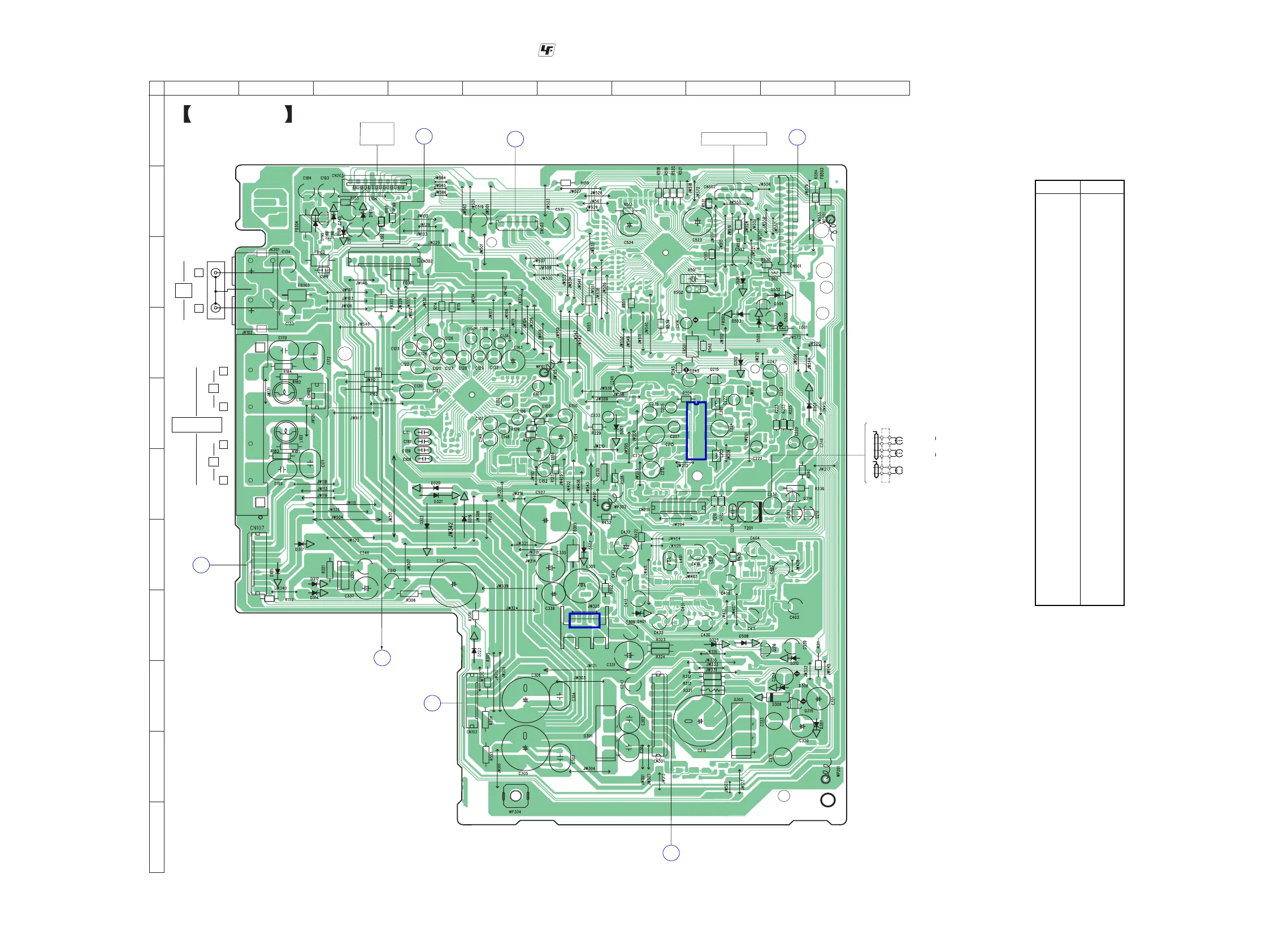

7-2. PRINTED WIRING BOARD — MAIN SECTION-1 —
• See page 21 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D105 G-2
D196 B-2
D197 B-3
D198 B-3
D199 B-3
D201 E-7
D301 I-6
D302 I-8
D306 I-8
D307 I-9
D308 I-8
D310 H-9
D312 G-2
D314 H-2
D317 G-2
D319 G-4
D320 F-4
D321 F-4
D322 F-4
D323 H-5
D401 H-7
D501 E-9
D502 C-9
D503 D-8
D505 D-8
D507 G-6
D508 H-8
IC201 E-8
IC301 H-6
Q198 B-3
Q212 F-9
Q213 F-9
Q214 F-9
Q215 D-8
Q313 G-3
Q315 I-9
Q316 H-8
Q504 C-8
A
KEY BOARD
CN601
(Page 32)
B
TUNER
PACK
H
AMP BOARD
CN108
(Page 36)
I
AMP BOARD
CN102
(Page 36)
E
AMP BOARD
CN106
(Page 36)
D
POWER BOARD
FW901
(Page 36):
(E2,E3,E51,SP,TW MODELS)
(US,CND MODELS)
(SUPPLEMENT-1:Page 3):
(AEP,UK,RU,KR,AUS MODELS)
C
MPEG BOARD
J702
(Page 29)
DOWN LOAD PORT
IC201
IC301
MPEG BOARD
J701
(Page 29)
MAIN BOARD
L
R
+
–
–
+
TV
IN
L
SPEAKER
IMPEDANCE USE 6Ω
R
HEAD
(PLAYBACK/ERASE)
L-CH
R-CH
ERASE
HEAD
REC/PB
HEAD
12
A
B
C
D
E
F
G
H
I
J
K
345678910
