Sony SS-M40D - Section 2 Exploded Views; Exploded View - SS-M20;M20 D;M40 D

6
SS-M20/M20D/M40D/M60D/M80D/WM80D
The components identifi ed by mark
9
con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9
contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est rem-
placé et / ou réparé.

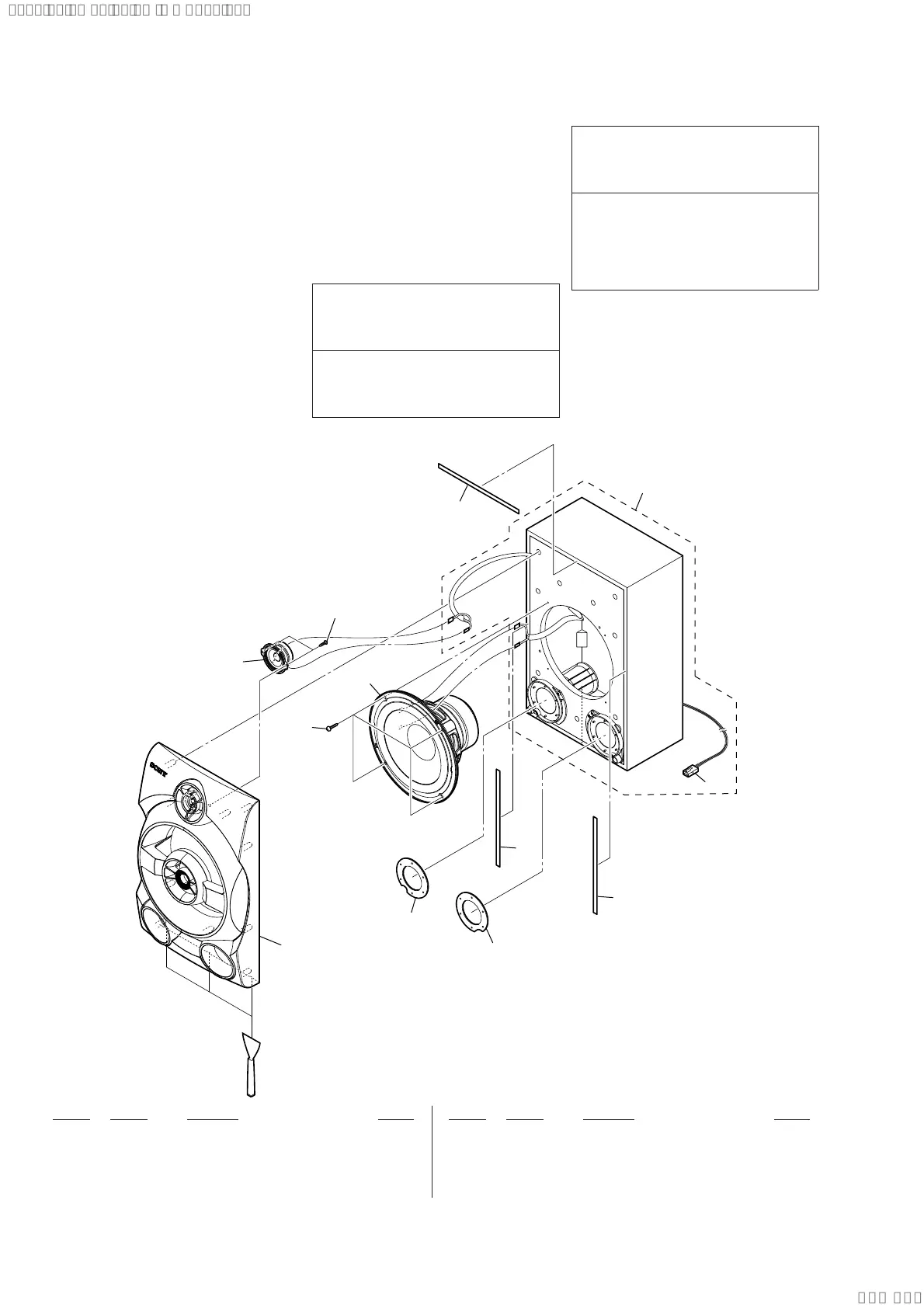

SECTION 2
EXPLODED VIEWS
2-1. SS-M20/M20D/M40D
1 4-874-614-02 SCREW (1) (3.5X14), TAPPING
2 1-859-271-11 LOUDSPEAKER (5CM) (M20/M20D)
2 1-859-275-11 LOUDSPEAKER (5CM) (M40D)
3 4-725-971-01 PANEL, FRONT
4 4-238-407-02 SCREW (1) (4X20), +BV TAPPING (M20)
4 4-238-407-12 SCREW (1) (4X20), +BV TAPPING (M20D/M40D)
5 1-859-259-11 LOUDSPEAKER (20CM) (M40D)
5 1-859-285-11 LOUDSPEAKER (20CM) (M20/M20D)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some diff erence from the
original one.
• Items marked “
*
” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
AUS : Australian model
BR : Brazilian model
CND : Canadian model
E4 : African model
E93 : 240 V AC area in E model
LA9 : Latin-American model
MY : Malaysia model
RU : Russian model
The components identified by mark
0
or dotted line with mark
0
are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
Ver. 1.1
ns
ns
ns
ns
1
2
4
3
5
ns
ns
ns
