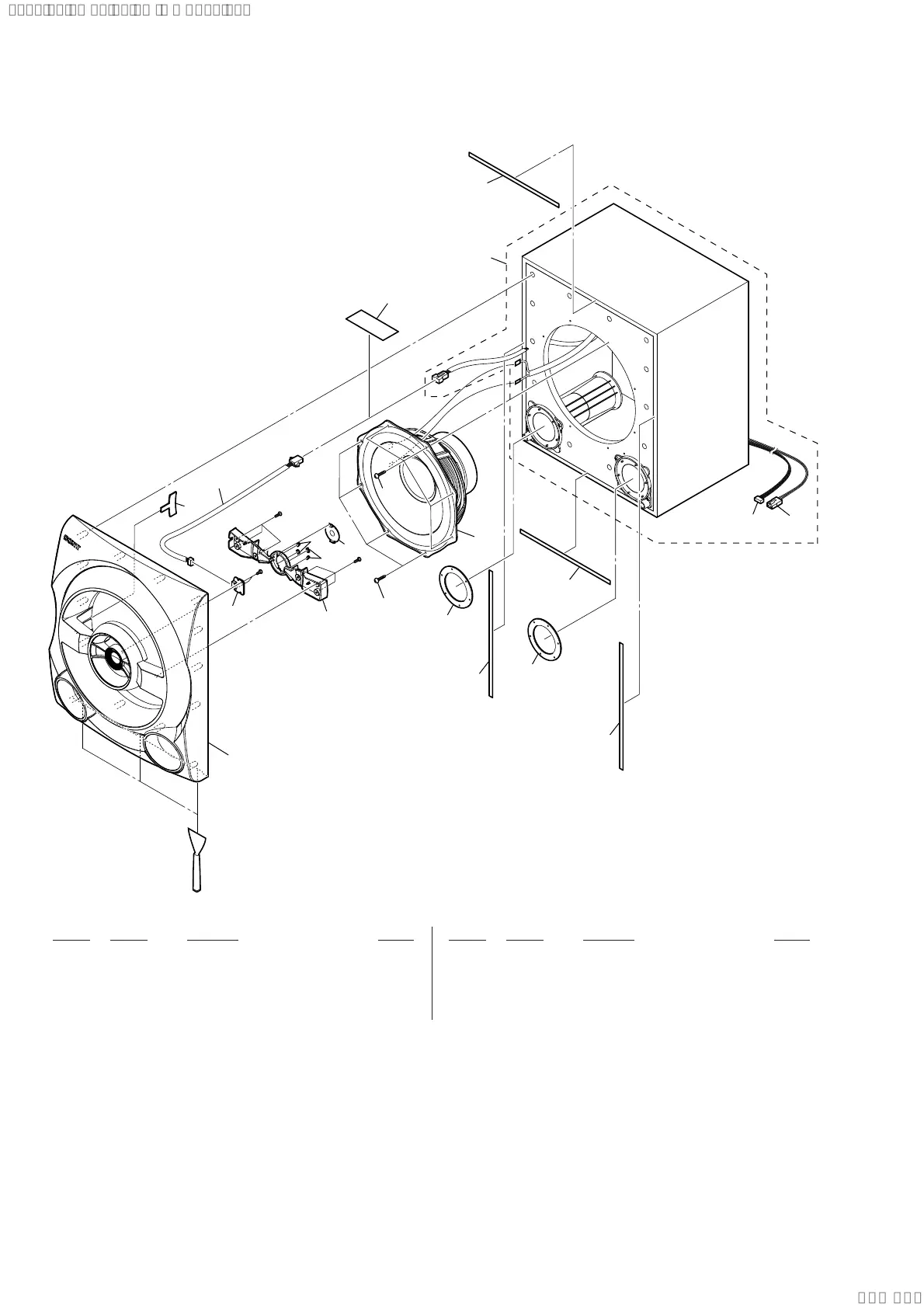

Sony SS-M40D - Exploded View - SS-WM80 D

8
SS-M20/M20D/M40D/M60D/M80D/WM80D
2-3. SS-WM80D
101 A-2192-741-A SW SPK LED BOARD, COMPLETE
102 1-912-386-21 CABLE WITH CONNECTOR
103 4-725-959-01 PANEL, FRONT
104 4-238-407-12 SCREW (1) (4X20), +BV TAPPING
105 1-859-274-11 LOUDSPEAKER (25CM)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
#3
#1
#3
104
101
103
102
105
104
ns
ns
