HCD-RG60
SECTION 1
SERVICE NOTE
1
Connector
13p (CN712)
2
Cut the seven melted-connection points
with a cutting plier.
4
Cut the six melted-connection points
with a cutting plier.
3
Panel board
5
Key boar
Panel board
(ten screw holes)
Key board
(eight screw holes)
Screw hole

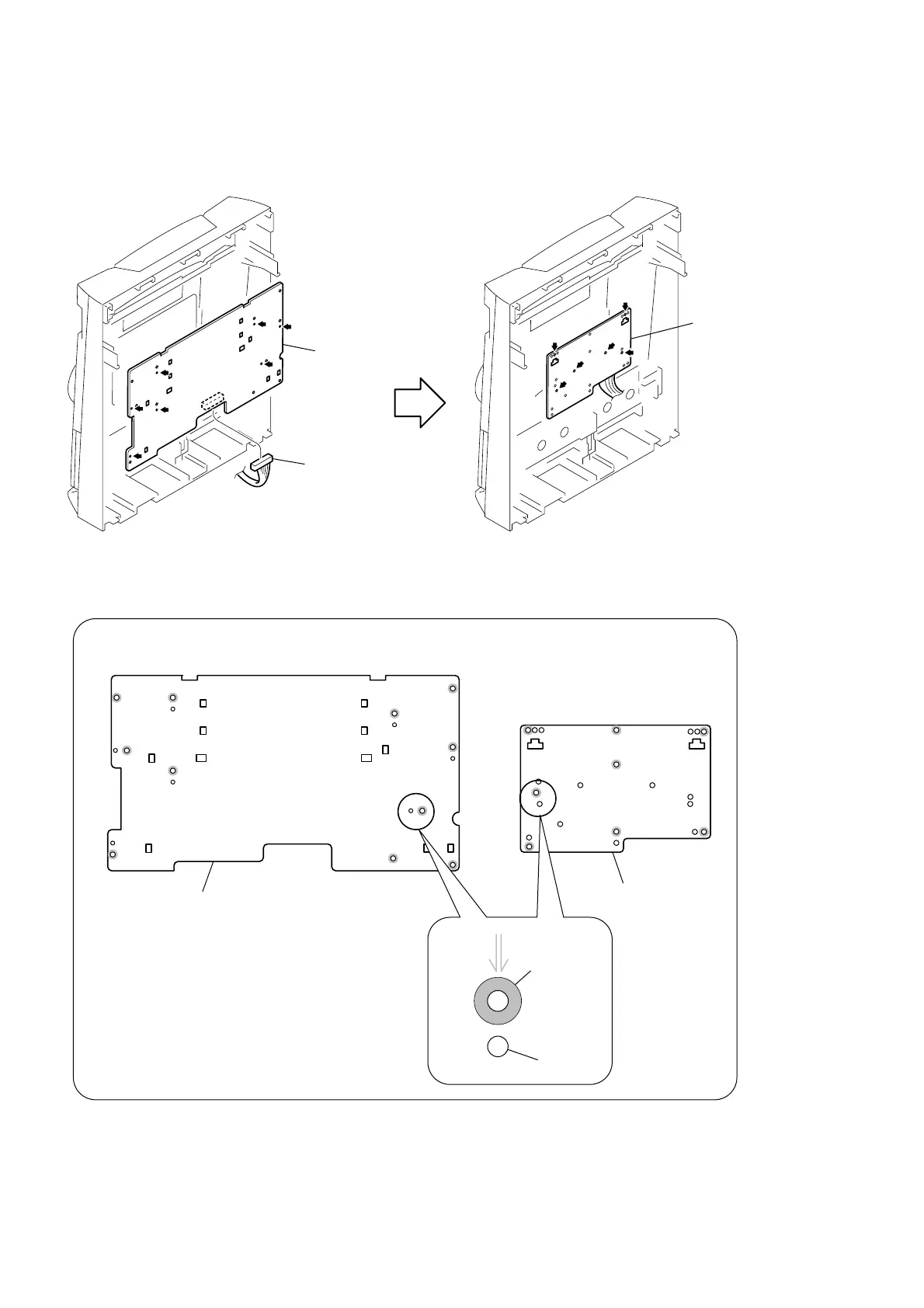

In order to re-install the panel board and the key board,
fix them by using the screws (+BVTP 2.6
×
8 ) respectively.
Screw in to the respective screw holes.
Do not tighten the screws excessively.
* The panel board and the key board only are connected to the front panel
by means of hot-melting the plastics.
Note for installing the panel board and the key board
REMOVING THE PANEL BOARD AND THE KEY BOARD
Hot melt
