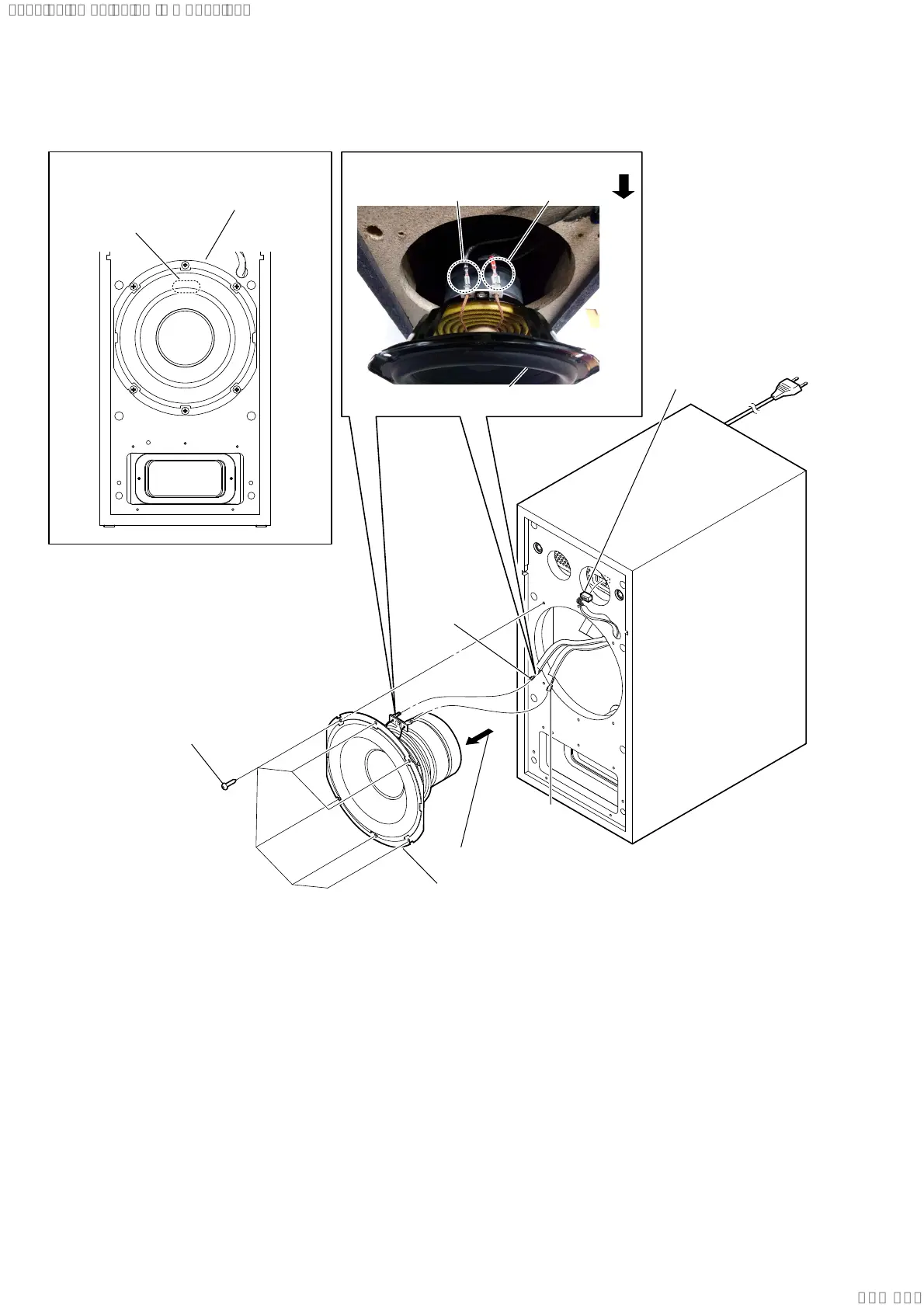

2-3. LOUDSPEAKER 16CM
– Front view –
1 six screws ((1) (4 x 20), +BV TAPPING)
5 CN1001 (4P)
2 Remove the loudspeaker 16cm
in the direction of the arrow.
4 loudspeaker 16cm
3 terminal
(narrow side)
3 terminal
(wide side)
loudspeaker 16cm
loudspeaker 16cm
terminal position
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU
FP
terminal (wide side)
:LUHVHWWLQJ
front side
terminal (narrow side)
