Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
HT-RT3
34
USB
< IC >
IC5001 6-600-629-01 IC RS-470
*************************************************************
SPEAKER CHUKEI PC BOAR BOARD
*****************************
< TRANSFORMER >
TB6000 1-780-454-11 TERMINAL BOARD (SPEAKER) 4P
TB6001 1-780-815-11 TERMINAL BOARD (SPEAKER)
*************************************************************
TOUCH BOARD
************
< CONNECTOR >
CN4001 1-816-654-61 FFC/CONNECTOR, FPC (LIF) 6P
< IC >
IC4001 6-722-496-01 IC CY8CMBR3108-LQXIT
IC4002 6-713-333-01 IC PST8429UL
*************************************************************
A-2089-365-A USB BOARD, COMPLETE
********************
< CONNECTOR >
CN7000 1-843-975-11 USB CONNECTOR (A)
*************************************************************
MISCELLANEOUS
**************
3 8-989-602-00 RC-S730 (WW)
4 1-828-156-51 WIRE (FLAT TYPE) (6 CORE)
6 1-828-230-51 WIRE (FLAT TYPE) (20 CORE)
10 1-859-169-21 LOUDSPEAKER 16CM
54 1-828-218-51 WIRE (FLAT TYPE) (18 CORE)
55 1-493-097-11 BLUETOOTH MODULE
0 102 1-855-244-11 DC FAN
104 1-828-228-51 WIRE (FLAT TYPE) (20 CORE)
0 105 4-966-267-12 BUSHING (FBS001), CORD
0 106 1-834-966-42 POWER-SUPPLY CORD (AEP, SP, LA9)
0 106 1-835-068-21 CORD, POWER (AUS)
0 106 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 106 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 106 1-839-999-22 POWER-SUPPLY CORD (UK, EA)
0 106 1-848-053-12 POWER-SUPPLY CORD (E12)
0 107 1-474-638-11 REGULATOR, SWITCHING 3L405W-2
(EXCEPT E12)
0 107 1-474-638-21 REGULATOR, SWITCHING 3L405W-3 (E12)
*************************************************************

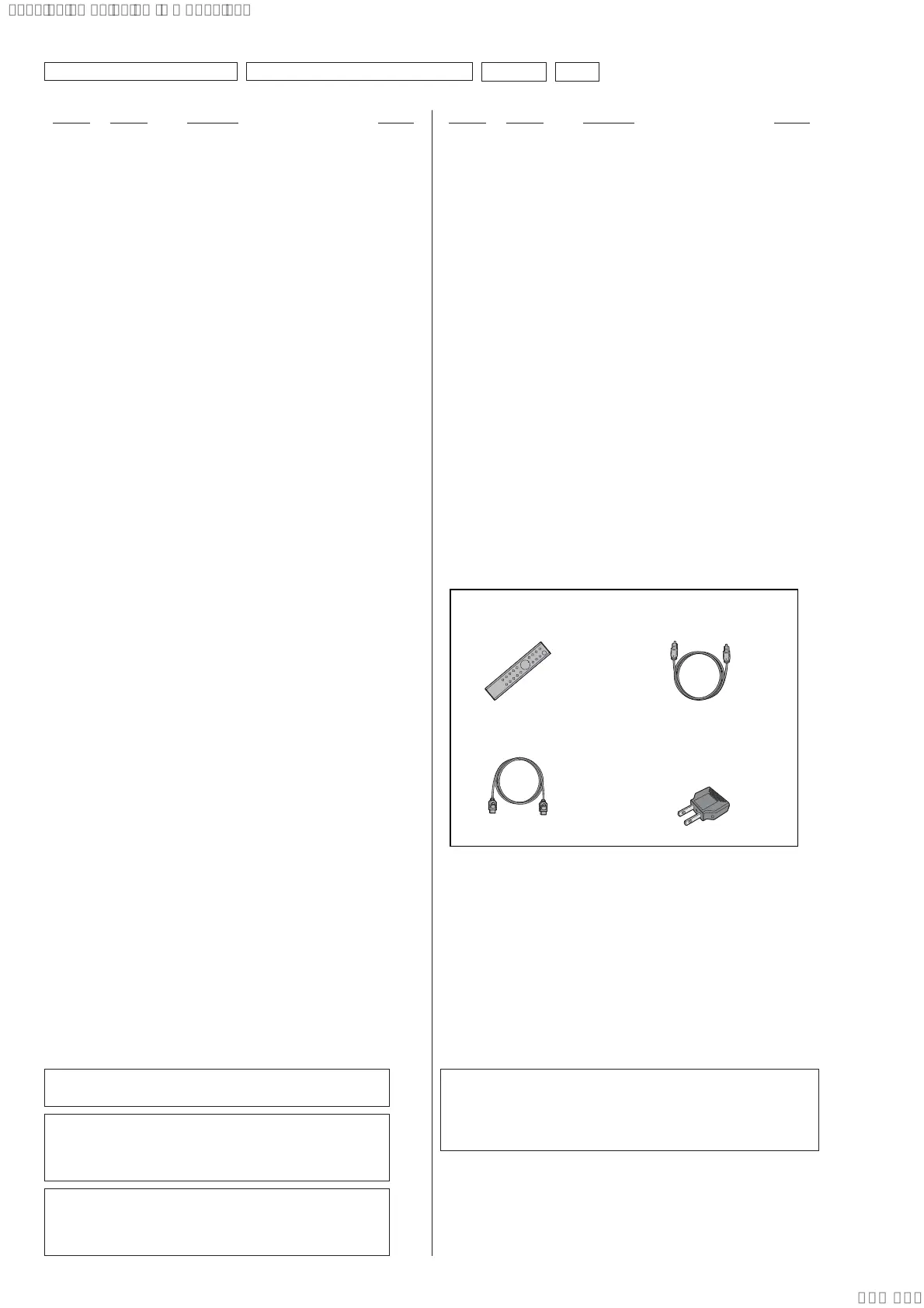

501 Remote control (1) 502 Optical digital cable (1)
(US, CND, AEP, UK)
503 High Speed HDMI cable (1)
(EA, SP, AR, AUS, E12, LA9)
504 AC plug adaptor* (1) (LA9)
* The adaptor is not use in Chile,
Uruguay and Paraguay. Use the adaptor
in the countries where it is neccessary.
Note 1: If wire (fl at type) is replaced, install it after bending it
in the same form as that before replacement.
Note 2: When the REGULATOR, SWITCHING 3L405W
board is replaced, spread the bond referring to
“BOND FIXATION OF ELECTRIC PARTS” on page
6.
Note 3: When the BLUETOOTH MODULE or RC-S730
(WW) is replaced, refer “NOTE OF REPLACING
BLUETOOTH MODULE OR RC-S730 (WW)” on
page 5.
Ver. 1.6
TOUCH
ACCESSORIES
************
4-587-771-14 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH) (US, CND)
4-587-771-24 MANUAL, INSTRUCTION
(ENGLISH) (UK, SP, AUS, E12) (See Note 4)
4-587-771-34 MANUAL, INSTRUCTION
(FRENCH, SPANISH, GERMAN) (AEP)
(See Note 4)
4-587-771-44 MANUAL, INSTRUCTION
(DUTCH, ITALIAN, POLISH) (AEP) (See Note 4)
4-587-771-52 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE, FRENCH, ARABIC,
PERSIAN) (SP)
4-587-771-62 MANUAL, INSTRUCTION
(ENGLISH, ARABIC) (EA)
4-587-771-72 MANUAL, INSTRUCTION (SPANISH) (LA9)
4-587-771-82 MANUAL, INSTRUCTION (SPANISH) (AR)
501 1-493-155-11 REMOTE COMMANDER RMT-AH200U
(Remote control)
502 1-848-225-21 CABLE, LIGHT PLUG (Optical digital cable)
(US, CND, AEP, UK)
503 1-849-353-11 HDMI CABLE (High Speed HDMI cable)
(EA, SP, AR, AUS, E12, LA9)
0 504 1-785-504-21 ADAPTOR, CONVERSION (AC plug adaptor) (LA9)
SPEAKER CHUKEI PC BOAR
(AEP, UK only)
Note 4: The instruction manual of AEP and UK has been changed
in the midway of production.
Refer to “CHANGE OF MAIN BOARD AND INSTRUC-
TION MANUAL” on page 5 for details.
OLED CHUKEI PC BOAR
SYSSET
