– 30 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

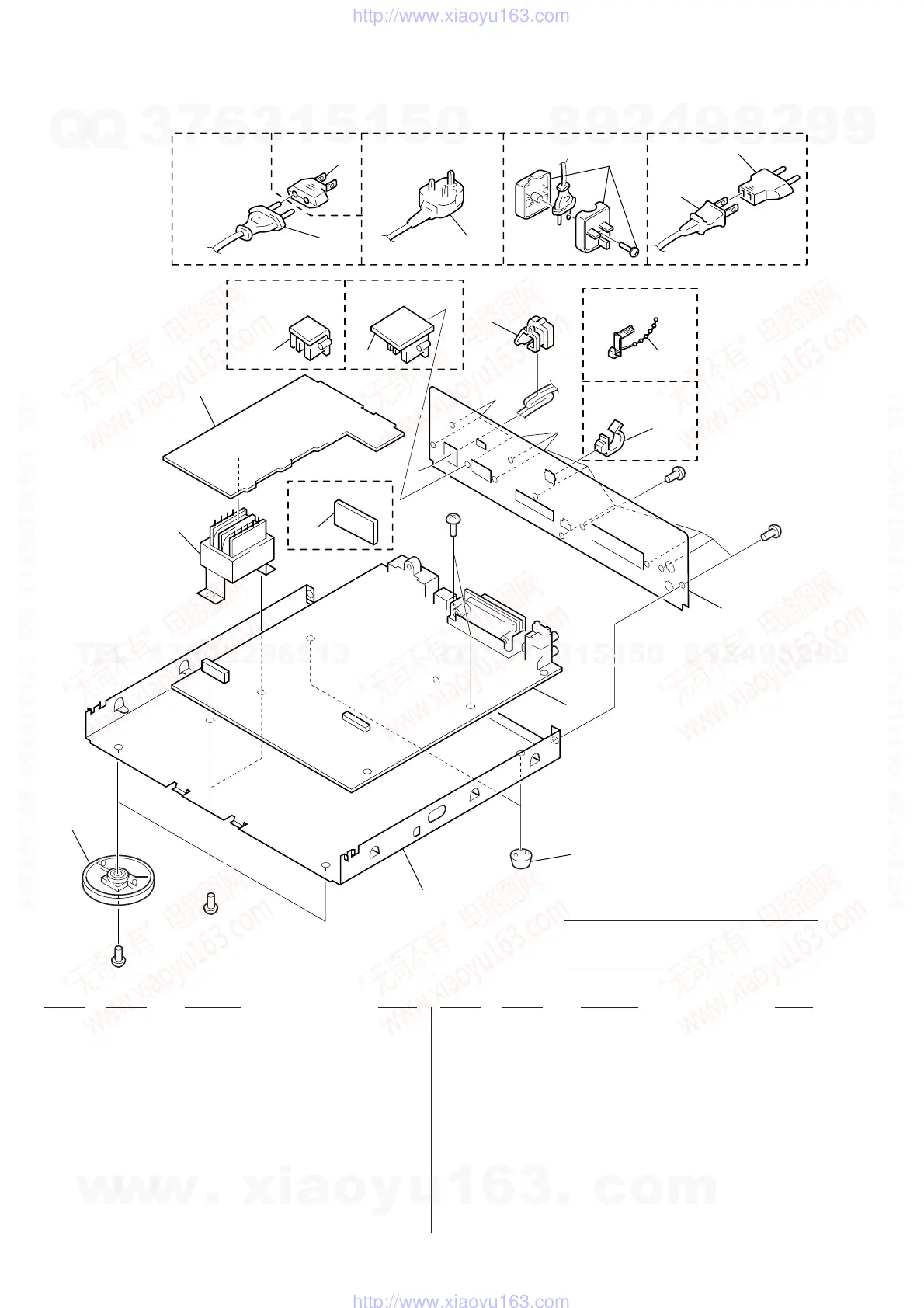

(2) CHASSIS SECTION
51
52
53
56
55
#3
T701
54
#1
#2
not supplied
57
#1
#2
60
AEP, UK
AEP, UK, MY, SP,
HK
JE
58
CN951
AEP, MY,SP,
HK
MY, SP UK HK JE
59
61
59
61
59
61
62
UK, HK
AEP, MY, SP, JE
51 X-4949-526-1 FOOT (F) ASSY
52 3-703-244-00 BUSHING (2104), CORD
* 53 4-949-235-01 HOOK (AEP, MY, SP, JE)
* 54 4-995-091-11 PANEL (ST), BACK (MY, SP, HK)
* 54 4-995-091-21 PANEL (ST), BACK (ST-EX880)
* 54 4-995-091-31 PANEL (ST), BACK (JE)
* 55 A-4407-399-A MAIN BOARD, COMPLETE (MY, SP, HK)
* 55 A-4407-876-A MAIN BOARD, COMPLETE (AEP, UK)
* 55 A-4407-885-A MAIN BOARD, COMPLETE (JE)
56 4-965-822-01 FOOT
* 57 1-667-607-11 TRANSFORMER BOARD
* 58 1-667-608-11 AC OUTLET BOARD (JE)
! 59 1-558-943-41 CORD, POWER (JE)
! 59 1-575-651-21 CORD, POWER (AEP, MY, SP, HK)
! 59 1-696-571-11 CORD, POWER (UK)
* 60 A-4407-877-A RDS BOARD, COMPLETE (AEP, UK)
! 61 1-569-007-11 ADAPTOR, CONVERSION 2P (JE)
! 61 1-569-008-11 ADAPTOR, CONVERSION 2P (MY, SP)
! 61 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
62 4-956-370-12 BAND, PLUG FIXED (UK, HK)
! CN951 1-526-794-11 OUTLET, AC (EXCEPT JE)
! T701 1-431-833-11 TRANSFORMER, POWER (ST-EX880)
! T701 1-431-834-11 TRANSFORMER, POWER (ST-MS717)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
