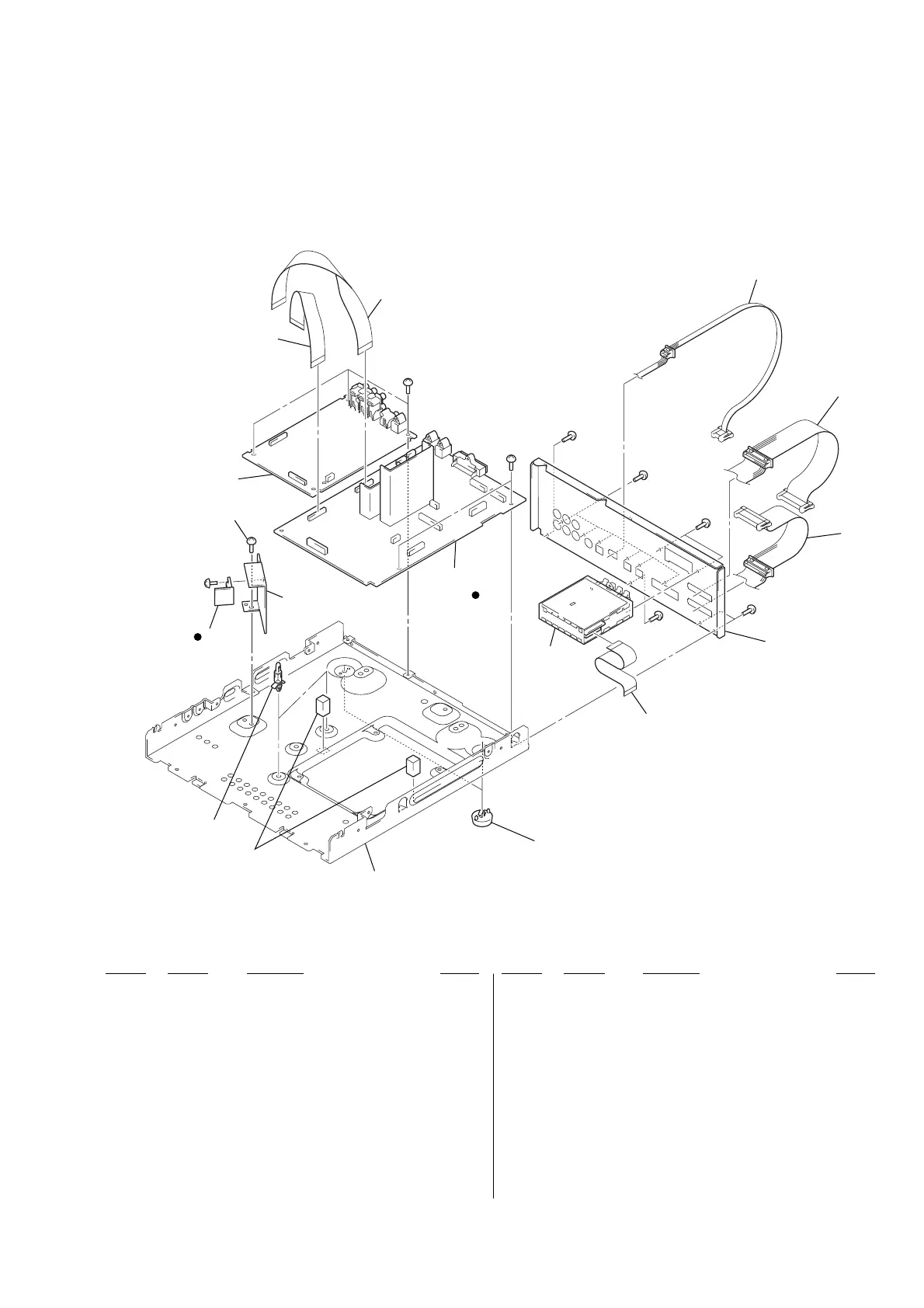

6-2. CHASSIS SECTION
54
55
53
63
#1
#1
not supplied
#1
#1
#1
#1
#1
#1
52
(Including A)
A
51
not supplied
not supplied
62
61
60
56
57
58
59
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 51 4-924-098-01 HOLDER, PC BOARD
52 A-2007-939-A MAIN BOARD, COMPLETE (MX)
52 A-4476-193-A MAIN BOARD, COMPLETE (AEP, UK)
52 A-4476-203-A MAIN BOARD, COMPLETE (KR, AUS)
53 A-4476-199-A DSP BOARD, COMPLETE (AEP, UK)
53 A-4476-646-A DSP BOARD, COMPLETE (MX)
53 A-4726-352-A DSP BOARD, COMPLETE (KR, AUS)
54 1-757-599-11 WIRE (FLAT TYPE) (21 CORE)
55 1-757-600-11 WIRE (FLAT TYPE) (23 CORE)
56 1-757-629-11 CORD (WITH CONNECTOR) 5P
57 1-757-631-11 CORD (WITH CONNECTOR) 20P
58 1-757-630-11 CORD (WITH CONNECTOR) 19P
59 4-232-327-01 PANEL (ST), BACK (AEP, UK)
59 4-232-327-11 PANEL (ST), BACK (AUS)
59 4-232-327-41 PANEL (ST), BACK (MX)
59 4-232-327-91 PANEL (ST), BACK (KR)
60 1-769-940-11 WIRE (FLAT TYPE) (11 CORE) (KR, MX, AUS)
60 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
61 1-693-529-11 TUNER PACK (FM/AM) (AEP, UK)
61 1-693-531-71 TUNER PACK (FM/AM) (MX, AUS)
61 1-693-538-11 TUNER PACK (FM/AM) (KR)
62 4-965-822-01 FOOT
63 3-970-608-01 SUMITITE (B3), +BV
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
