Sony ST-SP55 - Section 4 Exploded View; Case and Front Panel Assembly

12

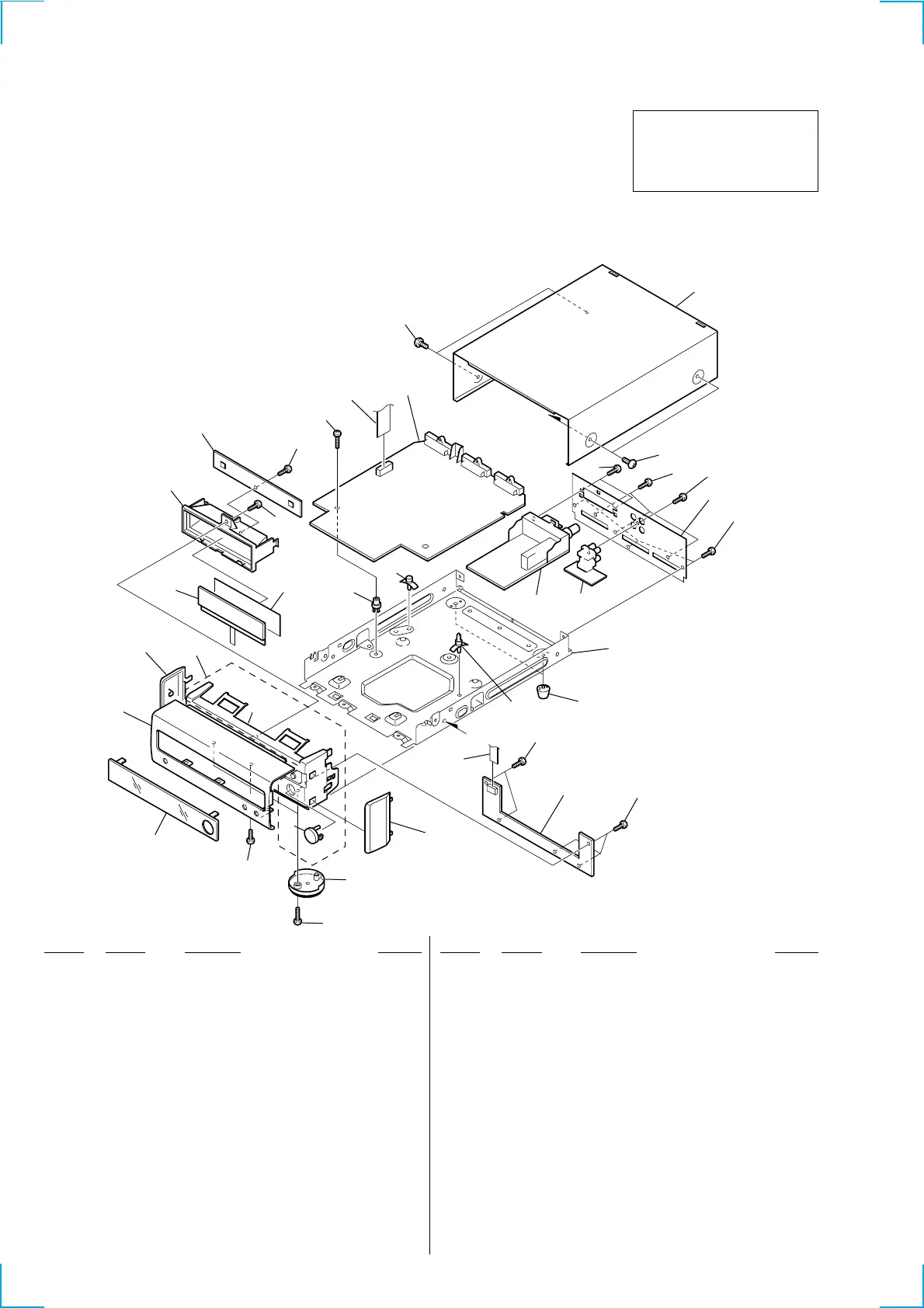

SECTION 4
EXPLODED VIEW
4-1. CASE AND FRONT PANEL
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Abbreviation
AED : North European model
MY : Malasia model
SP : Singapore model
HK : Hong Kong model
KR : Korea model
1 1-769-916-11 WIRE (FLAT TYPE) (9 CORE)
2 4-951-620-01 SCREW (2.6X8), +BVTP
3 1-678-671-11 PANEL BOARD
4 4-229-683-01 PLATE (R), SIDE
5 4-229-678-01 BUTTON (U/D)
6 X-4953-027-1 FOOT ASSY
7 4-229-677-01 WINDOW (LCD)
8 4-229-676-01 PANEL (ST), FRONT (AEP,UK,AED)
8 4-229-676-11 PANEL (ST), FRONT (HK,MY,SP,KR)
9 4-229-684-01 PLATE (L), SIDE
10 X-4953-022-1 PANEL ASSY (ST), SUB
11 4-229-680-01 ILLUMINATOR
12 4-229-679-01 HOLDER, LCD
13 1-678-672-11 LED BOARD
14 1-769-970-11 WIRE (FLAT TYPE) (13 CORE) (HK,MY,SP,KR)
14 1-773-002-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK,AED)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
15 A-4424-804-A MAIN BOARD, COMPLETE (AEP,UK,AED)
15 A-4473-725-A MAIN BOARD, COMPLETE (HK,MY,SP,KR)
16 3-363-099-51 SCREW (CASE 3 TP2)
17 4-229-687-11 CASE
18 4-229-686-01 PANEL, BACK (AEP,UK,AED)
18 4-229-686-21 PANEL, BACK (HK,MY,SP)
18 4-229-686-31 PANEL, BACK (KR)
19 1-693-482-11 TUNER (FM/AM) (HK,MY,SP,KR)
19 1-693-499-11 TUNER (FM/AM) (AEP,UK,AED)
20 1-678-673-11 PIN JACK BOARD
21 4-965-822-01 FOOT
22 4-924-098-11 HOLDER, PC BOARD
23 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
24 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S
25 7-685-650-79 SCREW +BVTP 3X16 TYPE2 N-S
LCD101 1-804-056-11 DISPLAY PANEL, LIQUID CRYSTAL
1
2
2
3
4
5
24
24
6
7
8
9
10
11
23
12
13
2
14
15
25
16
16
17
18
23
19
20
21
22
not supplied
not
supplied
LCD101
23
23
23
A
A
not supplied
not supplied
