6"

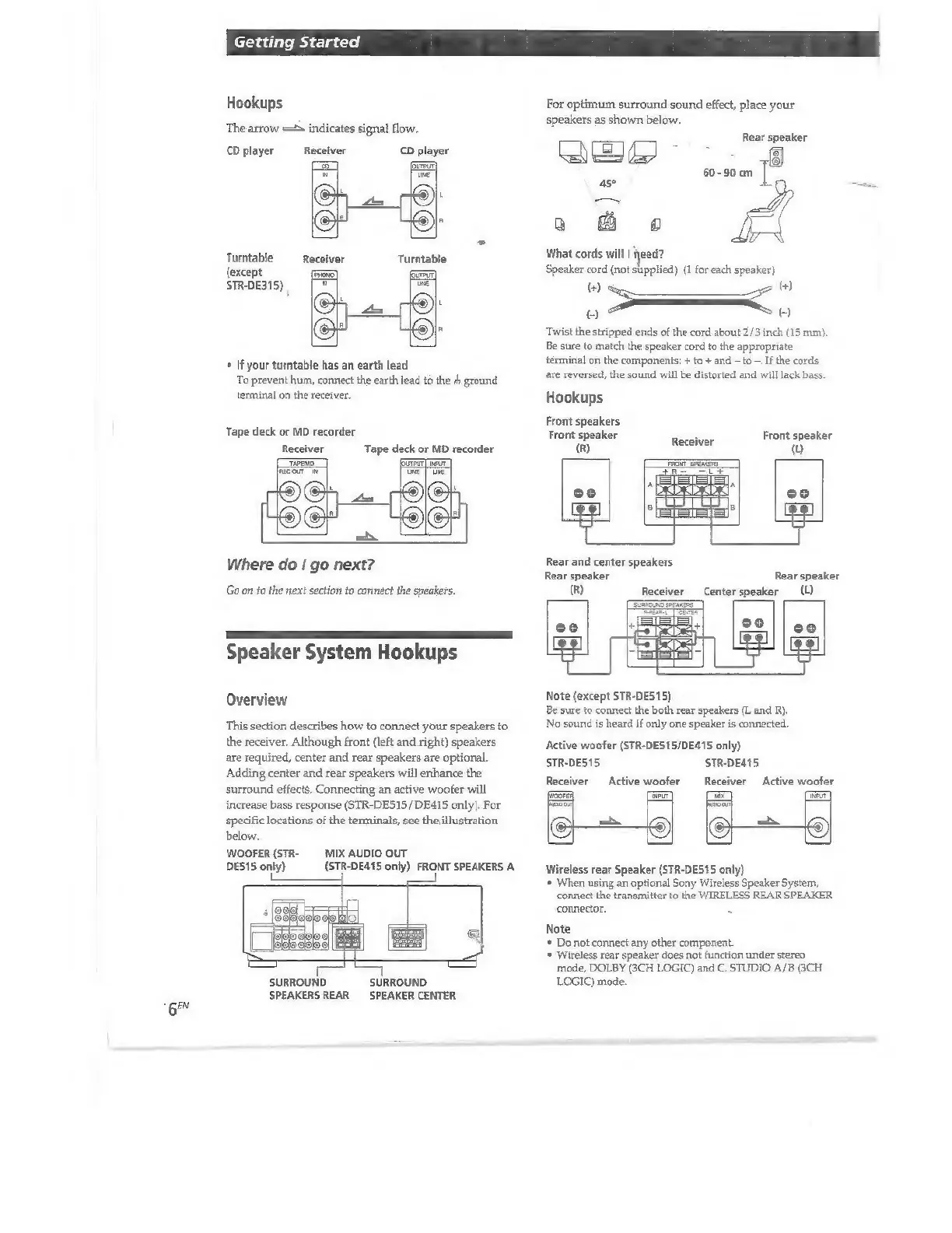

Get g Starte
Hookups
The arrow = indicates signal flow.
CD player Receiver CD player
e.
=
Turntable Receiver Turntable
(except ESS En
STR-DE315) x Pa
e Qu
(e er
* if your turntable has an earth lead
To prevent hum, connect the earth lead to the ground
terminal on the receiver.
Tape deck or MD recorder
Receiver Tape deck or MD recorder
e Ge [9 Ci
eor exer
=
Where do I go next?
Go on to the next section to connect the speakers.
Speaker System Hookups
Overview
This section describes how to connect your speakers to
the receiver. Although front (left and right) speakers
are required, center and rear speakers are optional.
Adding center and rear speakers will enhance the
surround effects. Connecting an active woofer will
increase bass response (STR-DE515/DE415 only). For
specific locations of the terminals, see the illustration
below.
WOOFER (STR-
DES15 only)
Nr
MIX AUDIO OUT
(STR-DE415 only) FRONT SPEAKERS A
i pl
1
SURROUND
SPEAKER CENTER
r
SURROUND
SPEAKERS REAR
For optimum surround sound effect, place your
speakers as shown below.
Rear speaker
45°
a @
What cords will | need?
Speaker cord (not shpplied) (1 for each speaker)
[2] > Z (+)
o e
Twist the stripped ends of the cord about 2/3 inch (15 mm).
Be sure to match the speaker cord to the appropri
terminal on the components: + to + and — to — If the cords
are reversed, the sound will be distorted and will lack bass.
Hookups
Front speakers.
Front speaker à Front speaker
(R Receiver 7)
eo eo
Rear and center speakers
Rear speaker Rear speaker
(R) Receiver Center speaker (L)
e Se || ce
T e
Note (except STR-DES15)
Be sure to connect the both rear speakers (L and R).
No sound is heard if only one speaker is connected.
Active woofer (STR-DE515/DE415 only)
STR-DE515 STR-DE415
Receiver Active woofer Receiver Active woofer
T SET] Iz =
CS 6) $ EN
Wireless rear Speaker (STR-DES15 only)
* When using an optional Sony Wireless Speaker System,
connect the transmitter to the WIRELESS REAR SPEAKER
connector.
Note
* Do not connect any other component.
* Wireless rear speaker does not function under stereo
mode, DOLBY (3CH LOGIC) and C. STUDIO A/B (3CH
LOGIC) mode.
