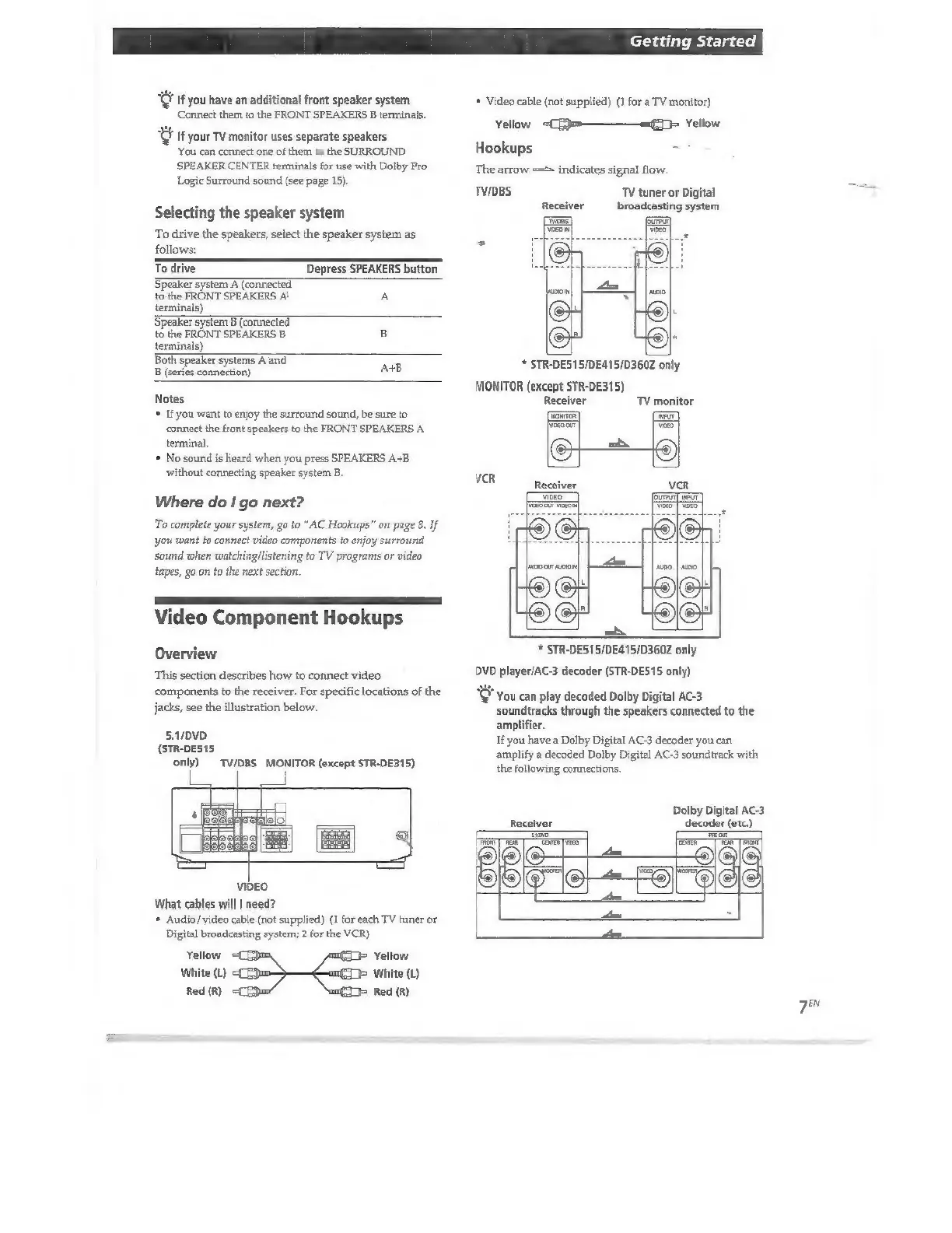

Sony STR-D360Z - Page 7

Getting Started
Y if you have an additional front speaker system
Connect them to the FRONT SPEAKERS B terminals.
Y if your TV monitor uses separate speakers
You can connect one of them to the SURROUND
SPEAKER CENTER terminals for use with Dolby Pro
Logic Surround sound (see page 15).
Selecting the speaker system
To drive the speakers, select the speaker system as
follows:
To drive
Speaker system A (connected
to the FRONT SPEAKERS A\ A
terminals)
Speaker system B (connected
to the FRONT SPEAKERS B B
terminals)
Both speaker systems À and
B (series connection)
Depress SPEAKERS button
A+B
Notes
* Ifyou want to enjoy the surround sound, be sure to
connect the front speakers to the FRONT SPEAKERS A
terminal.
* No sound is heard when you press SPEAKERS A+B
without connecting speaker system B.
Where do I go next?
To complete your system, go to “AC Hookups” on page 8. If
you want to connect video components to enjoy surround
sound when watching/listening to TV programs or video
tapes, go on to the next section.
nnn en eee)
Video Component Hookups
Overview
This section describes how to connect video
components to the receiver. For specific locations of the
jacks, see the illustration below.
5.1/DVD
(STR-DE515
only TV/DBS MONITOR (except STR-DE315)
j
|
Ds
VIDEO
What cables will | need?
+ Audio/ video cable (not supplied) (1 for each TV tuner or
Digital broadcasting system; 2 for the VCR)
A
Yellow Yellow
White (L) = White (L)
Red (R) Red (R)
* Video cable (not supplied) (1 for a TV monitor)
Yellow -CE}=————=x€])= Yellow
Hookups =
The arrow = indicates signal flow.
TVIDBS TV tuner or Digital
Receiver broadcasting system
š "So MT z>
* STR-DE515/DE415/D360Z only
MONITOR (except STR-DE315)
Receiver TV monitor
ven Receiver VCR
* STR-DE515/DE415/D360Z only
DVD player/AC-3 decoder (STR-DE515 only)
"Q You can play decoded Dolby Digital AC-3
soundtracks through the speakers connected to the
amplifier.
If you have a Dolby Digital AC-3 decoder you can
amplify a decoded Dolby Digital AC-3 soundtrack with
the following connections.
Dolby Digital AC-3
Receiver decoder (etc.)
Bros
|
hr
7
