Sony STR-D365 - Exploded Views; Case and Front Panel Assembly

NOTE:
¢ Items marked “ * ” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
* The mechanical parts with no reference number
in the exploded views are not supplied.
SECTION 4
EXPLODED VIEWS
¢ Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
¢ Abbreviation
CND_: Canadian model

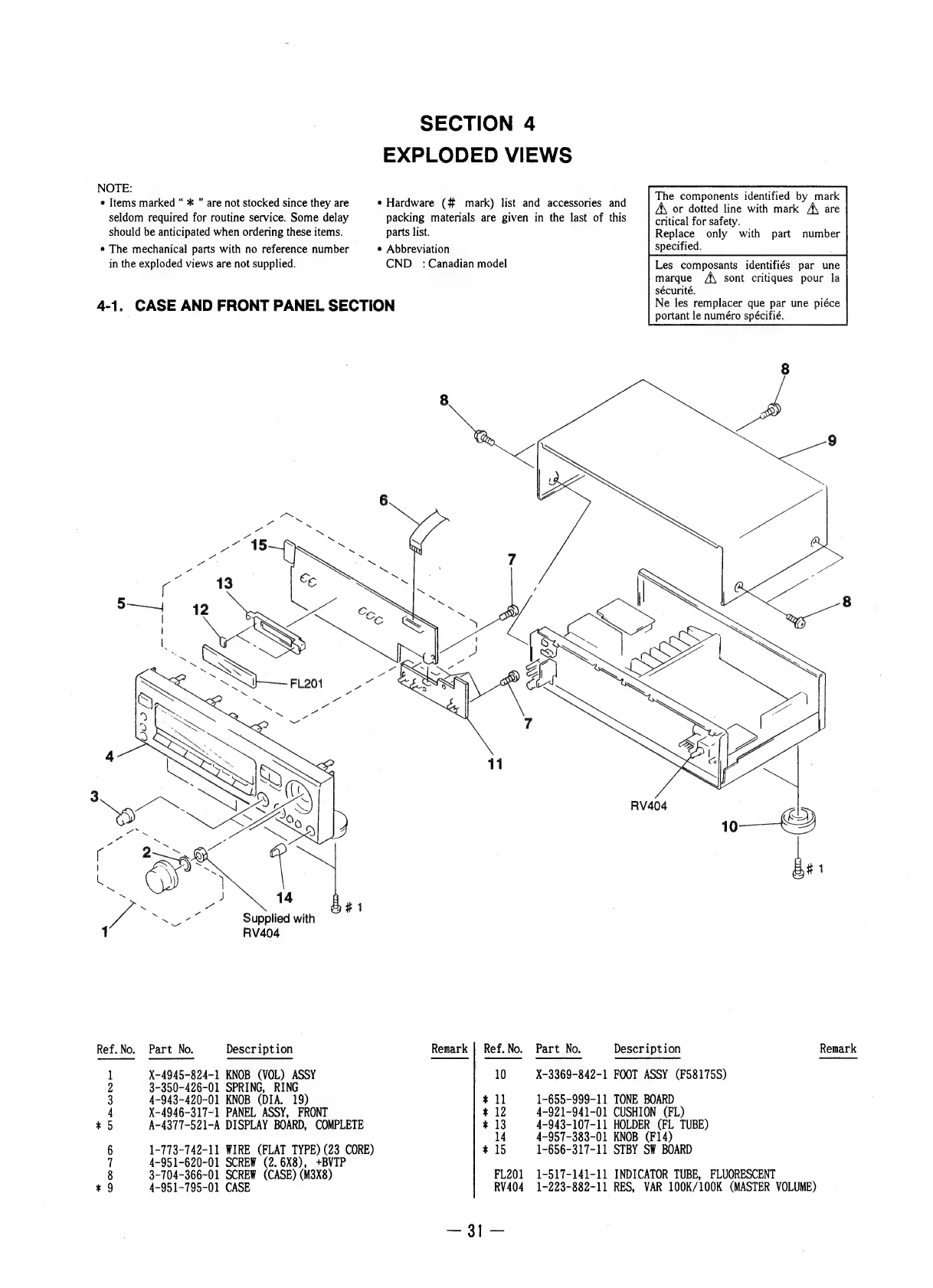

4-1. CASE AND FRONT PANEL SECTION
oy Z
l.
Supplied with
1 RV404
Ref.No. Part No. Description
X-4945-824-1 KNOB (VOL) ASSY
3-350-426-01 SPRING, RING
4-943-420-01 KNOB (DIA. 19)
X-4946-317-1 PANEL ASSY, FRONT
A-4377-521-A DISPLAY BOARD, COMPLETE
1-773-742-11 WIRE (FLAT TYPE) (23 CORE)
4~951-620-01 SCREW (2. 6X8), +BVTP
3-704-366-01 SCREW (CASE) (M3X8)
4-951-795-01 CASE
«
woce-1o On & GORD
*
Remark | Ref.No. Part No.
Description
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Remark
10 X-3369-842-1 FOOT ASSY (F58175S)
* 11 1-655-999-11 TONE BOARD
* 12 4-921-941-01 CUSHION (FL)
* 13 4-943-107-11 HOLDER (FL TUBE)
14 4-957-383-01 KNOB (F14)
#15
FL201
RV404
1-656-317-11 STBY SW BOARD
1-517-141-11 INDICATOR TUBE, FLUORESCENT
1-223-882-11 RES, VAR 100K/100K (MASTER VOLUME)
