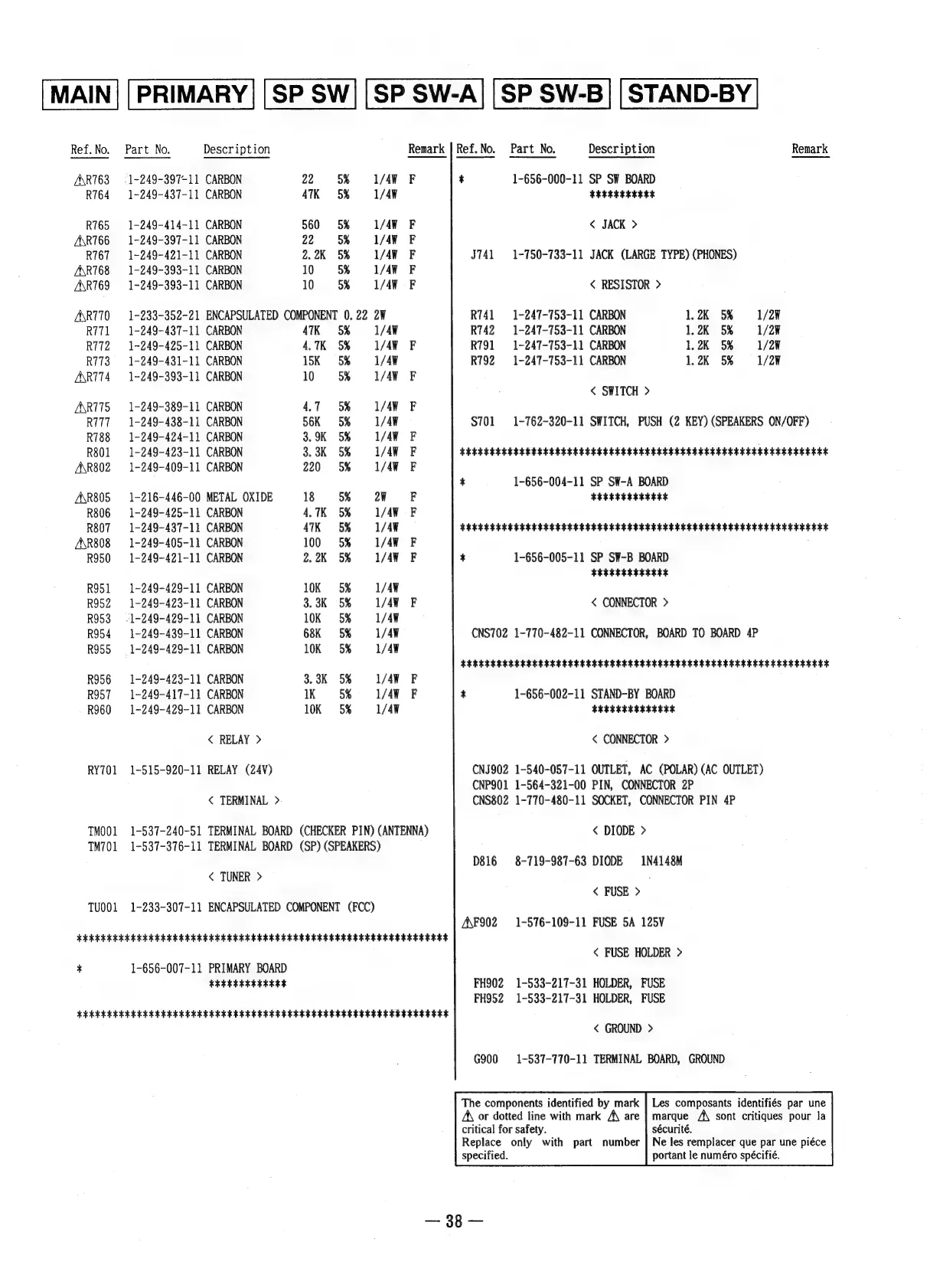

Sony STR-D365 - Page 25

Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
A\R763 =: 1-249-397-11 CARBON 22 5% 1/4¥ F * 1-656-000-11 SP SW BOARD
R764 1-249-437-11 CARBON ATK 5% 1/4¥ KEEEKEREEEE
R765 1-249-414-11 CARBON 560 5% 1/4¥ F < JACK >
A\R766 =1-249-397-11 CARBON 22 5% 1/4¥ F
R767 1-249-421-11 CARBON 2.2K 5% 1/48 F J741 1-750-733-11 JACK (LARGE TYPE) (PHONES)
A\R768 1-249-393-11 CARBON 10 5% 1/4¥ F
A\R769 1-249-393-11 CARBON 10 5% 1/44 F < RESISTOR >
A\RT7T0 —:1-233-352-21 ENCAPSULATED COMPONENT 0.22 2¥ R741 1-247-753-11 CARBON 1.2K 5% 1/2¥
R771 1-249-437-11 CARBON ATK 5% 1/4¥ R742 1-247-753-11 CARBON 1.2K 5% 1/2¥
R772 1-249-425-11 CARBON 4.7K 5% 1/4" F R791 1-247-753-11 CARBON 1.2K 5% 1/24
R773 1-249-431-11 CARBON 15K 5% 1/44 R792. = 1-247-753-11 CARBON 1.2K 5% 1/24
A\RT7T4. —-1-249-393-11 CARBON 10 5% 1/44 F
< SWITCH >
A\RT7T5 ~—-:1-249-389-11 CARBON 4.7 5% 1/4¥ F
R777 1-249-438-11 CARBON 56K 5% 1/4¥ S701 1-762-320-11 SWITCH, PUSH (2 KEY) (SPEAKERS ON/OFF)
R788 1-249-424-11 CARBON 3.9K 5% 1/4¥ F
R801 1-249-423-11 CARBON 3.3K 5% 1/4¥ F PARE ARE ERE EE EERE EEERERES EERE EERE EERE RE EEREE EERE ER ESEE ER EEEEE
A\R802 1-249-409-11 CARBON 220 5% 1/4¥ F
* 1-656-004-11 SP SW-A BOARD
A\R805 =1-216-446-00 METAL OXIDE 18 5% 2¥ F SEESRESEEEEEE
R806 1-249-425-11 CARBON 4.7K 5% 1/4¥ F
R807 1-249-437-11 CARBON ATK 5% 1/4¥ EKEKEKERESESERESESSEELESESESEEEEEEERERERE ESE E ESE EAE EEE EER ERES
A\R808 =1-249-405-11 CARBON 100 5% 1/4¥ F
R950 1-249-421-11 CARBON 2.2K 5% 1/4¥ F * 1-656-005-11 SP SW-B BOARD
HREKREREKREEE
R951 1-249-429-11 CARBON 10K 5% 1/4¥
R952 1-249-423-11 CARBON 3.3K 5% 1/4¥ F < CONNECTOR >
R953. =: 1-249-429-11 CARBON 10K 5% 1/49
R954. 1-249-439-11 CARBON 68K 5% 1/4¥ CNS702 1-770-482-11 CONNECTOR, BOARD TO BOARD 4P
R955 = 1-249-429-11 CARBON 10K 5% 1/4¥
petstststtttesitittetssssssiitittstsstttiesssstecttsstsete sss ts
R956 1-249-423-11 CARBON 3.3K 5% 1/4" F
R957. 1~-249-417-11 CARBON 1K 5% 1/4¥ F t 1-656-002-11 STAND-BY BOARD
R960 1-249-429-11 CARBON 10K 5% 1/4¥ KKKEKSEREEEERE
< RELAY > < CONNECTOR >
RY701 1-515-920-11 RELAY (24V) CNJ902 1-540-057-11 OUTLET, AC (POLAR) (AC OUTLET)
CNP901 1-564-321-00 PIN, CONNECTOR 2P
< TERMINAL > CNS802 1-770-480-11 SOCKET, CONNECTOR PIN 4P
TM001 1-537-240-51 TERMINAL BOARD (CHECKER PIN) (ANTENNA) < DIODE >
TM701 1-537-376-11 TERMINAL BOARD (SP) (SPEAKERS)
D816 © 8-719-987-63 DIODE 1N4148M
< TUNER >
< FUSE >
TU0O1 1-233-307-11 ENCAPSULATED COMPONENT (FCC)
A\F902 = -1-576-109-11 FUSE 5A 125V
AAR RR RR RARER RARER ER RR RARE RE RE RE EE EERE ER
< FUSE HOLDER >
x 1-656-007-11 PRIMARY BOARD
PREREE REE EEES FH902 1-533-217-31 HOLDER, FUSE
FH952 1-533-217-31 HOLDER, FUSE
RARER RRR EE ARERR EERE RRA ER ERE RAR ERE EE ER ER ERE EE ERE
< GROUND >
G900 1-537-770-11 TERMINAL BOARD, GROUND
The components identified by mark | Les composants identifiés par une
A\ or dotted line with mark A\ are | marque A\ sont critiques pour la
critical for safety. sécurité.
Replace only with part number j Ne Jes remplacer que par une piéce
specified. portant le numéro spécifié.
