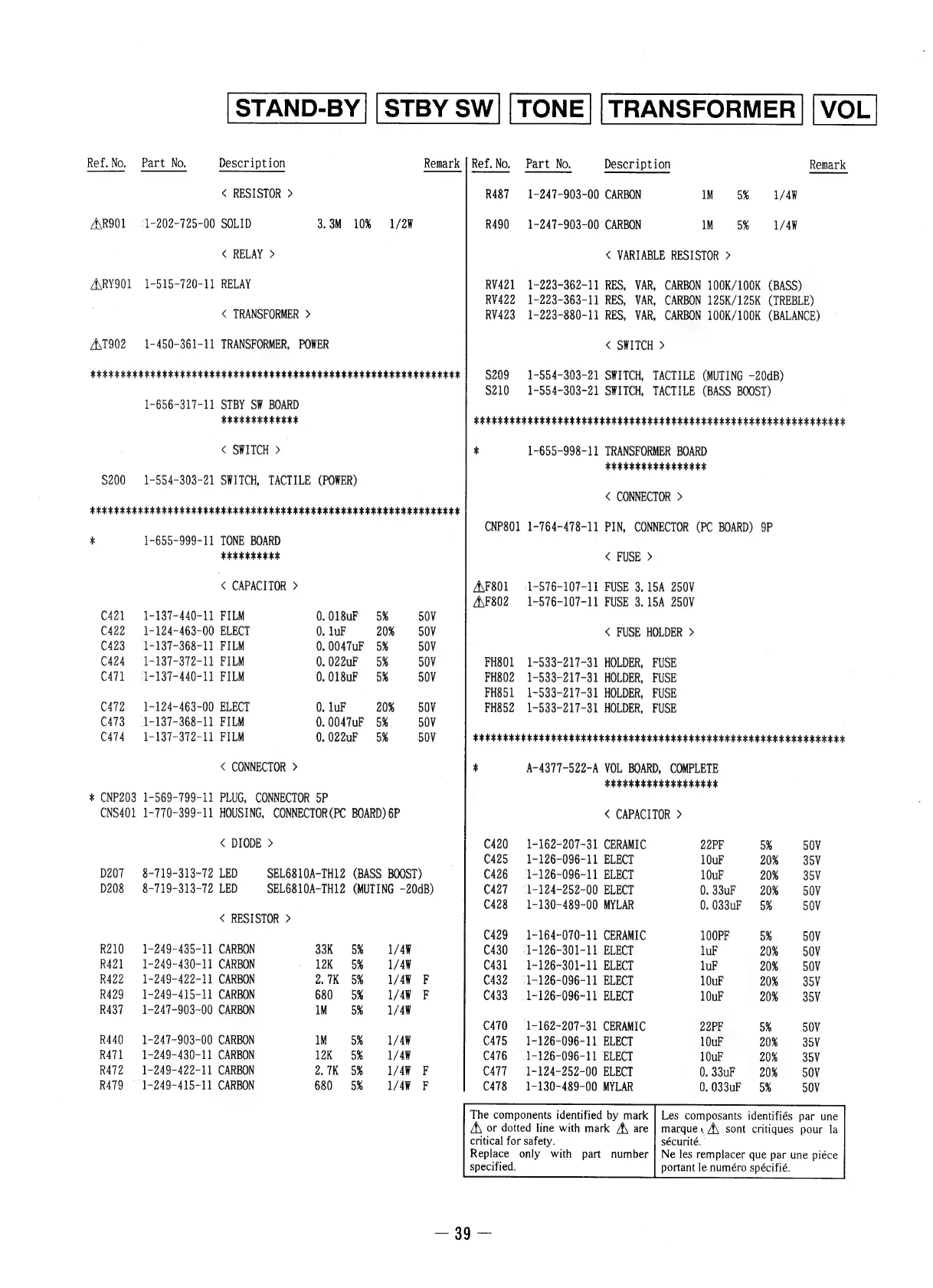

Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
< RESISTOR > R487 =1-247-903-00 CARBON 1M 5% 1/4¥
A\R901 =: 1-202-725-00 SOLID 3. 3M 10% 1/2¥ R490 1-247-903-00 CARBON 1M 5% 1/4¥
« RELAY > < VARIABLE RESISTOR >
A\RY901 1-515-720-11 RELAY RV421 1-223-362-11 RES, VAR, CARBON 100K/100K (BASS)
RV422 1-223-363-11 RES, VAR, CARBON 125K/125K (TREBLE)
< TRANSFORMER > RV423 1-223-880-11 RES, VAR, CARBON 100K/100K (BALANCE)
A\T902 = 1-450-361-11 TRANSFORMER, POWER < SWITCH >
FORE IIR EER AD ER OR BAR RR ARR RAR AEE ARBRE RR ERE | —-S209 1-554-303-21 SWITCH, TACTILE (MUTING -20dB)
$210 1-554-303-21 SWITCH, TACTILE (BASS BOOST)
1-656-317-11 STBY SW BOARD
KEKKKREREREKS HRKKAKERAKKAR ERE RARER ERKEA ERR RAE RE REE ARARARERE AREER RARER
< SWITCH > k 1-655-998-11 TRANSFORMER BOARD
KEEKAEKERKEAK RE EK
$200 1-554-303-21 SWITCH, TACTILE (POWER)
< CONNECTOR >
Po PSSST STS SS SESS SSS PETS SSS SSss FES sssssssssssessssossssossstssss
CNP801 1-764-478-11 PIN, CONNECTOR (PC BOARD) 9P
k 1-655-999-11 TONE BOARD
KREKAEKERE « FUSE >
< CAPACITOR > A\F801 =: 1-576-107-11 FUSE 3.15A 250V
A\F802 = 1-576-107-11 FUSE 3. 15A 250V
C421 = 1-137-440-11 FILM 0.018uF 5% 50V
C422 ~=1-124-463-00 ELECT 0. luF 20% 50V < FUSE HOLDER >
C423) =: 1-137-368-11 FILM 0.0047uF 5% 50V
C424 = 1-137-372-11 FILM 0.022uF 5% 50V FH801 1-533-217-31 HOLDER, FUSE
C471 =: 1-137-440-11 FILM 0.018uF 5% 50V FH802 1-533-217-31 HOLDER, FUSE
FH851 1-533-217-31 HOLDER, FUSE
C472 = 1-124~463-00 ELECT 0. luF 20% 50V FH852 1-533-217-31 HOLDER, FUSE
C473) ~=—s- 1-137-368-11 FILM 0. 0047uF 5% 50V
C474. 1-137-372-11 FILM 0.022uF 5% 50V peststietietstrstetestsiterrtt steer eet ister etesssse ters tet se tt
< CONNECTOR > k A-4377-522-A VOL BOARD, COMPLETE
KKRERKEREKEREREER ES
* CNP203 1-569-799-11 PLUG, CONNECTOR 5P
CNS401 1~770-399-11 HOUSING, CONNECTOR(PC BOARD) 6P < CAPACITOR >
< DIODE > C420 ~=1-162-207-31 CERAMIC 22PF 5% 50V
C425 = 1-126-096-11 ELECT 10uF 20% 35V
D207 8-719-313-72 LED SEL6810A-TH12 (BASS BOOST) C426 =: 1-126-096-11 ELECT 10uF 20% 35V
D208 8-719-313-72 LED SEL6810A-TH12 (MUTING -20dB) C427 =: 1-124-252-00 ELECT 0. 33uF 20% 50V
C428 =1-130-489-00 MYLAR 0.033uF 5% 50V
< RESISTOR >
C429 ~=1-164-070-11 CERAMIC 100PF 5% 50V
R210 1-249-435-11 CARBON 33K = 45% 1/4¥ C430 =. 1-126-301-11 ELECT luF 20% 50V
R421 1-249-430-11 CARBON - 12K 5% 1/4¥ C431) =: 1-126-301-11 ELECT luF 20% 50V
R422 1-249-422-11 CARBON 2.7K 5% 1/4¥ F C432) =: 1-126-096-11 ELECT 10uF 20% 35V
R429 = 1-249-415-11 CARBON 680 5% 1/4¥ F C433 = 1-126-096-11 ELECT 10uF 20% 35V
R437 =1-247-903-00 CARBON 1M 5% 1/4¥
C470 =: 1-162-207-31 CERAMIC 22PF 5% 50V
R440 1-247-903-00 CARBON 1M 5% 1/4¥ C475 =: 1-126-096-11 ELECT 10uF 20% 35V
R471 1-249-430-11 CARBON 12K 5% 1/4¥ C476 =. 1-126-096-11 ELECT 10uF 20% 35V
R472 1-249-422-11 CARBON 2.7K 5% 1/4¥ F C477 =: 1-124-252-00 ELECT 0. 33uF 20% 50V
R479 = 1-249-415-11 CARBON 680 5% 1/4¥ F C478 1-130-489-00 MYLAR 0.033uF 5% 50V
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque, A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
