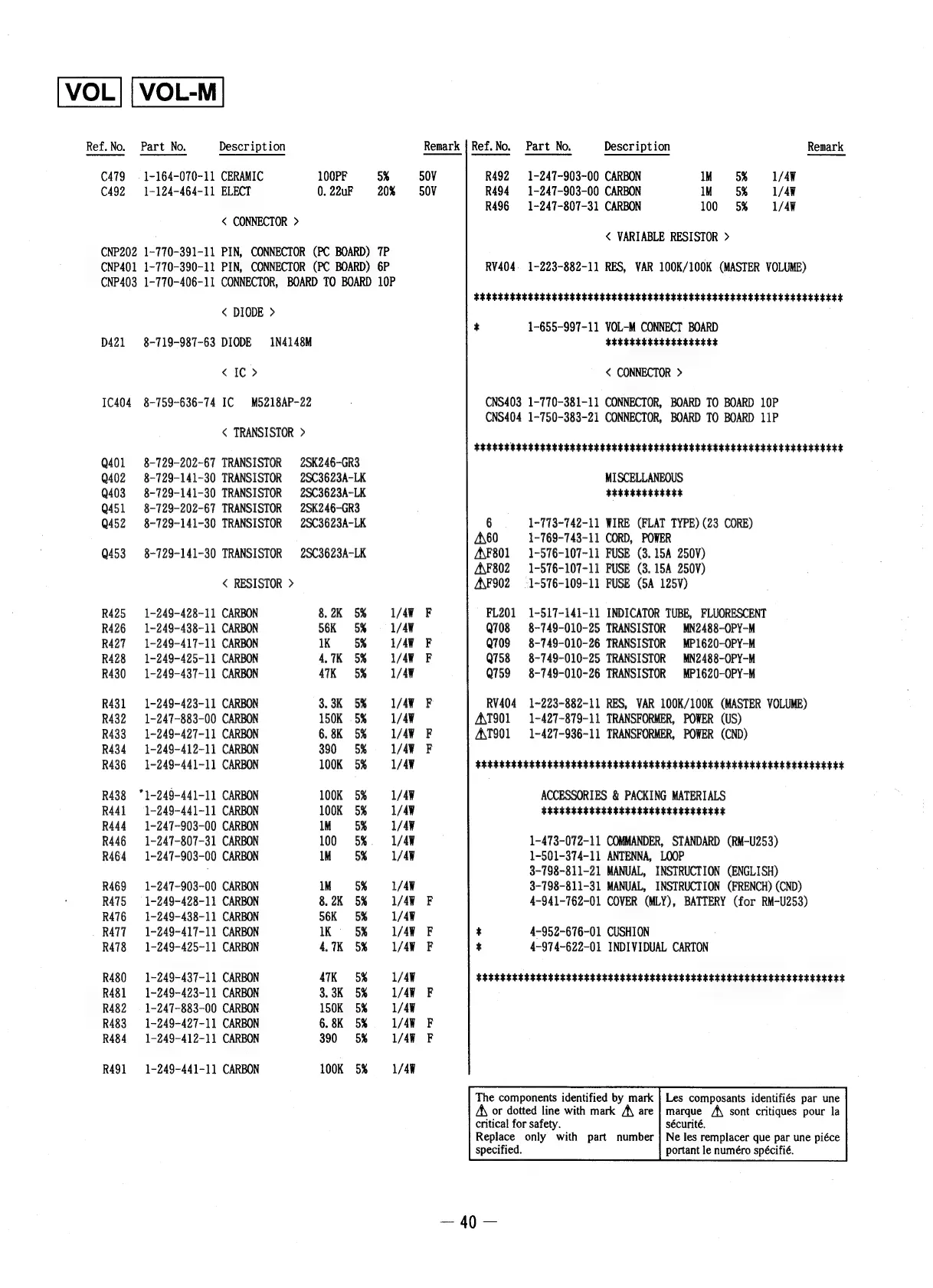

Sony STR-D365 - Page 27

Ref.No. Part No. Description
C479 = 1-164-070-11 CERAMIC 100PF 5%
C492 1-124-464-11 ELECT 0. 22uF 20%
< CONNECTOR >
CNP202 1-770-391-11 PIN, CONNECTOR (PC BOARD) 7P
CNP401 1-770-390-11 PIN, CONNECTOR (PC BOARD) 6P
CNP403 1-770-406-11 CONNECTOR, BOARD TO BOARD 10P
< DIODE >
D421 8-719-987-63 DIODE 1N4148M
< IC >
1C404 8-759-636-74 IC M5218AP-22
< TRANSISTOR >
Q401 8-729-202-67 TRANSISTOR 2SK246-GR3
Q402 8-729-141-30 TRANSISTOR 2SC3623A-LK
0403 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q451 8-729-202-67 TRANSISTOR 2SK246-GR3
0452 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q453 8-729-141-30 TRANSISTOR 2SC3623A-LK
< RESISTOR >
R425 1-249-428~11 CARBON 8.2K 5% 1/48
R426 1-249-438-11 CARBON 56K 5% OL/4W
R427 1-249-417-11 CARBON 1K 5% 1/49
R428 1-249-425-11 CARBON 47K 5% 1/49
R430 1-249-437-11 CARBON 47K 5% OL/4W
R431 1-249-423-11 CARBON 3.3K 5% 1/4W
R432 1-247-883-00 CARBON 150K 5% 1/4¥
R433 1-249-427-11 CARBON 6.8K 5% 1/4¥
R434 1-249-412-11 CARBON 390 5% 1/48
R436 1-249-441-11 CARBON 100K 5% 1/49
R438 °1-249-441-11 CARBON 100K 5% 1/49
R441 1-249-441-11 CARBON 100K 5% 1/4¥
R444 1-247-903-00 CARBON IM 5% OL/4W
R446 1-247-807-31 CARBON 100 5%. 1/4¥
R464 1-247-903-00 CARBON IM 5K sOL/AW
R469 1-247-903-00 CARBON iM 5% «1/48
R475 1-249-428-11 CARBON 8.2K 5% 1/49
R476 1-249-438-11 CARBON 56K 5% )OL/4W
R477 1-249-417-11 CARBON 1K 5% sOL/4W
R478 1-249-425-11 CARBON 47K 5% (1/4¥
R480 1-249-437-11 CARBON 47K 5% 1/49
R481 1-249-423-11 CARBON 3.3K 5% 1/49
R482 1-247-883-00 CARBON 150K 5% 1/4W
R483 1-249-427-11 CARBON 6.8K 5% 1/4¥
R484 1-249-412-11 CARBON 390 5% 1/4¥
R491 1-249-441-11 CARBON 100K 5% 1/49
Remark | Ref. No.
50V
50V
vr} rr
Part No. Description Remark
R492 1-247-903-00 CARBON 1M 5% 1/4¥
R494 1-247-903-00 CARBON 1M 5% 1/4¥
R496 =1-247-807-31 CARBON 100 5% 1/4¥
< VARIABLE RESISTOR >
RV404- 1-223-882-11 RES, VAR 100K/100K (MASTER VOLUME)
SESERKESERESEERESE REE ES ERTS ERR SEES EERE SESE EE EERE EERE ES ELE ESS
+ 1-655-997-11 VOL-M CONNECT BOARD
FHEEEEEREEEEEE REE ES
< CONNECTOR >
CNS403 1-770-381-11 CONNECTOR, BOARD TO BOARD 10P
CNS404 1-750-383-21 CONNECTOR, BOARD TO BOARD 11P
KKKEREREEREERE EERE ERE EERE REE EEE ERESESES ES ESSER EES ESS SEES E REELS
MISCELLANEOUS
SEEREKERERELE
6 1-773-742-11 WIRE (FLAT TYPE) (23 CORE)
A\60 1-769-743-11 CORD, POWER
A\F801_ —-1-576-107-11 FUSE (3. 15A 250V)
A\F802 —-:1-576-107-11 FUSE (3. 15A 250V)
AF902 =: 1-576-109-11 FUSE (5A 125V)
FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT
Q708 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q709 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q758 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q759 8-749-010-26 TRANSISTOR MP1620-OPY-M
RV404 1~-223-882-11 RES, VAR 100K/100K (MASTER VOLUME)
A\T901_ —-:1-427-879-11 TRANSFORMER, POWER (US)
A\T901 —-1-427-936-11 TRANSFORMER, POWER (CND)
FEEEERESERES ERS EESAL ESTAS ESSERE ESSE SEES EERE EERE SESE SE SESE REESE
ACCESSORIES & PACKING MATERIALS
KEEEESASERESERE SELES ESSERE EERE
1-473-072-11 COMMANDER, STANDARD (RM-U253)
1-501-374-11 ANTENNA, LOOP
3-798-811-21 MANUAL, INSTRUCTION (ENGLISH)
3-798-811-31 MANUAL, INSTRUCTION (FRENCH) (CND)
4-941-762-01 COVER (MLY), BATTERY (for RM-U253)
*
4-952-676-01 CUSHION
4-974-622-01 INDIVIDUAL CARTON
+
FEEEKEESESSESELTEER TEES A SEERA ESE SES ESS ESSER ESSERE ESE EEE ESSER ETS
The components identified by mark
A\ or dotted line with mark A\ are
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité,
Ne les remplacer que par une piéce
portant le numéro spécifié.
critical for safety.
Replace only with part number
specified.
