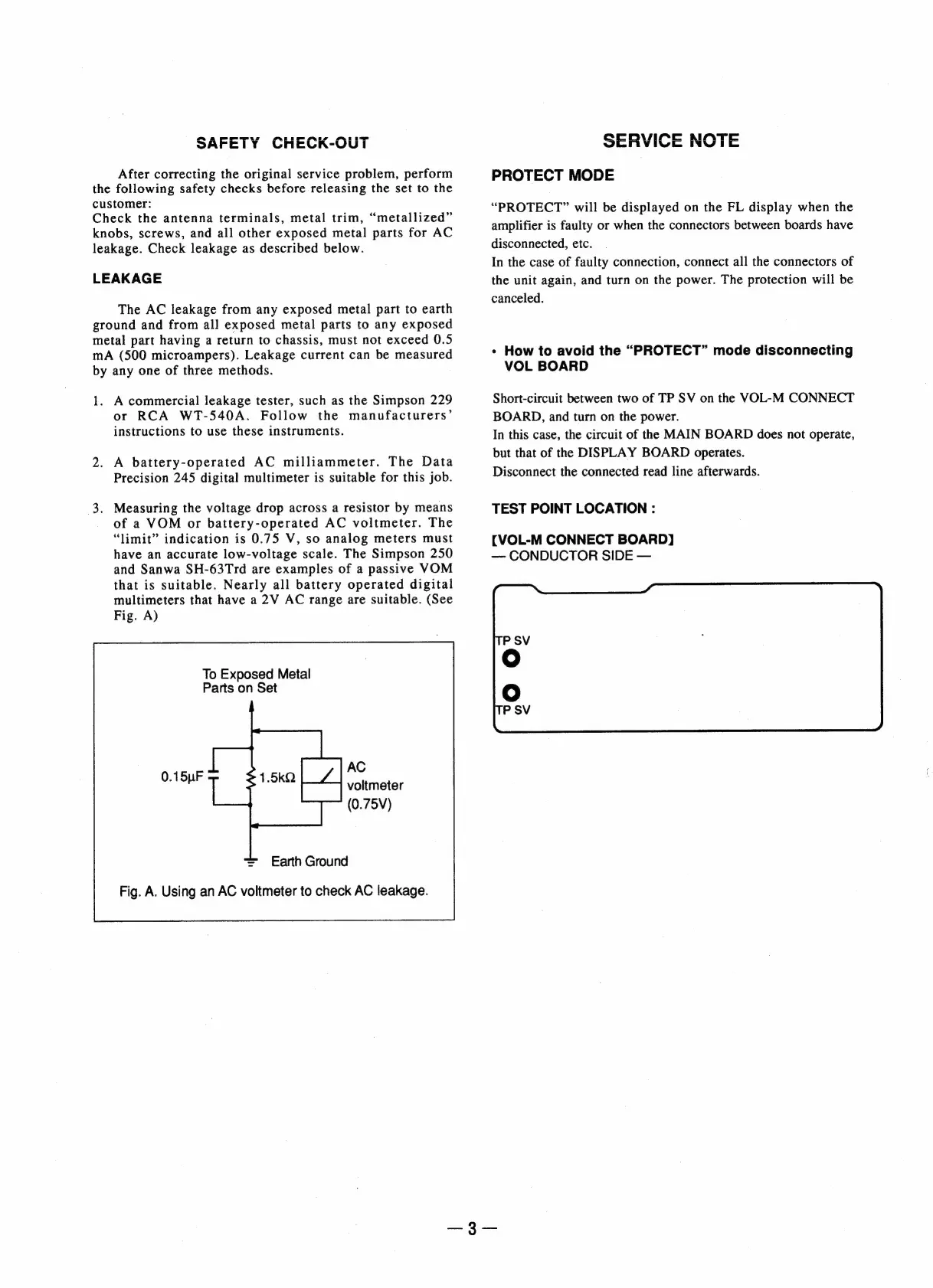

SAFETY
CHECK-OUT
After
correcting
the
original
service
problem,
perform
the
following
safety
checks
before
releasing
the
set
to
the
customer:
Check
the
antenna
terminals,
metal
trim,
“metallized”
knobs,
screws,
and
all
other
exposed
metal
parts
for
AC
leakage.
Check
leakage
as
described
below.
LEAKAGE
The
AC
leakage
from
any
exposed
metal
part
to
earth
ground
and
from
all
exposed
metal
parts
to
any
exposed
metal
part
having
a
return
to
chassis,
must
not
exceed
0.5
mA
(500
microampers).
Leakage
current
can
be
measured
by
any
one
of
three
methods.
1.
A
commercial
leakage
tester,
such
as
the
Simpson
229
or
RCA
WT-540A.
Follow
the
manufacturers’
instructions
to
use
these
instruments.
2.
A
battery-operated
AC
milliammeter.
The
Data
Precision
245
digital
multimeter
is
suitable
for
this
job.
3.
Measuring
the
voltage
drop
across
a
resistor
by
means
of
a
VOM
or
battery-operated
AC
voltmeter.
The
“limit”
indication
is
0.75
V,
so
analog
meters
must
have
an
accurate
low-voltage
scale.
The
Simpson
250
and
Sanwa
SH-63Trd
are
examples
of
a
passive
VOM
that
is
suitable.
Nearly
all
battery
operated
digital
multimeters
that
have
a
2V
AC
range
are
suitable.
(See
Fig.
A)
To
Exposed
Metal
Parts
on
Set
AC
aa
voltmeter
(0.75V)
=
Earth
Ground
Fig.
A.
Using
an
AC
voltmeter
to
check
AC
leakage.
SERVICE
NOTE
PROTECT
MODE
“PROTECT”
will
be
displayed
on
the
FL
display
when
the
amplifier
is
faulty
or
when
the
connectors
between
boards
have
disconnected,
etc.
In
the
case
of
faulty
connection,
connect
all
the
connectors
of
the
unit
again,
and
turn
on
the
power.
The
protection
will
be
canceled.
*
How
to
avoid
the
“PROTECT”
mode
disconnecting
VOL
BOARD
Short-circuit
between
two
of
TP
SV
on
the
VOL-M
CONNECT
BOARD,
and
turn
on
the
power.
In
this
case,
the
circuit
of
the
MAIN
BOARD
does
not
operate,
but
that
of
the
DISPLAY
BOARD
operates.
Disconnect
the
connected
read
line
afterwards.
TEST
POINT
LOCATION
:
[VOL-M
CONNECT
BOARD)
CONDUCTOR
SIDE
oO
0;
0
<
